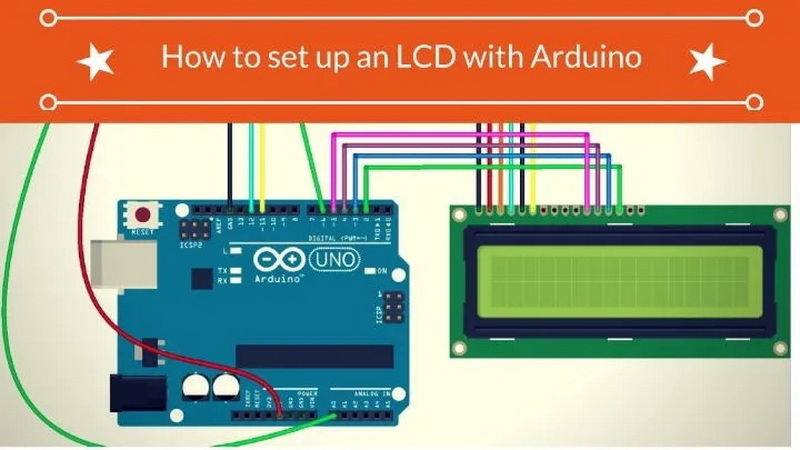

The Arduino Uno, combined with an LCD display, opens up a world of possibilities for creating interactive projects and displaying real-time information. In this comprehensive guide, we'll explore how to connect and use the popular 1602A LCD shield with an Arduino Uno board. Whether you're a beginner or an experienced maker, this tutorial will provide you with the knowledge and skills to incorporate LCD displays into your Arduino projects effectively.
The 1602A LCD shield is a popular choice for Arduino projects due to its ease of use and compatibility. This shield features a 16x2 character LCD display, meaning it can show 16 characters across 2 lines. It also includes a set of buttons that can be used for user input, making it a versatile addition to any Arduino setup.
- 16x2 character display
- Backlight for improved visibility
- Onboard potentiometer for contrast adjustment
- Multiple buttons for user input
- Compatible with standard Arduino libraries
The LCD 1602A shield simplifies the process of connecting an LCD to your Arduino by eliminating the need for individual wire connections. It's designed to stack directly on top of the Arduino Uno, utilizing the board's pins efficiently.
Before we begin, make sure you have the following components:
- Arduino Uno board
- LCD 1602A shield
- USB cable for Arduino
- Jumper wires (if needed)
It's important to ensure that you have a genuine Arduino Uno board and a compatible LCD 1602A shield. While there are many clones and variations available, using authentic components can help avoid compatibility issues and ensure the best performance.
Ensure your Arduino Uno is unplugged from any power source before starting the connection process. This safety measure prevents any accidental short circuits or damage to the components.
The LCD 1602A shield is designed to stack directly on top of the Arduino Uno. Carefully align the pins of the shield with the headers on the Arduino board. Take note of the pin layout on both the shield and the Arduino to ensure proper alignment.
Gently press the LCD shield onto the Arduino Uno, ensuring all pins are properly seated. The shield should fit snugly on top of the Arduino board. Apply even pressure to avoid bending any pins during the connection process.
Verify that all pins are correctly aligned and there are no bent pins. A proper connection is crucial for the shield to function correctly. Inspect the connection from all angles to ensure a secure fit.

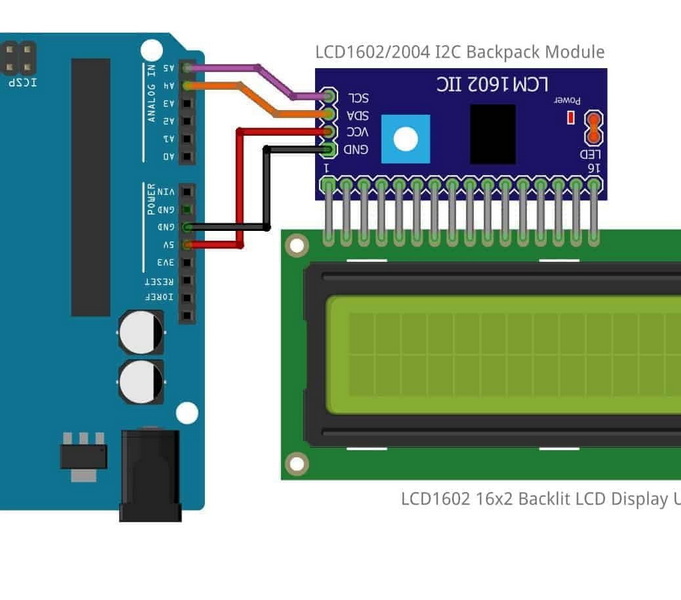

To better understand how the LCD 1602A shield interacts with the Arduino Uno, it's helpful to know the pin connections:
- Digital pins 4-7: Used for data communication with the LCD
- Digital pin 8: RS (Register Select) pin
- Digital pin 9: Enable pin
- Digital pin 10: Backlight control
- Analog pin 0: Connected to the shield's buttons
This pin layout allows the Arduino to control the LCD display and read input from the buttons efficiently.
The LCD 1602A shield draws power directly from the Arduino Uno when connected. However, it's important to consider the power requirements, especially when using the backlight feature. The backlight can significantly increase power consumption, which may be a concern for battery-powered projects.
If you're planning to use the LCD in a low-power application, you can control the backlight programmatically to conserve energy. Some shields also include a jumper or switch to disable the backlight entirely.
Now that the hardware is connected, let's explore how to program the Arduino to display text on the LCD.
To interact with the LCD shield, we'll use the LiquidCrystal library. This library is typically included with the Arduino IDE, but it's always good to ensure you have the latest version.
The LiquidCrystal library provides several key functions for controlling the LCD:
- `lcd.begin(16, 2)`: Initializes the LCD, specifying the dimensions (16 columns, 2 rows)
- `lcd.print("Text")`: Displays text on the LCD
- `lcd.setCursor(column, row)`: Sets the cursor position for text display
- `lcd.clear()`: Clears the LCD screen
These functions form the foundation for most LCD projects and allow you to display and update information easily.
One common issue when setting up an LCD display is poor visibility due to incorrect contrast settings. The LCD 1602A shield typically includes a small potentiometer that allows you to adjust the contrast. Locate this potentiometer on the shield (usually near the LCD screen) and use a small screwdriver to adjust it while the display is powered on. Slowly turn the potentiometer until the text becomes clearly visible against the background.
If you encounter any problems, here are some common issues and their solutions:
1. No display on LCD: Check the contrast adjustment potentiometer on the shield. If adjusting the contrast doesn't help, verify your code and ensure the library is correctly installed.
2. Garbled text: This can occur if the library is not correctly installed or if there are issues with the pin connections. Double-check your code and make sure the shield is properly seated on the Arduino.
3. Buttons not responding: Ensure the shield is properly seated on the Arduino. Check your code to make sure you're correctly reading the analog input for the buttons.
4. Display freezing or behaving erratically: This could be due to power issues. Try using an external power supply for your Arduino if you're currently powering it via USB.
5. Backlight not working: Check if there's a separate control for the backlight on your shield. Some shields have a jumper or switch to enable/disable the backlight.
The buttons on the LCD 1602A shield provide a simple way to add user input to your projects. These buttons are typically connected to a single analog pin through a resistor network. By reading the analog value, you can determine which button is pressed.
To use the buttons effectively:
1. Use `analogRead()` to get the button state
2. Create threshold values to identify each button
3. Implement debouncing to prevent false readings
The LCD allows you to create and display custom characters, which can be useful for creating icons, special symbols, or simple graphics. You can define up to eight custom characters at a time.
To create a custom character:
1. Design your character on a 5x8 pixel grid
2. Convert the design to a byte array
3. Use `lcd.createChar()` to store the character
4. Display the character using `lcd.write()`
Custom characters can greatly enhance the visual appeal and functionality of your LCD projects.
For messages that are longer than 16 characters, you can implement a scrolling text effect. This involves:
1. Storing the full message in a string
2. Displaying a 16-character substring
3. Shifting the substring one character at a time
4. Using `delay()` to control the scrolling speed
Scrolling text allows you to display more information than would typically fit on the LCD screen.
When using the LCD 1602A shield in battery-powered projects, power consumption becomes a crucial factor. Here are some tips to optimize power usage:
1. Turn off the backlight when not needed
2. Use sleep modes for the Arduino when possible
3. Update the display only when necessary
4. Consider using a power-efficient Arduino board like the Pro Mini for long-term deployments
By implementing these strategies, you can significantly extend the battery life of your LCD projects.
Once you're comfortable with the basics of using the LCD 1602A shield, you can explore more advanced applications:
Combine the LCD with sensors to create a data logging system. Display real-time sensor readings and use the shield's buttons to cycle through different data views.
Create multi-level menus for complex projects. Use the buttons to navigate through options and select settings.
Develop simple games that use the LCD for display and the buttons for controls. This is an excellent way to practice both programming and hardware interfacing skills.
Connect your Arduino and LCD setup to the internet to display data from online sources or control remote devices.
To ensure the longevity of your LCD 1602A shield and Arduino setup:
1. Keep the components clean and free from dust
2. Avoid exposing the setup to extreme temperatures or humidity
3. Handle the shield carefully to prevent bent pins or damage to the LCD screen
4. Store the setup in an anti-static bag when not in use
Regular maintenance will help keep your project functioning reliably over time.
Connecting an LCD 1602A shield to your Arduino Uno opens up a world of possibilities for creating interactive and informative projects. With the ability to display text, create custom characters, and utilize buttons for input, this combination is perfect for both beginners and advanced makers alike. Remember to double-check your connections, use the correct library, and experiment with different display options to make the most of your LCD shield.
As you become more comfortable with using the LCD 1602A shield, don't be afraid to push the boundaries of what you can create. The skills you develop working with this display can be applied to more complex projects and even professional applications. Keep exploring, experimenting, and sharing your creations with the Arduino community!
If your LCD isn't displaying any text, first check the contrast adjustment on the shield. There's usually a small potentiometer that controls the contrast. Adjust it slowly until text becomes visible. Also, verify that your code is correctly initializing the LCD and that all connections are secure.
To display special characters, you can use the LCD's built-in character set or create custom characters. For built-in characters, refer to the ASCII table and use the appropriate code. For custom characters, use the `createChar()` function to define the character, then use `write()` to display it.
Yes, you can power the Arduino Uno and LCD shield from a battery. Use a battery pack that provides 7-12V DC. Connect the positive terminal to the Vin pin and the negative to GND. Make sure your battery can supply enough current for both the Arduino and the LCD backlight.
The buttons on the LCD shield are typically connected to analog pins. You can read their values using `analogRead()`. Each button will correspond to a specific voltage range. Write a function to interpret these values and determine which button was pressed.
Yes, you can use larger LCD displays with Arduino Uno. However, you may need to use a different library and connection method. For example, 20x4 LCDs are popular and can be used with the same LiquidCrystal library. For even larger displays, you might need to switch to a graphical LCD or OLED display, which would require different libraries and possibly more pins.
