Arduino LCD displays are versatile components that allow you to showcase text, numbers, and even custom characters in your projects. Whether you're building a temperature sensor, a digital clock, or a complex control system, integrating an LCD can significantly enhance the user interface of your Arduino-based creations. This comprehensive guide will walk you through the process of coding an Arduino LCD display, covering everything from basic setup to advanced techniques.
To get started with an Arduino LCD display, you'll need the following components:
- Arduino board (e.g., Arduino Uno)
- LCD display (16x2 or 20x4 are common sizes)
- Potentiometer (10k ohm)
- Breadboard
- Jumper wires
Connecting your LCD display to the Arduino board requires careful attention to detail. The typical pin configuration includes connecting the LCD's RS pin to Arduino digital pin 12, the Enable pin to digital pin 11, and data pins D4 through D7 to Arduino pins 5, 4, 3, and 2 respectively. It's crucial to connect the LCD's R/W pin to ground and provide power to the VSS and VCC pins. The potentiometer is used to adjust the display contrast by connecting it to the LCD's V0 pin.
To begin programming your LCD, you'll need to include the LiquidCrystal library in your Arduino sketch. This library provides a simple interface for controlling the LCD. After including the library, you'll create an instance of the LiquidCrystal object, specifying the pins you've connected. In the setup function, you'll initialize the LCD with the number of columns and rows it has.

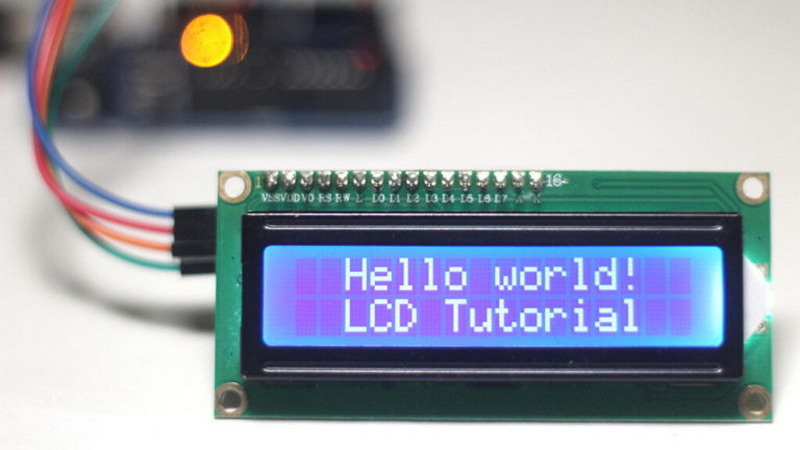

Displaying text on the LCD is straightforward using the print() function. You can display strings, numbers, and even individual characters. It's important to remember that most LCDs have limited space, so you'll need to manage your text carefully to ensure it fits within the display's boundaries.
The setCursor() function allows you to position text precisely on the LCD. This is particularly useful when creating more complex displays or when you want to update specific parts of the screen without clearing the entire display.

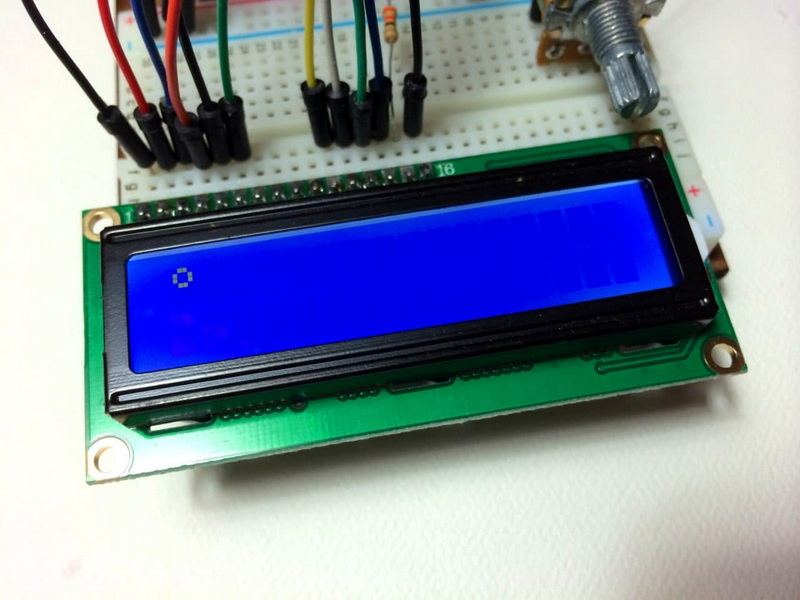

One of the most exciting features of LCD programming is the ability to create custom characters. This allows you to display simple graphics or symbols that aren't part of the standard character set. Custom characters are defined using an 8-byte array, where each byte represents a row of pixels in the character.
For messages that are longer than the LCD's width, implementing a scrolling text feature can be very useful. This involves repeatedly shifting the text and redisplaying it, creating the illusion of movement across the screen.
Using an LCD to display temperature readings from a sensor is a common and practical application. This project combines the LCD with a temperature sensor, such as the DHT11, to create a simple digital thermometer. The LCD continuously updates to show the current temperature, providing an easy-to-read display for environmental monitoring.
Creating a digital clock is another popular project that showcases the versatility of LCD displays. By utilizing the Arduino's internal timer, you can keep track of time and display it on the LCD. This project can be expanded to include features like date display, alarms, or even synchronization with external time sources.
To take your Arduino LCD projects to the next level, consider these enhancements:

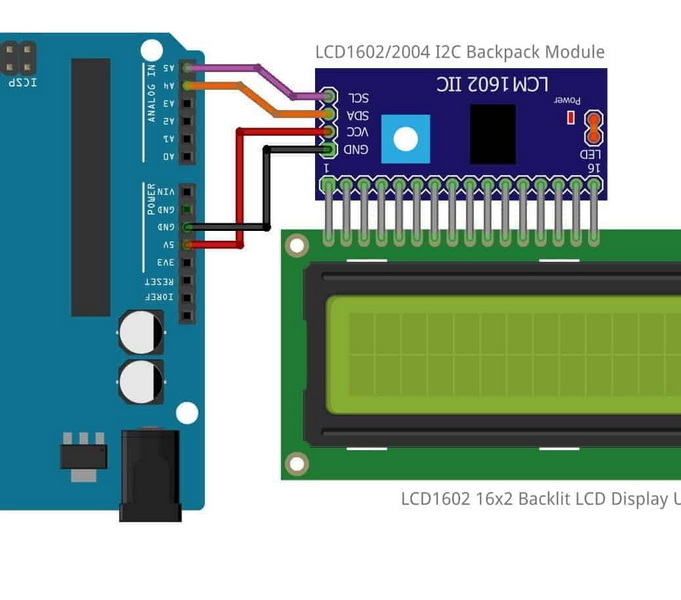

1. Use I2C LCD modules: These modules can significantly reduce the number of pins required on your Arduino board, freeing up digital pins for other components. I2C LCDs use only two pins for communication, making them ideal for projects with multiple components.
2. Implement button controls: Adding buttons to your LCD projects allows for user interaction. You can create menus, adjust settings, or trigger different display modes using button inputs. This turns your project from a simple display into an interactive device.
3. Combine with other sensors: LCDs pair well with various sensors. For example, you could create a weather station by combining temperature, humidity, and pressure sensors with an LCD display. Or, you could build a distance meter using an ultrasonic sensor and display the measurements on the LCD.
4. Experiment with different LCD types: While character LCDs are common, exploring other display types can open up new possibilities. OLED displays, for instance, offer higher contrast and can display graphics more easily. Graphical LCDs (GLCDs) provide even more flexibility for creating custom user interfaces.
5. Implement power-saving features: For battery-powered projects, implementing power-saving features is crucial. You can turn off the LCD backlight when it's not needed or put the Arduino into sleep mode, waking it periodically to update the display.
For projects that need to retain information even when powered off, you can use the Arduino's EEPROM (Electrically Erasable Programmable Read-Only Memory). This allows you to store data that persists between power cycles, which can be particularly useful for settings or calibration data that you want to display on the LCD.
While character LCDs are primarily designed for text, you can create simple animations by rapidly changing custom characters. This technique can be used to create progress bars, loading spinners, or even simple game graphics.
If your project needs to support multiple languages, you can create custom character sets for different alphabets. This requires careful management of the LCD's character memory, but it allows you to display text in various languages, including those with non-Latin alphabets.
LCDs can be used as display interfaces for a wide range of external devices. For example, you could create a display for a digital multimeter, showing voltage, current, and resistance measurements. Or, you could build a user interface for a home automation system, displaying status information and allowing control of various devices.
1. Efficient use of memory: Character LCDs have limited memory, so it's important to manage your display efficiently. Update only the parts of the display that change, rather than constantly clearing and redrawing the entire screen.
2. Debouncing inputs: When using buttons or switches with your LCD project, implement debouncing to prevent false triggers and ensure smooth operation of your user interface.
3. Error handling: Implement error checking and handling in your code. This could include checking if the LCD is properly connected and responding, and displaying error messages when issues arise.
4. Code organization: As your LCD projects become more complex, good code organization becomes crucial. Consider using functions for different display elements and separating your code into logical sections for easier maintenance and debugging.
5. Documentation: Always document your pin connections, custom character definitions, and any special functions you create. This will make it much easier to modify or expand your project in the future.
Mastering Arduino LCD programming opens up a world of possibilities for creating interactive and informative projects. From simple text displays to complex user interfaces, LCDs provide a versatile way to communicate information in your Arduino creations. By following this guide and experimenting with different techniques, you'll be well-equipped to incorporate LCD displays into your future projects.
The key to successful LCD programming lies in understanding the basics, exploring advanced techniques, and continuously pushing the boundaries of what's possible with these versatile displays. Whether you're building a home weather station, a custom gaming device, or an industrial control panel, the skills you've learned here will serve as a solid foundation for your Arduino LCD adventures.
4-bit mode uses fewer pins on the Arduino board but requires two write cycles to send a byte of data. 8-bit mode is faster but uses more pins. For most projects, 4-bit mode is sufficient and more common.
Yes, you can use multiple LCD displays with one Arduino. You'll need to create separate LiquidCrystal objects for each display and connect them to different sets of pins on the Arduino.
To save power, you can turn off the LCD backlight when it's not needed. Some LCD modules have a separate pin for backlight control. You can also put the Arduino to sleep and wake it up periodically to update the display.
While character LCDs are primarily designed for text, you can create simple graphics using custom characters. For more advanced graphics, consider using a graphical LCD or OLED display instead.
Many LCD displays support different character sets. You can use the lcd.write() function to display special characters by their ASCII codes. For different languages, you may need to use a custom character set or consider using a graphical LCD that supports bitmap fonts.
