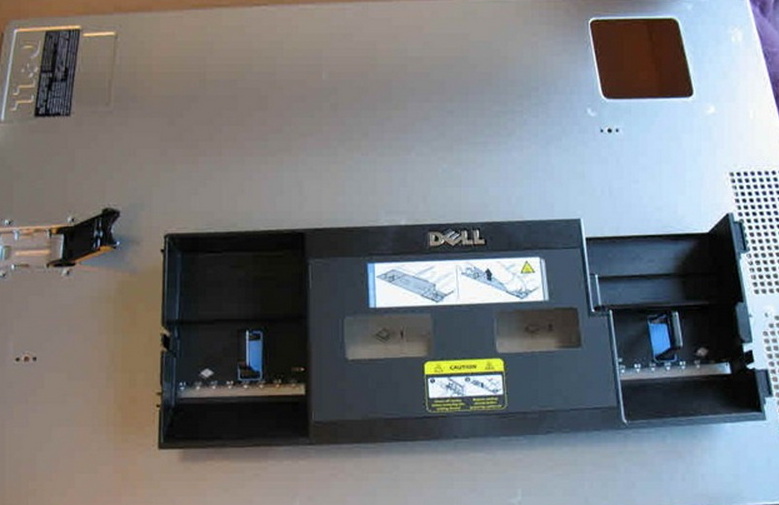

The Dell PowerEdge R710 server features a front-mounted LCD panel that provides essential system information and status messages[3]. This display is crucial for quickly diagnosing issues and monitoring the server's health without needing to connect a monitor directly. The LCD panel is a graphics display controlled by the BMC/ESM (Baseboard Management Controller/Embedded System Management)[3]. Both the ESM and BIOS (Basic Input/Output System) can send error codes and messages to the display[3].
The LCD panel serves several important functions[3]:
- System Status: It indicates whether the system is operating correctly or requires attention.
- Error Messages: It displays error codes to help diagnose problems.
- System Information: It provides details about the system's configuration and status.
The LCD backlight is typically blue during normal operation and turns amber to indicate an error[3]. When the system is in standby mode, the backlight is off but can be activated by pressing the Select button on the LCD panel[3].
The control panel, which includes the LCD, connects to the motherboard via a 60-wire ribbon cable and a separate 5-wire cable for USB signals[3]. The LCD itself plugs into the control panel through a 20-pin ZIF (Zero Insertion Force) connector and flex cable[3].
Several scenarios might necessitate replacing the LCD display on your Dell R710 server.
- No Display: The LCD screen remains blank, even when the server is powered on.
- Flickering Display: The display flickers or shows intermittent images.
- Damaged Screen: Physical damage to the LCD screen, such as cracks or broken pixels.
- Incorrect Information: The display shows garbled or incorrect system information.
- Dim or Faded Display: The backlight is weak, making it difficult to read the screen.
If you encounter any of these issues, replacing the LCD display may be necessary to restore full functionality to your server monitoring capabilities.
Before you begin the replacement process, it's crucial to gather the necessary tools and take appropriate safety precautions.
- Phillips Head Screwdriver: For removing screws securing the front panel and LCD module.
- Flat Head Screwdriver: Useful for gently prying open the front panel if needed.
- Anti-Static Wrist Strap: To prevent electrostatic discharge (ESD) which can damage sensitive electronic components.
- Replacement LCD Display: Ensure you have a compatible replacement LCD for the Dell R710.
- Work Surface: A clean, well-lit area to work on.
- Power Down: Always power down the server and disconnect it from the power source before starting any hardware work.
- ESD Protection: Wear an anti-static wrist strap connected to a grounded surface to prevent ESD damage.
- Handle with Care: Handle the LCD module and other components carefully to avoid physical damage.
- Documentation: Keep the Dell R710 service manual handy for reference.
Follow these steps to safely and effectively replace the LCD display on your Dell R710 server.
Completely power down the Dell R710 server and disconnect it from the power source. This is crucial for your safety and to prevent damage to the server's components.
The front bezel is the plastic cover on the front of the server.
1. Locate the release buttons on the sides of the bezel.
2. Press the release buttons and gently pull the bezel away from the server.
The LCD module is located behind the front panel.
1. Locate the screws securing the front panel[5].
2. Use a Phillips head screwdriver to remove these screws.
3. Gently pull the front panel away from the server chassis.
Before removing the LCD module, disconnect it from the control panel board[5].
1. Locate the 20-pin ZIF connector and flex cable connecting the LCD to the control panel[3].
2. Carefully detach the flex cable from the ZIF connector. Use a small flat-head screwdriver to gently lift the connector lock if needed.
1. Identify any screws or clips holding the LCD module in place.
2. Remove the screws or release the clips to free the LCD module.
3. Carefully slide the old LCD module out of its housing.
1. Slide the new LCD module into the housing, ensuring it is properly aligned.
2. Secure the LCD module with the screws or clips you removed earlier.
1. Connect the flex cable of the new LCD to the 20-pin ZIF connector on the control panel board[3].
2. Ensure the flex cable is fully inserted and the ZIF connector lock is secured.
1. Align the front panel with the server chassis.
2. Gently push the front panel into place.
3. Secure the front panel with the screws you removed earlier.
1. Align the front bezel with the front of the server.
2. Push the bezel onto the server until it clicks into place.
1. Reconnect the server to the power source.
2. Power on the server.
3. Observe the LCD display to ensure it is functioning correctly and displaying system information.
After replacing the LCD, you might encounter some issues. Here's how to troubleshoot them.
- Check Connections: Ensure the flex cable is securely connected to the ZIF connector on the control panel board[3].
- Power Cycle: Power down the server, wait a few minutes, and then power it back on.
- Compatibility: Verify that the replacement LCD is compatible with the Dell R710 server.
- Inspect Cable: Examine the flex cable for any signs of damage.
- Test the Backlight: Confirm the backlight is functioning. If not, the backlight itself may be faulty.
- Firmware Update: Update the server's BIOS and ESM firmware to the latest versions.
- Configuration Settings: Check the LCD configuration settings in the BIOS or iDRAC interface.
- Hardware Conflict: Ensure there are no hardware conflicts by checking the system logs.
- Backlight Settings: Check the backlight settings in the BIOS or iDRAC interface.
- Power Supply: Verify the power supply is providing adequate power to the LCD.
- LCD Condition: The replacement LCD may have a weak backlight, requiring another replacement.
- iDRAC Interface: Use the Integrated Dell Remote Access Controller (iDRAC) interface to remotely monitor the server's status if the LCD is not functioning[2].
- Documentation: Always refer to the Dell R710 service manual for detailed instructions and diagrams.
- Professional Help: If you are not comfortable performing the replacement yourself, seek assistance from a qualified technician.
Replacing the LCD display on a Dell R710 server is a straightforward process that can be accomplished with the right tools and precautions. By following this comprehensive guide, you can safely and effectively restore your server's monitoring capabilities. Always ensure to take necessary safety measures and refer to the Dell R710 service manual for detailed instructions.
Common signs include a blank screen, flickering display, physical damage, incorrect information, or a dim backlight. If you observe any of these issues, it may be time to replace the LCD.
No, always power down the server and disconnect it from the power source before performing any hardware work, including replacing the LCD display.
You will need a Phillips head screwdriver, a flat head screwdriver (optional), an anti-static wrist strap, and a compatible replacement LCD display.
Wear an anti-static wrist strap connected to a grounded surface to prevent ESD damage to sensitive electronic components.
You can purchase replacement LCD displays from online retailers, Dell's official website, or authorized Dell parts suppliers. Ensure the replacement LCD is compatible with the Dell R710 server.
