Replacing the LCD display on an iPhone 4 can seem daunting, but with the right tools and a step-by-step guide, it can be accomplished successfully. This article provides a comprehensive guide on how to change the iPhone 4 LCD display, including necessary tools, detailed steps, and helpful tips. Additionally, we will include images and videos to enhance understanding. By the end of this guide, you'll be equipped to replace your iPhone 4 screen confidently.

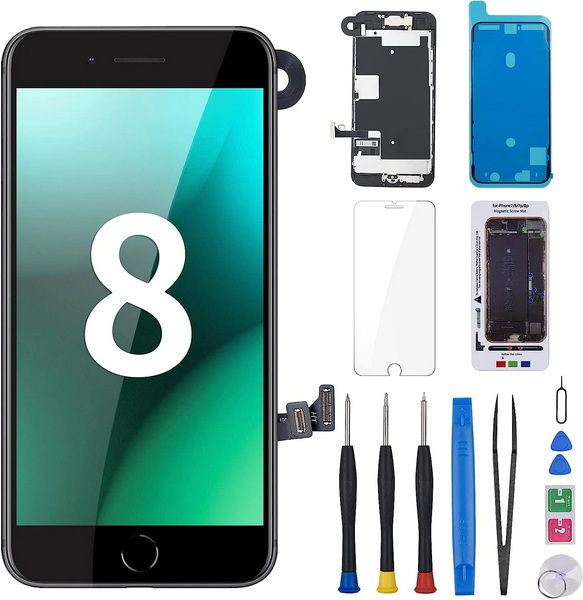

Before starting the replacement process, gather the following tools:
- Pentalobe PL1 screwdriver: For removing the screws on the iPhone's exterior.
- Phillips PH00 screwdriver: For internal screws.
- Plastic opening tool: To pry open the device without damaging it.
- Tweezers: For handling small screws and components.
- Menda ESD Spudger: To disconnect connectors safely.
- Steel laboratory spatula: For prying apart glued components.
- Suction cup: To help lift the screen away from the body of the phone.
- Replacement LCD display: Ensure it's compatible with iPhone 4.
1. Choose a clean, well-lit area to work in. A flat surface is ideal for preventing parts from rolling away or getting lost.
2. Organize your tools and have a small container ready for screws to prevent mixing them up.
Before beginning any repairs, ensure your iPhone is powered off completely to avoid any electrical issues.
1. Use a SIM eject tool or a paperclip to remove the SIM card tray from the side of your iPhone.
1. Using the Pentalobe PL1 screwdriver, remove the two screws located at the bottom of the device.
2. Carefully lift off the back cover and set it aside.
1. Locate the battery connector and gently pry it up using a plastic opening tool.
2. Remove any screws securing the battery if necessary and lift it out.
1. Unscrew and remove components such as:
- The speaker
- The logic board
- Any other connectors that may obstruct access to the display.
1. Carefully disconnect all cables attached to the display assembly using a spudger or plastic opening tool.
2. Be gentle to avoid damaging any connectors.

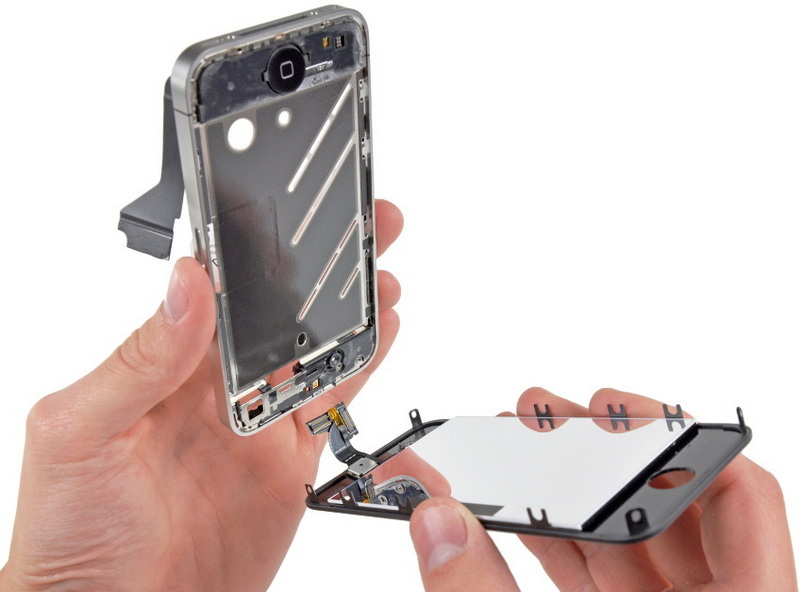

1. Use a suction cup to lift the old display gently away from the device.
2. If it's stuck, use a plastic opening tool to pry around the edges slowly.
1. Before installing, ensure that all protective films are removed from your new LCD display.
2. Align connectors on your new display with those on the logic board.
1. Carefully place the new display onto the frame of your iPhone.
2. Reconnect all cables securely to their respective connectors.
1. Replace all previously removed components in reverse order:
- Reinstall logic board
- Connect battery
- Secure speaker
- Attach back cover
2. Ensure all screws are tightened properly but do not overtighten.
1. Power on your iPhone to test if the new display functions correctly.
2. Check for responsiveness and clarity of visuals.
Even after following all steps carefully, you might encounter some common issues after replacing your iPhone 4 LCD display:
If your phone powers on but displays nothing:
- Check Connections: Ensure that all connectors are firmly connected and seated properly.
- Inspect for Damage: Look for any visible damage on cables or connectors that could affect functionality.
If your touchscreen is unresponsive:
- Recheck Connections: Sometimes, touch functionality is affected by loose connections; double-check these connections.
- Software Issues: Restart your phone to rule out software glitches that may cause touch issues.
If you notice flickering or color distortion:
- Reconnect Display Cable: A loose or improperly connected display cable can cause these symptoms; ensure it's securely connected.
- Check for Damage: Inspect for any damage that might have occurred during installation.
To assist you further, here are some video guides that provide visual instructions:
Once you have successfully replaced your LCD display, consider these maintenance tips to prolong its life:
Use a microfiber cloth to clean your screen regularly. Avoid using harsh chemicals that can damage coatings on your screen.
Invest in a quality screen protector to prevent scratches and reduce glare while enhancing touch sensitivity.
Keep your device away from extreme heat or cold as this can affect screen performance and longevity.
Replacing an iPhone 4 LCD display is a manageable task when approached methodically with proper tools and guidance. Following this detailed guide should empower you to successfully replace your screen while saving money on repair costs. With some patience and care, you can restore your device to its former glory!
Replacing an iPhone 4 screen typically takes about one to two hours depending on your experience level.
No, for iPhone 4 models, you must replace both the glass and LCD as they are fused together.
Ensure all connectors are securely attached; if issues persist, check for damage during installation or consider seeking professional help.
Yes, specific screwdrivers and prying tools are essential for safely disassembling your device without causing damage.
If you follow instructions carefully and handle components gently, it is generally safe; however, there's always a risk of damaging parts if not done correctly.
