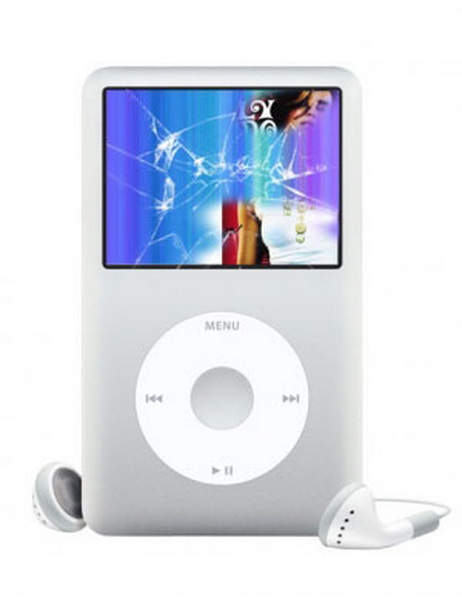

Replacing the LCD screen on an iPod Classic can breathe new life into your device, especially if the screen is cracked, has dead pixels, or suffers from backlight issues[4]. This guide provides a step-by-step walkthrough, ensuring you can perform the replacement safely and effectively.
Before starting, gather all the necessary tools and parts. This will streamline the process and minimize potential delays.
- Replacement LCD Screen: Ensure it is compatible with your iPod Classic model[5].
- iPod Opening Tool or Putty Knife: Used to open the iPod case without causing damage[9].
- Small Phillips Screwdriver: For removing the screws securing the front panel[1].
- Spudger or Small Flathead Screwdriver: To disconnect ribbon cables[7].
- Angled Tweezers: Helpful for manipulating small connectors[10].
- Optional: Suction cup for lifting the screen, anti-static wrist strap.
1. Start with the Opening Tool: Insert the iPod opening tool (or a thin putty knife) into the seam between the front and rear cases[1]. Begin at the bottom near the dock connector[9].
2. Create a Gap: Gently wiggle the tool to create a small gap. Be patient and avoid using excessive force to prevent damage[1].
3. Work Around the Edges: Slide the tool along the sides to release the clips holding the case together. You'll hear a clicking sound as each clip disengages[7].
4. Separate the Case: Once most of the clips are released, carefully separate the front and rear panels. Be cautious, as ribbon cables connect the two halves[9].
1. Locate the Ribbon Cables: Identify the ribbon cables connecting the rear panel (which houses the battery and hard drive) to the front panel (containing the screen and click wheel)[1].
2. Hard Drive Ribbon Cable: Lift the hard drive to access the ribbon cable beneath it[9]. Use a spudger to flip up the plastic tab holding the headphone jack ribbon in place. The tab will rotate up 90 degrees, releasing the ribbon cable[9]. Slide the orange headphone jack ribbon out of its connector[9].
3. LCD Screen Ribbon Cable: Locate the LCD screen ribbon cable. Use a spudger or your fingernail to gently flip up the black plastic tab securing the cable[10]. The tab will rotate 90 degrees, releasing the cable[9].
4. Disconnect the Battery: Use angled tweezers or an iPod opening tool to slide up the brown connector latch, holding the orange battery ribbon cable in place[10]. Make sure you pull from both sides of the latch[10]. You only need to lift the brown connector latch up about 1-2mm to free the cable[10]. Do not lift more or remove the latch, or you might pull the white connector with it[10]!
5. Remove the Cables: Gently slide the ribbon cables out of their connectors[1].
1. Remove the Screws: Use a small Phillips screwdriver to remove the six screws around the edge of the metal frame[1]. There are three screws on each side[7].
2. Separate the Frame: Once the screws are removed, press down on the click wheel with your thumbs while pulling up on the sides of the front panel[7]. This will separate the front panel from the metal frame[1].
3. Remove the LCD: Carefully wiggle the LCD screen loose from the frame[4]. Gently lift it out, ensuring no adhesive is holding it in place[7].
1. Position the New Screen: Align the new LCD screen with the frame[7]. Ensure it sits flush against the frame and that the ribbon cable aligns with its connector[4].
2. Connect the LCD Ribbon Cable: Carefully insert the LCD ribbon cable into its connector[1]. Use a spudger to flip down the plastic tab, securing the cable in place[9].
3. Reassemble the Frame: Place the front panel back onto the metal frame. Ensure the LCD screen is properly seated[7].
4. Reinsert the Screws: Replace the six Phillips screws around the edge of the frame[1]. Tighten them gently to secure the frame[7].
1. Reconnect the Hard Drive Ribbon Cable: Reconnect the hard drive ribbon cable to the logic board[9]. Use a spudger to flip down the plastic tab, securing the cable[10].
2. Reconnect the Battery: Reconnect the battery ribbon cable[4]. Use angled tweezers or an iPod opening tool to slide down the brown connector latch, holding the orange battery ribbon cable in place[10].
3. Align the Panels: Carefully align the front and rear panels[9]. Ensure all ribbon cables are properly connected and not pinched[10].
4. Snap the Case Shut: Press the edges of the case together until all the clips snap into place. Start with one side and work your way around to ensure a secure fit[7].
1. Power On: Turn on the iPod Classic to test the new screen[9]. Check for display clarity, backlight function, and any dead pixels[4].
2. Functionality Test: Navigate through the menus and play a song to ensure all functions are working correctly[10].
3. Troubleshooting: If the screen doesn't turn on, reopen the case and check the ribbon cable connections. Ensure they are securely in place[7].
- Static Electricity: Work in a static-free environment. Use an anti-static wrist strap to prevent damage to the iPod's components.
- Gentle Force: Avoid using excessive force when opening the case or disconnecting ribbon cables.
- Organization: Keep track of all screws and small parts to ensure nothing is lost during the process.
- Patience: Take your time and follow each step carefully. Rushing can lead to mistakes and potential damage.
- Testing: Before fully reassembling the iPod, test the screen to ensure it is working correctly.
Replacing the LCD screen on an iPod Classic is a manageable task with the right tools, patience, and guidance. By following these steps and taking the necessary precautions, you can restore your iPod to its former glory and continue enjoying your music on this classic device. Remember to handle the components with care and double-check all connections before fully reassembling the iPod.
Ensure that the LCD ribbon cable is securely connected. Open the iPod and check that the cable is fully inserted into its connector and the plastic tab is locked down. Also, check the battery connection[7].
Use a thin piece of plastic or a screen protector between the opening tool and the rear case to prevent scratches. Apply gentle pressure to avoid damaging the metal[9].
Use a rubber band or a piece of steel wool between the screwdriver and the screw to get a better grip. Apply steady, downward pressure while turning slowly[1].
Yes, but use it sparingly. Apply low heat to the edges of the screen to soften the adhesive, making it easier to remove the screen without damage[7].
Replacement LCD screens are available on various online marketplaces and electronics retailers[5]. Ensure you purchase a screen that is compatible with your specific iPod Classic model[4].
