OLED (Organic Light Emitting Diode) screens have become a favorite choice for Arduino enthusiasts due to their sharp display quality, low power consumption, and ease of integration. Whether you're building a simple project that shows sensor readings or a complex interactive interface, OLED screens can significantly enhance your Arduino projects. This guide will take you step-by-step through the process of printing text and images on an OLED screen using Arduino, covering everything from hardware setup and wiring to programming and advanced features. By the end, you will be confident in displaying custom text, graphics, and even animations on your OLED display.
To begin, gather the following components:
- Arduino Board: Popular choices include Arduino Uno, Nano, or Mega. Each has slightly different pin layouts, so pick one you are comfortable with.
- OLED Display Module: The most common is a 0.96-inch OLED with a resolution of 128×64 pixels, often using SSD1306 or SH1106 drivers.
- Jumper Wires: For connecting the OLED to the Arduino.
- Breadboard: Optional, useful for prototyping.
- Arduino IDE: Installed on your computer for writing and uploading code.
- Libraries: You will need the Adafruit_SSD1306 and Adafruit_GFX libraries, plus the Wire library for I2C communication.
OLED displays use organic compounds that emit light when an electric current passes through them. Unlike traditional LCDs, OLEDs do not require backlighting, which results in higher contrast and deeper blacks. This makes the display crisp and easy to read even in low-light conditions.
The typical 0.96-inch OLED module offers a 128×64 pixel resolution, providing enough detail for text, icons, and simple graphics. The compact size makes it ideal for wearable devices, handheld projects, and embedded systems.
Most Arduino-compatible OLED displays communicate via the I2C protocol. I2C is a two-wire communication method that uses:
- SDA (Serial Data Line): Carries the data.
- SCL (Serial Clock Line): Synchronizes the data transfer.
Along with power (VCC) and ground (GND), this makes wiring simple and reduces the number of pins needed on your Arduino.
I2C supports multiple devices on the same bus, which means you can connect several sensors or displays using just these two lines, each with a unique address.

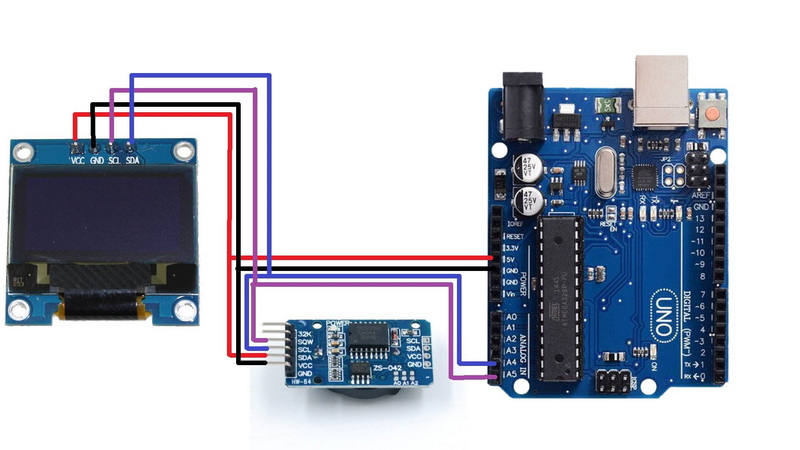

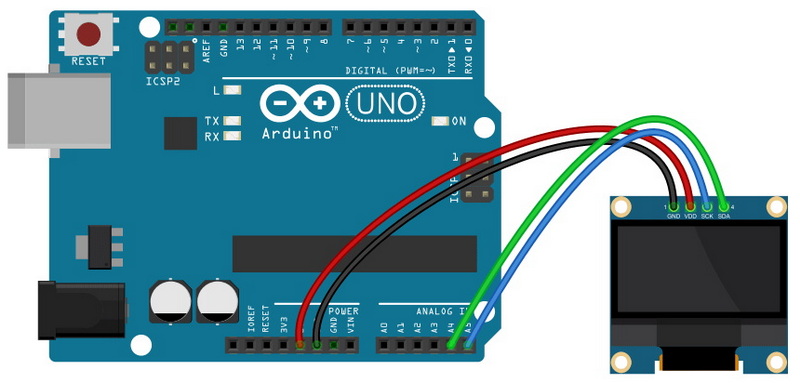

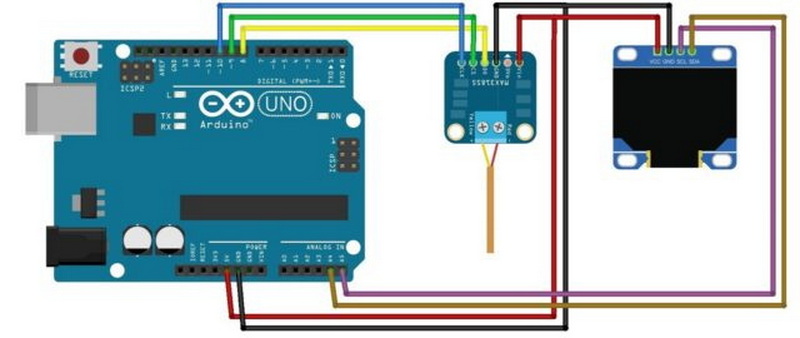

Connecting the OLED screen to an Arduino Uno is straightforward. Use the following connections:
| OLED Pin | Arduino Uno Pin |
|---|---|
| VCC | 5V |
| GND | GND |
| SDA | A4 |
| SCL | A5 |
For other Arduino models, the SDA and SCL pins vary:
- Arduino Nano: SDA = A4, SCL = A5
- Arduino Mega: SDA = 20, SCL = 21
- Arduino Leonardo: SDA = 2, SCL = 3
Always check your board's documentation to confirm the correct pins.
To control the OLED display, you need specific libraries that simplify communication and drawing functions:
1. Open the Arduino IDE.
2. Navigate to Sketch > Include Library > Manage Libraries.
3. Search for Adafruit SSD1306 and install it.
4. Search for Adafruit GFX and install it.
5. The Wire library, which handles I2C communication, is usually included by default.
These libraries provide functions for initializing the display, drawing text, shapes, and images.
After wiring and installing libraries, you can write a simple program to print text on the OLED screen. The program will:
- Initialize the display.
- Clear any previous content.
- Set the text size and color.
- Position the cursor.
- Print the desired message.
This basic process is the foundation for more complex displays.
You are not limited to a single line of text. By using cursor positioning and print functions, you can display multiple lines and customize the appearance:
- Text Size: Use scaling to make text larger or smaller.
- Text Color: OLEDs are monochrome, so you typically choose between white (lit pixel) or black (unlit pixel).
- Cursor Position: Place text anywhere on the screen by specifying x and y coordinates.
This flexibility allows you to create menus, status updates, or detailed information screens.
Beyond text, OLED screens can render bitmap images. This involves:
1. Converting your desired image (such as a logo or icon) into a monochrome bitmap array.
2. Including this bitmap in your Arduino code.
3. Using drawing functions to render the bitmap at specified coordinates.
Displaying images adds a professional touch to your projects and can be used for branding, icons, or visual feedback.
OLED displays support several advanced capabilities:
- Font Variations: Besides scaling, you can use custom fonts for unique styles.
- Animations: By repeatedly clearing and redrawing the screen with updated content, you can create simple animations or dynamic displays.
- Multiple Displays: Using I2C multiplexers, you can connect and control multiple OLEDs simultaneously.
- Interactive Interfaces: Combine OLEDs with input devices like buttons, rotary encoders, or joysticks to build menus or control panels.
Optimizing refresh rates and managing memory efficiently will improve performance, especially for complex graphics or animations.
A practical application is displaying network information on your OLED screen, which is particularly useful for IoT projects. You can show:
- IP address
- Subnet mask
- Gateway address
- DNS servers
This provides real-time feedback on network status without needing a computer or serial monitor.
When working with OLED displays, you might encounter some common problems:
- Display Not Turning On: Check power connections and ensure the OLED voltage matches your Arduino output.
- No Text or Graphics: Verify the I2C address; some modules use 0x3C, others 0x3D.
- Garbled or Flickering Display: Ensure proper grounding and stable power supply.
- Library Compatibility: Confirm you are using libraries compatible with your OLED driver (SSD1306 vs SH1106).
Systematic checking of wiring, code, and library versions usually resolves most issues.
Printing text and images to an OLED screen with Arduino is a rewarding and straightforward process once you understand the hardware connections and software tools involved. OLED displays offer excellent contrast and low power consumption, making them ideal for compact, efficient visual feedback in your projects. By leveraging libraries such as Adafruit_SSD1306 and Adafruit_GFX, you can easily control text size, position, and graphics. Experimenting with animations, custom fonts, and images can elevate your projects to a professional level, making your Arduino creations more interactive and visually appealing.
Connect the OLED's VCC to 5V (or 3.3V if required), GND to ground, SDA to the Arduino's SDA pin (A4 on Uno), and SCL to the Arduino's SCL pin (A5 on Uno). Confirm the correct I2C address in your code to ensure communication.
You need the Adafruit_SSD1306 and Adafruit_GFX libraries, along with the built-in Wire library that handles I2C communication.
Use the `setCursor(x, y)` function to position the cursor before each line and call `println()` to print the text. The cursor automatically moves to the next line after each `println()`.
Yes, by converting your image to a monochrome bitmap array and using the `drawBitmap()` function, you can render images on the OLED.
SSD1306 and SH1106 are two common OLED driver chips. SSD1306 is widely supported by popular libraries like Adafruit's, while SH1106 may require different or modified libraries. Always check your OLED module's specifications before programming.
