In today's digital age, cell phones have become an integral part of our daily lives. At the heart of these devices lies a crucial component that allows us to interact with the digital world: the LCD display. This article will delve into the intricate workings of LCD displays in cell phones, exploring their anatomy, technology, and the principles behind their operation.

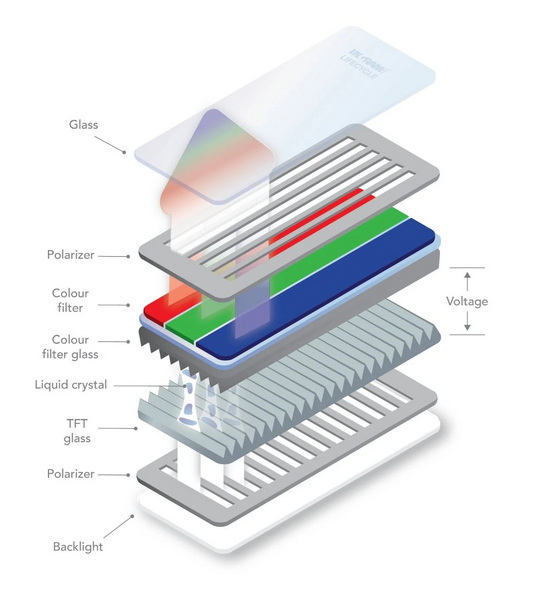

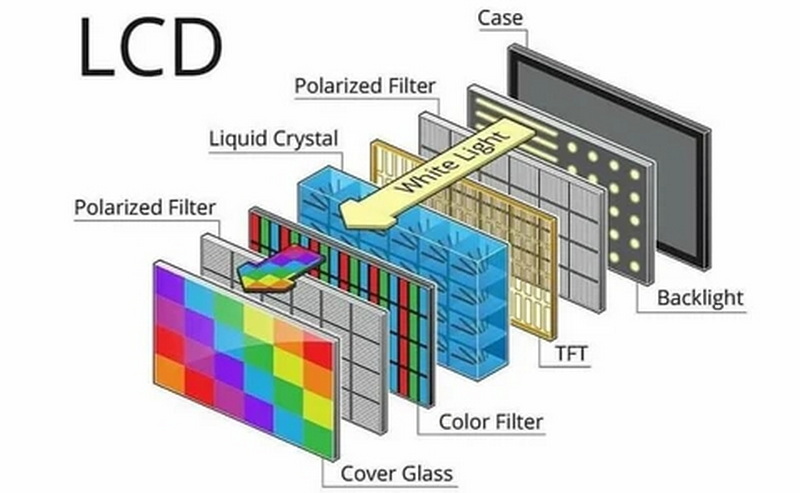

An LCD (Liquid Crystal Display) phone screen is a marvel of modern technology, comprising several layers that work in harmony to produce the vibrant images we see on our devices. Let's break down these layers to understand the structure of an LCD phone screen:
1. Protective Cover Glass: This is the outermost layer that we touch when interacting with our phones. It serves as a protective barrier against scratches and damage[1].
2. Digitizer: Situated beneath the protective glass, the digitizer is responsible for capturing touch inputs and converting them into digital signals that the phone can interpret[1].
3. LCD Panel: This is the core of the display, where the actual image formation takes place. It consists of several sub-layers, including:
- Two glass panels
- Rear polarizer
- Front polarizer
- Liquid crystal layer sandwiched between the glass panels[1]
4. Backlight: Located at the bottom of the stack, the backlight illuminates the entire display, typically using an array of LEDs[1].

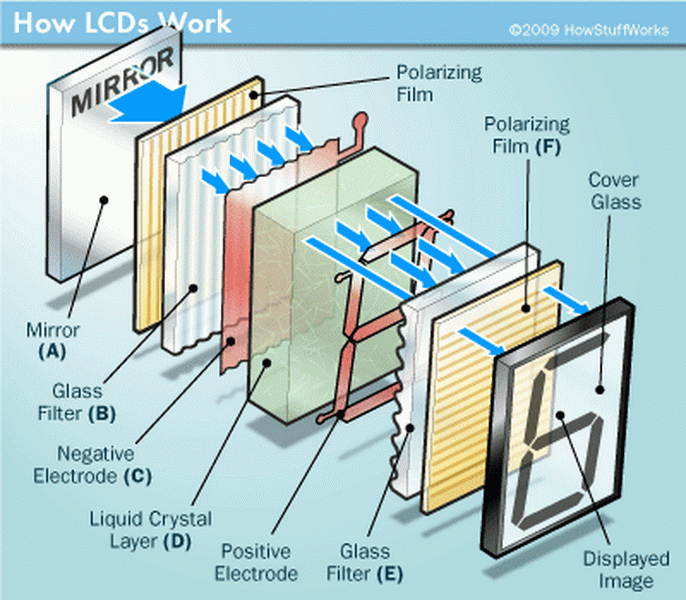

LCD technology relies on the unique properties of liquid crystals, which can be manipulated to control the passage of light. Here's how it works:
1. Light Source: The backlight emits light that travels through the layers of the LCD.
2. Polarization: The light is polarized as it passes through the rear polarizer.
3. Liquid Crystal Manipulation: An electric field is applied to the liquid crystal molecules, causing them to align in specific ways.
4. Pixel Formation: The aligned liquid crystals either block or allow light to pass through, creating dark or light pixels.
5. Color Filtering: A color filter layer adds red, green, and blue hues to create a full-color image[3].
The digitizer is the component that makes touch interaction possible. It uses either capacitive or resistive technology:
- Capacitive digitizers react to the electrical charge from a user's finger or stylus.
- Resistive digitizers detect pressure applied to the screen[1].
The LCD panel is where the magic happens. When an electric charge is applied to a pixel:
1. It alters the alignment of the liquid crystals in that pixel.
2. This change in alignment affects how light passes through the pixel.
3. The result is a variation in brightness or darkness, which forms part of the overall image[1].
The backlight serves a crucial role:
- It provides the light source for the entire display.
- It determines the screen's brightness, contrast, and color vibrancy.
- Modern phones often use LED backlights for energy efficiency[1].
As technology progresses, LCD displays in phones continue to evolve. Some advanced features include:
1. IPS (In-Plane Switching): This technology offers wider viewing angles and better color reproduction.
2. High Refresh Rates: Some phones now feature LCD displays with refresh rates of 90Hz or even 120Hz, providing smoother motion and scrolling.
3. HDR (High Dynamic Range): This technology allows for a wider range of colors and better contrast, resulting in more vivid and lifelike images.
While LCD remains popular, it's worth comparing it to OLED (Organic Light-Emitting Diode) technology:
| Feature | LCD | OLED |
|---|---|---|
| Backlight | Required | Not required |
| Black Levels | Less deep | True blacks |
| Power Efficiency | Lower | Higher |
| Lifespan | Longer | Shorter |
| Cost | Generally lower | Generally higher |
Despite the rise of OLED, LCD technology continues to evolve:
1. Mini-LED Backlighting: This technology uses thousands of tiny LEDs for more precise local dimming and improved contrast.
2. Quantum Dot LCD: By incorporating quantum dots, these displays can produce more vibrant and accurate colors.
3. Flexible LCDs: Research is ongoing to create bendable and foldable LCD displays.
As we rely more on electronic devices, it's crucial to consider the environmental impact of LCD technology:
1. Energy Efficiency: Modern LCDs are becoming increasingly energy-efficient, reducing power consumption.
2. Recycling: Proper recycling of LCD screens is essential to recover valuable materials and prevent environmental contamination.
3. Sustainable Production: Manufacturers are exploring more sustainable methods of producing LCD displays, including using eco-friendly materials.
LCD displays have come a long way since their inception and continue to be a crucial component in cell phones. Their complex structure, combining various layers and technologies, allows us to interact with our devices in ways that were once unimaginable. As technology advances, we can expect to see even more improvements in LCD technology, enhancing our visual experiences while addressing environmental concerns.
Understanding how LCD displays work not only satisfies our curiosity but also helps us appreciate the intricate technology we carry in our pockets every day. As consumers, this knowledge can inform our purchasing decisions and help us make the most of our devices.
LCD (Liquid Crystal Display) and LED (Light-Emitting Diode) displays are often confused, but they work differently:
- LCD displays use liquid crystals to manipulate light from a backlight (which may be LED).
- LED displays use light-emitting diodes as the actual pixels that create the image.
In phones, what people often refer to as "LED displays" are usually OLED (Organic LED) displays, which use organic compounds that emit light when electricity is applied.
LCD screens are generally less susceptible to burn-in compared to OLED screens. However, they can experience a similar issue called image retention:
- This is usually temporary and can be fixed by turning off the display for a while.
- In rare cases, permanent image retention can occur, but it's much less common than OLED burn-in.
The refresh rate of an LCD screen, measured in Hertz (Hz), can significantly impact user experience:
- Higher refresh rates (e.g., 90Hz or 120Hz) result in smoother motion and scrolling.
- This can reduce eye strain and provide a more responsive feel to touch interactions.
- However, higher refresh rates can also consume more battery power.
The impact on battery life depends on various factors:
- LCD screens use a backlight that's always on, which can consume more power when displaying darker content.
- OLED screens can be more energy-efficient, especially when displaying darker content, as they can turn off individual pixels.
- However, at maximum brightness, OLED screens often consume more power than LCDs.
To maintain your phone's LCD screen:
- Use a soft, lint-free cloth (microfiber is ideal) to gently wipe the screen.
- For tougher smudges, slightly dampen the cloth with distilled water or a screen cleaner designed for electronics.
- Avoid using harsh chemicals, abrasive materials, or excessive pressure.
- Always check your phone manufacturer's guidelines for specific cleaning instructions.
