How Is Lcd Display Backlight?

Content Menu

● Introduction

● What is an LCD Backlight?

● Types of LCD Backlights

● The Backlighting Process in Detail

● Advantages of LED Backlighting

● Factors Affecting Backlight Performance

● How to Choose the Right LCD Backlight

● Backlight Adjustment and Control

● Positive Mode vs. Negative Mode LCDs

● Common Problems and Troubleshooting

● Conclusion

● FAQ

>> 1. What are the main types of LCD backlights?

>> 2. Why are LEDs preferred over CCFLs?

>> 3. How does local dimming improve image quality?

>> 4. What is the purpose of a diffuser in the backlight system?

>> 5. What is the difference between positive and negative mode LCDs in terms of backlight usage?

● Citations:

Introduction

Liquid Crystal Displays (LCDs) are ubiquitous in modern technology, found in everything from smartphones to televisions. A critical component of an LCD is the backlight, which illuminates the screen, making images visible. This article explores the technology behind LCD backlights, their types, how they function, and their impact on display performance.

What is an LCD Backlight?

An LCD does not produce light on its own; instead, it modulates light from an external source[1]. The backlight is this light source, positioned behind the LCD panel to provide the necessary illumination for the display to be viewed[1][3]. Without a backlight, an LCD would appear dark.

Types of LCD Backlights

Several types of backlights have been used in LCDs, each with its own advantages and disadvantages[1][2].

-  Cold Cathode Fluorescent Lamps (CCFL) CCFLs were a common early backlighting solution for LCDs[2]. They provide high brightness and full spectral output[2]. However, CCFLs are less energy-efficient, contain mercury (making disposal problematic), and are relatively bulky[4][14].

-  Light Emitting Diodes (LED) LEDs have become the dominant backlight technology due to their efficiency, durability, and compact size[1][5].

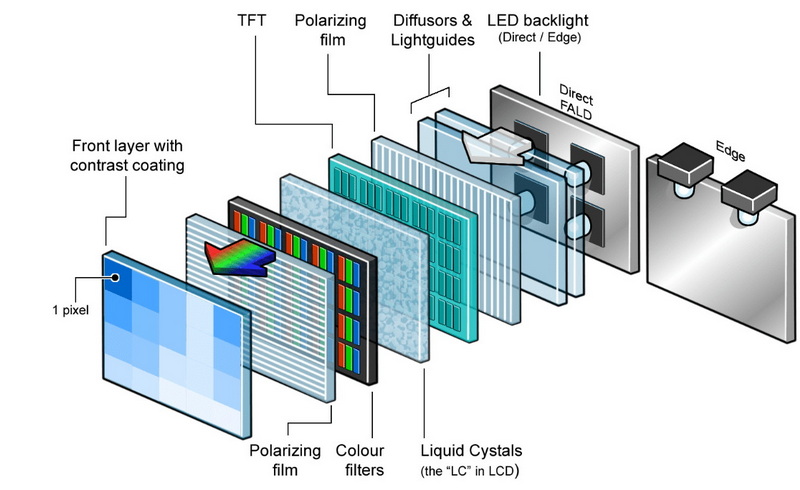

-  Edge-Lit LED: LEDs are placed along the edges of the screen, and a light guide panel distributes the light evenly across the display[1][14]. This design allows for slimmer displays[5].

-  Direct-Lit LED: LEDs are arranged in an array behind the LCD panel, providing more uniform illumination[1][14].

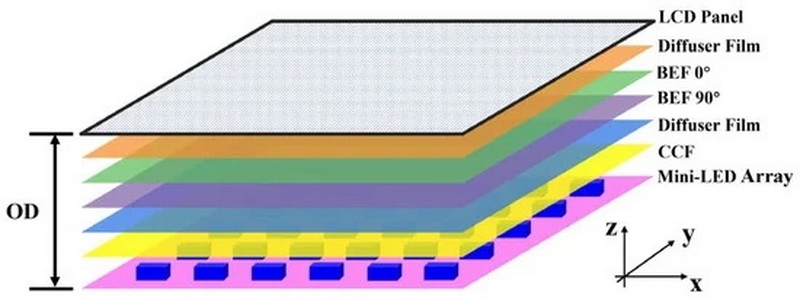

-  Full Array with Local Dimming: An advanced form of direct-lit backlighting where LEDs are controlled individually or in groups. This allows for localized adjustments in brightness, improving contrast and black levels[1][6].

-  Electroluminescent Panels (ELP) ELPs are thin and lightweight, providing very even light distribution[2][9][14]. They use colored phosphors to generate light when an AC voltage is applied[2][14]. However, ELPs require an inverter, have a limited lifespan, and are not as energy-efficient as LEDs[14].

The Backlighting Process in Detail

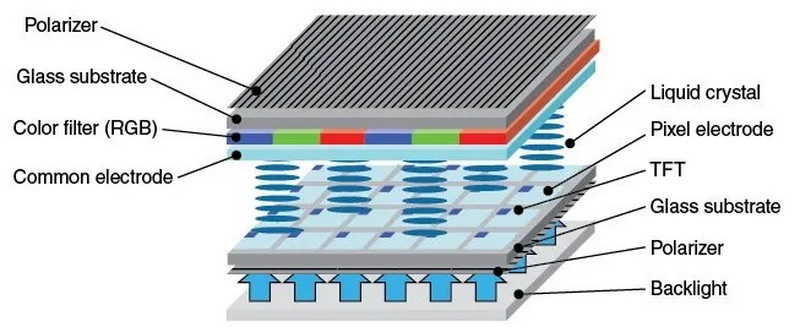

The backlighting process involves several key steps to ensure that the light emitted is effectively used to create a clear and vibrant image[3].

1. Light Generation: The backlight source (LEDs or other lamps) emits white light[3].

2. Diffusion: The light is diffused by a panel to spread it evenly across the screen[1][3].

3. Polarization: A polarizing filter aligns the light waves in a single direction[3][5][11].

4. Liquid Crystal Layer Modulation: The liquid crystals control the amount of light that passes through each subpixel (red, green, and blue), determining the intensity of each color[3][5].

5. Color Filtering: Color filters create the red, green, and blue subpixels that combine to produce the final color seen on the screen[3][5].

Advantages of LED Backlighting

LED backlighting offers several advantages over older technologies like CCFL[1]. These include:

-  Higher Dynamic Contrast: LEDs can produce images with a higher dynamic contrast ratio[1].

-  Slimmer Design: LED backlights allow for thinner displays[1][5].

-  Wider Color Gamut: RGB-LED backlights can produce a wider range of colors[1][13].

-  Energy Efficiency: LEDs are more energy-efficient, consuming less power[1][5].

-  Durability and Lifespan: LEDs are more reliable and have a longer lifespan[1][5].

-  Environmentally Friendly: LEDs do not contain mercury, reducing environmental pollution[1].

Factors Affecting Backlight Performance

Several factors can affect the performance of LCD backlights:

-  Brightness: The intensity of light emitted by the backlight, measured in candelas per square meter (cd/m²) or nits[6].

-  Uniformity: The consistency of brightness across the entire screen[1][8].

-  Color Accuracy: The ability of the backlight to produce accurate and consistent colors[13].

-  Energy Efficiency: The amount of power consumed by the backlight[1][5].

-  Lifespan: The duration for which the backlight can operate before its brightness degrades significantly[6][14].

How to Choose the Right LCD Backlight

Choosing the right LCD backlight depends on the specific application and requirements[2]. Considerations include:

-  Size and Thickness: Edge-lit LEDs are suitable for slim displays[1][5].

-  Brightness Requirements: Direct-lit LEDs or full-array local dimming are better for high-brightness applications[1][14].

-  Power Consumption: LEDs are generally more energy-efficient[1][5].

-  Cost: The cost of different backlight technologies can vary[2].

Backlight Adjustment and Control

Adjusting the backlight brightness is essential for user comfort and energy conservation[6].

-  Manual Adjustment: Users can manually adjust the backlight brightness using controls on the display[6].

-  Automatic Adjustment: Some displays use ambient light sensors to automatically adjust the backlight brightness based on the surrounding environment[6].

-  Pulse Width Modulation (PWM): A technique used to control the brightness of LEDs by varying the width of the pulses of light[6].

-  Active Backlight Control: Some LCD panels can automatically adjust the backlight brightness in response to the image being displayed, enhancing contrast and saving power[6].

Positive Mode vs. Negative Mode LCDs

The mode of an LCD affects how the backlight is used[7].

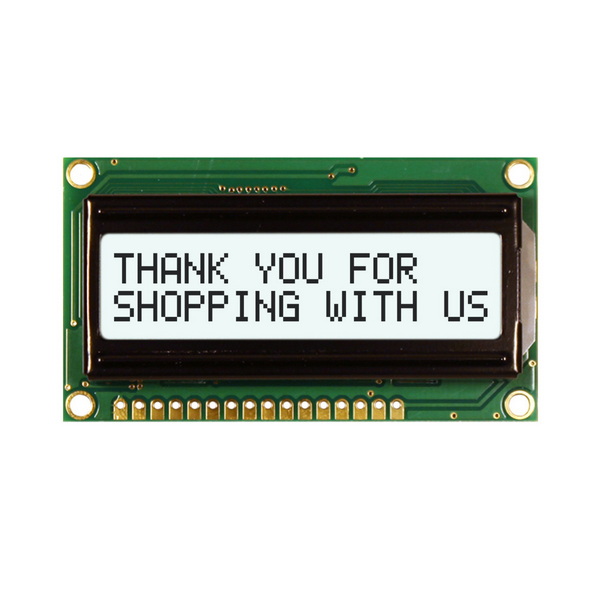

-  Positive Mode: Characters/icons are darker, and the background is lighter. Readable with or without the backlight[7].

-  Negative Mode: Characters/icons are light, and the background is dark. Requires the backlight to be on for readability, which can reduce the LED's lifespan[7].

Common Problems and Troubleshooting

-  Dim or Flickering Backlight: Could indicate a failing backlight or power supply[6].

-  Uneven Brightness: May be due to a faulty diffuser or uneven LED distribution[1][8].

-  Color Distortion: Could be caused by a malfunctioning backlight or color filter[5][13].

Conclusion

LCD backlights are a critical component of display technology, enabling us to see clear and vibrant images. LED backlighting has become the standard due to its numerous advantages over older technologies. Understanding the different types of backlights, how they work, and the factors that affect their performance can help users make informed decisions when selecting and using LCD displays.

FAQ

1. What are the main types of LCD backlights?

The main types are CCFL, LED (edge-lit, direct-lit, full array with local dimming), and ELP[1][2].

2. Why are LEDs preferred over CCFLs?

LEDs are more energy-efficient, durable, slimmer, and environmentally friendly. They also offer better color and contrast[1][5].

3. How does local dimming improve image quality?

Local dimming allows for localized adjustments in brightness, improving contrast and black levels by dimming LEDs in darker areas of the screen[1][6].

4. What is the purpose of a diffuser in the backlight system?

The diffuser spreads the light evenly across the screen, ensuring uniform brightness[1][3].

5. What is the difference between positive and negative mode LCDs in terms of backlight usage?

Positive mode LCDs are readable with or without the backlight, while negative mode LCDs require the backlight to be on, reducing its lifespan[7].
