LCD (Liquid Crystal Display) screens are widely used in devices such as laptops, TVs, smartphones, and monitors. However, these screens are prone to various forms of damage, including cracks, dead pixels, discoloration, or flickering. While replacing an LCD screen might seem like the only solution, many issues can be fixed with a bit of knowledge and effort. This comprehensive guide will walk you through the process of diagnosing and repairing LCD displays step by step.
Before diving into the repair process, it's essential to understand how an LCD display works. LCD screens consist of several layers that work together to produce images:
- Liquid Crystals: These crystals manipulate light when an electric current is applied.
- Backlight: Provides illumination for the display.
- Polarizers: Control the direction of light passing through the screen.
- TFT (Thin Film Transistor): Controls individual pixels on the screen.
- Glass Layers: Protect the internal components.
LCD screens are fragile because they rely on these thin layers working in harmony. Damage to any layer can disrupt the display.
Physical damage is one of the most common problems with LCD displays. A cracked screen can cause discoloration, black spots, or unresponsive areas.
Dead pixels appear as tiny black or white dots on the screen and occur when individual pixels fail to light up.
Screen flickering is often caused by loose connections or power supply issues.
Discoloration can occur due to backlight damage, polarizer issues, or internal component failure.
Vertical or horizontal lines may appear due to damaged cables or issues with the display driver.
To repair an LCD display effectively, you'll need the following tools:
- Phillips Screwdriver: For disassembling screws.
- Tweezers: To handle delicate cables and connectors.
- Pry Tools: To open the device casing without causing damage.
- Magnifying Glass: To inspect small components closely.
- Bright Light Source: Helps in identifying tiny cracks or loose connections.
- Adhesive Tape: Secures cables and other components during reassembly.
- Replacement Screen: Necessary if the original screen is beyond repair.
Before starting any repair work, it's crucial to identify the issue:
1. Turn on your device and observe any visible damage (e.g., cracks or discoloration).
2. Check for symptoms such as dead pixels, flickering, or lines on the screen.
1. Shut down your device completely and unplug it from any power source.
2. Remove any external accessories like batteries (if possible), chargers, or cables.

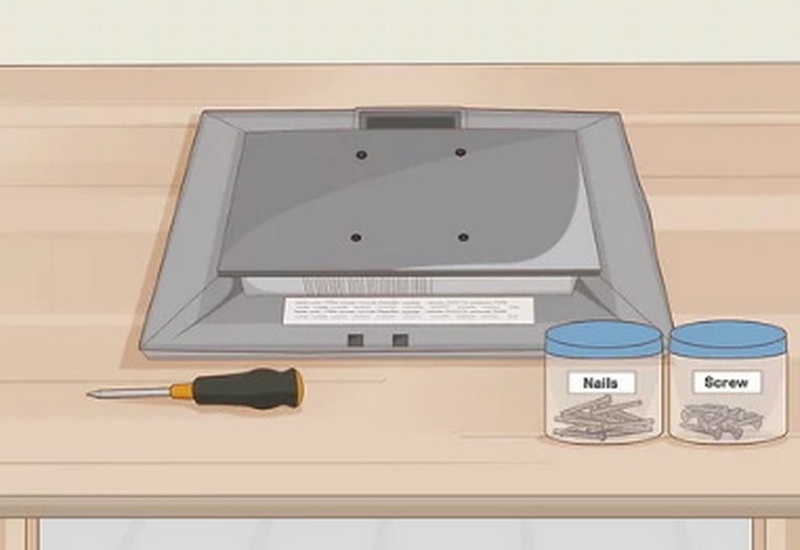

1. Use a Phillips screwdriver to remove screws securing the outer casing of your device.
2. Use pry tools to gently separate the screen housing from the frame without damaging it.
3. Locate and disconnect any ribbon cables connecting the screen to other components.

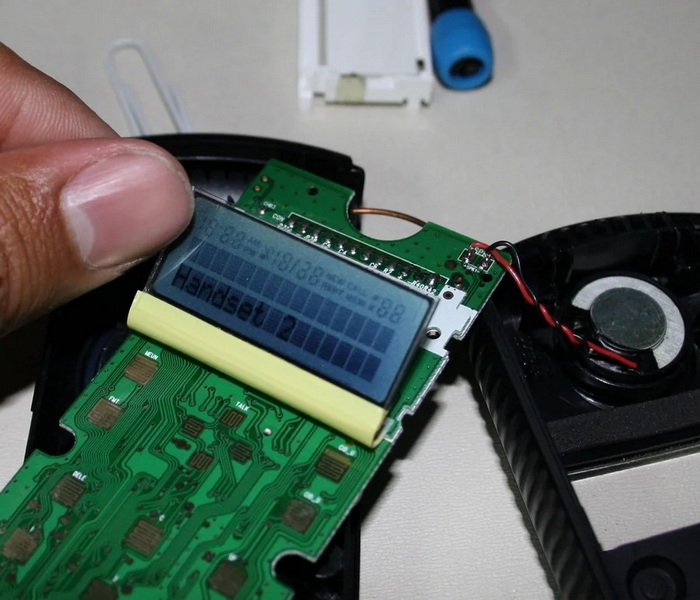

1. Examine ribbon cables for signs of wear or looseness.
2. Use tweezers to ensure all connectors are firmly attached to their sockets.
If you've identified physical damage (e.g., cracked glass or dead pixels), replacing components may be necessary:
1. Remove the damaged LCD panel by unscrewing it from its frame.
2. Install a replacement panel by connecting it securely to ribbon cables and screwing it into place.
1. Reattach all components in reverse order of disassembly.
2. Secure loose cables with adhesive tape if necessary.
3. Power on your device and check if the issue has been resolved.
Dead pixels can sometimes be revived using software tools that flash colors rapidly across the screen or by gently massaging the affected area with a soft cloth.
Flickering is often caused by loose connections:
1. Ensure all ribbon cables are securely attached.
2. Test your device with another power adapter if possible.
Discoloration may result from backlight issues:
1. Inspect and replace damaged backlight components if necessary.
2. Check polarizers for scratches or misalignment.
While many LCD issues can be resolved at home, some problems require professional expertise:
- Severe physical damage that affects multiple layers of the screen.
- Internal component failures such as T-con board malfunctions.
- Lack of proper tools or technical knowledge for complex repairs.
Professional repair services may cost between $50 and $300 depending on your device type and issue severity but can save time and prevent further damage.
Repairing an LCD display doesn't have to be intimidating! By understanding how these screens work and following this detailed guide, you can address common issues like loose connections, dead pixels, or cracked screens yourself—saving both time and money in many cases. However, for more complex problems or severe damage, seeking professional help is always a wise choice.
Remember to handle all components carefully during repairs and take precautions such as powering off your device before starting work.
If your screen has visible cracks, severe discoloration, unresponsive pixels even after troubleshooting, or fails to display anything at all despite powering on properly, it likely needs replacement.
Minor cracks might be temporarily fixed using adhesive solutions like UV glue kits; however, significant cracks usually require full replacement for proper functionality.
- Always power off your device before starting repairs.
- Use anti-static tools where possible to prevent damaging sensitive electronics.
- Avoid applying excessive force when handling delicate parts like ribbon cables.
Symptoms include flickering screens, partial display issues (e.g., half-black screens), distorted images/colors, or no image at all despite functional backlighting.
The cost varies depending on factors like device type (smartphone vs laptop), extent of damage (minor vs major), and location but typically ranges from $50–$300 USD.
