LCD (Liquid Crystal Display) modules are widely used in electronics projects due to their versatility, low power consumption, and ease of use. From digital clocks and weather stations to home automation systems and gaming devices, LCDs play a crucial role in displaying information in a user-friendly format.
This guide focuses on building a 16x2 character LCD display using an Arduino microcontroller. A 16x2 LCD can display two rows of text, each with up to 16 characters, making it ideal for small projects that require text-based output.
Before diving into the project, gather the following materials:
- Arduino Uno (or any compatible board such as Mega or Nano)
- 16x2 Character LCD Module (HD44780 compatible)
- Potentiometer (10k ohms) for contrast adjustment
- Breadboard for prototyping
- Jumper Wires for connections
- USB Cable to connect Arduino to your computer
- Optional: I2C Module for simplified wiring
- Screwdriver (for adjusting the potentiometer)
- Soldering iron (if you plan to make permanent connections)
LCDs work by manipulating liquid crystals to control light passing through them, creating visible characters or graphics on the screen. The 16x2 LCD module used in this project is based on the HD44780 controller, which is compatible with Arduino's LiquidCrystal library.
1. Two Rows of Text: Each row can display up to 16 characters.
2. Custom Characters: You can create custom symbols or icons using pixel mapping.
3. Backlight: Provides visibility in low-light conditions.
4. Contrast Adjustment: Controlled via a potentiometer for optimal text clarity.

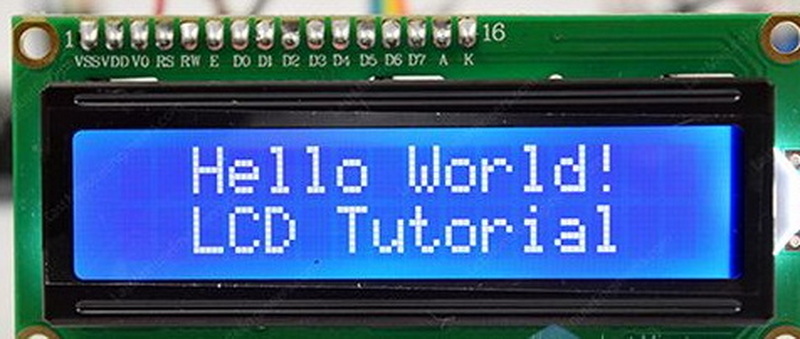

The LCD module has 16 pins, each serving a specific purpose:
- Power pins (VSS, VDD) for ground and +5V supply.
- Control pins (RS, RW, E) for sending commands and data.
- Data pins (D0-D7) for communication between the microcontroller and the LCD.
- Backlight pins (A, K) for controlling illumination.
An LCD display operates by receiving commands and data from a microcontroller like Arduino. These commands determine what appears on the screen—whether it's text, numbers, or custom graphics.
When connected to an Arduino, the LiquidCrystal library simplifies communication by providing pre-built functions to control the display. For example:
- `lcd.begin()` initializes the display with specified dimensions.
- `lcd.print()` outputs text on the screen.
- `lcd.setCursor()` positions the cursor at a specific location.
Understanding these basics will help you customize your display later in this tutorial.
Proper wiring is crucial for your LCD display to function correctly. Follow these steps:
1. Place your 16x2 LCD module onto a breadboard.
2. Connect the VSS pin (ground) of the LCD to GND on your Arduino board.
3. Connect VDD (power supply) to +5V on your Arduino.
4. Attach VO (contrast adjustment) to the middle pin of a potentiometer; connect one side of the potentiometer to GND and the other side to +5V.
5. Connect RS (Register Select) to digital pin 12 on your Arduino.
6. Connect E (Enable) to digital pin 11.
7. Connect data pins D4-D7 of the LCD to digital pins 5, 4, 3, and 2 on your Arduino.
8. If using an I2C module:
- Connect SDA (data line) to A4 on Arduino Uno.
- Connect SCL (clock line) to A5.
Once all connections are made, power up your Arduino using a USB cable connected to your computer or an external power source.
Turn the potentiometer knob until you see characters clearly displayed on the screen.
To program your display, you'll use Arduino IDE along with built-in or external libraries like LiquidCrystal or LiquidCrystal_I2C.
1. Initialization: Set up dimensions and communication mode.
2. Cursor Positioning: Place text at specific locations using rows and columns.
3. Dynamic Updates: Display real-time data from sensors or user inputs.

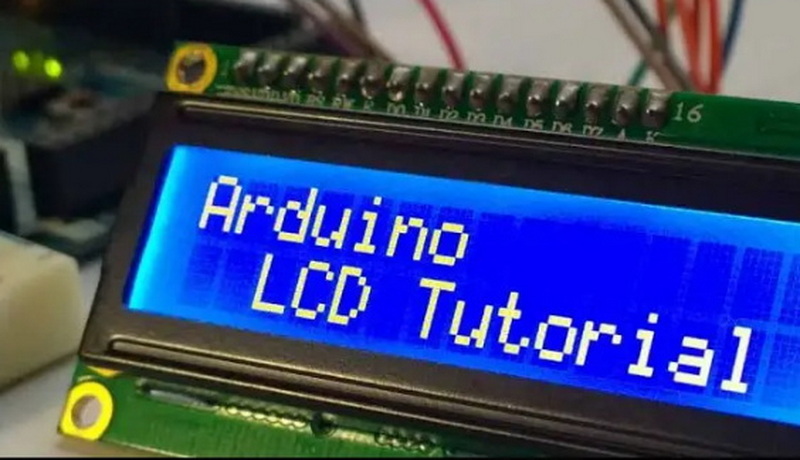

- Displaying static messages like “Hello World!”
- Creating scrolling text effects.
- Showing sensor readings such as temperature or humidity.
Once your code is uploaded successfully, test your setup by observing what appears on the screen.
1. Scrolling Text: Create dynamic displays by scrolling messages across rows.
2. Custom Characters: Design unique symbols like smiley faces or arrows using pixel mapping tools available online.
3. Sensor Integration: Pair your display with sensors like DHT11/22 for temperature and humidity readings or ultrasonic sensors for distance measurement.
For more advanced projects, consider integrating additional features such as:
- Real-time clocks (RTC modules).
- Multi-language support using custom fonts.
- Interactive menus controlled by buttons or rotary encoders.
LCD displays are not limited to simple text output—they can be used in various innovative applications:
1. Weather Stations: Combine with sensors like BMP280 or DHT22 to show temperature, humidity, and pressure data.
2. Digital Clocks: Use RTC modules like DS3231 for accurate timekeeping.
3. Home Automation Systems: Display system status or sensor alerts in smart home setups.
4. Gaming Devices: Create simple games like Tic-Tac-Toe or Snake using buttons for input.
These applications demonstrate how versatile programmable LCD displays can be when paired with creative ideas.
If your display isn't working as expected, consider these troubleshooting tips:
1. No Display Output:
- Check wiring connections carefully.
- Ensure proper power supply (+5V).
- Adjust contrast using the potentiometer.
2. Flickering Screen:
- Verify stable power connections.
- Avoid loose jumper wires on the breadboard.
3. Incorrect Characters Displayed:
- Confirm that your code matches hardware configuration.
- Double-check pin assignments in your code.
4. Backlight Not Working:
- Ensure backlight pins are properly connected.
- Test with another LCD module if necessary.
Building a programmable LCD display is an excellent way to enhance your knowledge of electronics and programming while creating something practical and visually appealing. By following this guide, you've learned how to set up hardware connections, program an Arduino board, and customize your display for various applications.
Whether you're building a weather station, digital clock, or interactive menu system, an LCD display adds functionality and professionalism to your projects.
An I2C module simplifies wiring by reducing multiple data lines into just two (SDA and SCL). It also saves GPIO pins on your Arduino board while making connections cleaner and easier to manage.
Brightness is controlled through backlight settings if supported by your LCD module or by adding resistors/transistors in series with backlight pins A/K.
Yes! You can use Raspberry Pi, ESP32/ESP8266, STM32 boards, or any microcontroller that supports similar libraries for interfacing with HD44780-compatible displays.
Double-check wiring connections between your Arduino board and LCD module; ensure all components are powered correctly (+5V). Also verify that contrast adjustment via potentiometer is set appropriately.
While character-based displays are primarily designed for text output, you can create simple graphics by defining custom characters using pixel mapping techniques within its limited resolution constraints.
