7-segment LCD (Liquid Crystal Display) displays are ubiquitous in modern electronic devices, serving as a crucial interface for displaying numerical and, in some cases, alphabetical information. These displays, characterized by their simple design, low power consumption, and ease of readability, are composed of seven distinct segments arranged in a figure-eight configuration, with an optional eighth segment representing a decimal point. Their widespread use stems from their versatility and reliability in various applications.

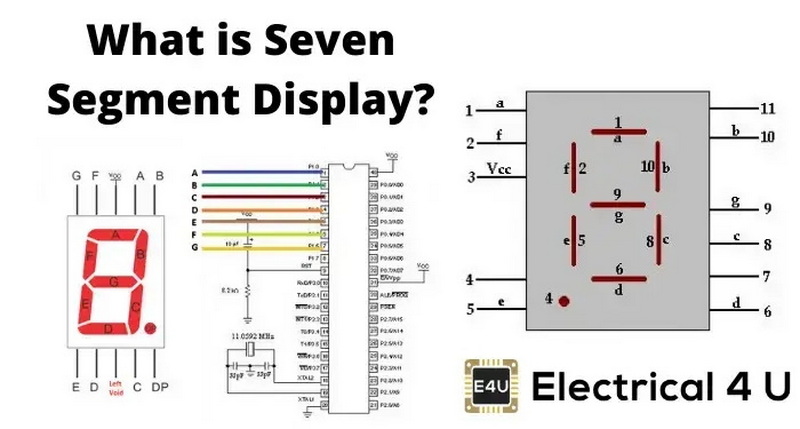

The design of 7-segment displays is remarkably straightforward, contributing to their widespread adoption. Each display comprises seven segments, typically labeled 'a' through 'g,' which can be individually activated to form various characters. These segments are strategically arranged to mimic the shape of the number '8,' enabling the display of digits from 0 to 9, as well as certain letters. An additional segment, often labeled 'dp' or 'h,' is used to represent the decimal point, enhancing the display's functionality.
The operation of a 7-segment display relies on selectively energizing the appropriate segments to create the desired character. This process is typically controlled by a microcontroller or a dedicated driver circuit, which interprets the input data and activates the corresponding segments. For example, to display the digit '1,' only segments 'b' and 'c' are illuminated, while the remaining segments remain inactive. Similarly, to display the digit '7,' segments 'a,' 'b,' and 'c' are activated. This simple yet effective mechanism enables the display to represent a wide range of numerical and alphabetical characters.
While the fundamental principle remains the same, 7-segment displays can be implemented using different technologies. The two primary types are LED (Light Emitting Diode) and LCD (Liquid Crystal Display) based displays.
LED 7-Segment Displays:
LED displays utilize light-emitting diodes to generate the visual output. These LEDs are arranged in the characteristic seven-segment pattern. When a segment is energized, the corresponding LED emits light, making it visible to the user. LED displays are known for their high brightness and wide viewing angles, making them suitable for applications where visibility is critical. However, they tend to consume more power compared to LCD displays.
LCD 7-Segment Displays:
LCD displays, on the other hand, employ liquid crystal technology to modulate light and create the desired characters. These displays consist of a layer of liquid crystal material sandwiched between two transparent electrodes. When an electric field is applied to a segment, the liquid crystal molecules align in a specific orientation, either allowing light to pass through or blocking it. This modulation of light creates the visual representation of the character. LCD displays are characterized by their low power consumption, making them ideal for battery-powered devices.
LCD 7-segment displays operate on the principle of liquid crystal modulation. Liquid crystals are substances that exhibit properties between those of a conventional liquid and a solid crystal. Their molecules can be aligned by an electric field, which alters their optical properties.
An LCD segment consists of a layer of liquid crystal material placed between two transparent electrodes and two polarizing filters. In the absence of an electric field, the liquid crystal molecules are arranged in a twisted nematic structure, which rotates the polarization of light passing through it. The two polarizing filters are oriented perpendicularly, so light that passes through the first filter is blocked by the second filter, making the segment appear dark.
When an electric field is applied to the electrodes, the liquid crystal molecules align themselves parallel to the field, untwisting the nematic structure. This allows light to pass through the second polarizing filter, making the segment appear bright. By selectively applying an electric field to the appropriate segments, the desired characters can be displayed.
LCD 7-segment displays offer several advantages over other display technologies, including:
1. Low Power Consumption: LCDs consume significantly less power than LED displays, making them ideal for battery-powered devices and energy-conscious applications.
2. High Contrast: LCDs offer excellent contrast, ensuring clear and legible characters even in bright ambient light conditions.
3. Wide Viewing Angles: LCDs provide wide viewing angles, allowing users to view the display from various positions without significant distortion or loss of clarity.
4. Long Lifespan: LCDs have a long operational life, providing years of reliable performance with minimal maintenance.
5. Cost-Effectiveness: LCDs are generally more cost-effective than other display technologies, making them an attractive option for budget-sensitive applications.
The versatility and advantages of 7-segment LCD displays have led to their widespread adoption in a variety of applications, including:
1. Digital Clocks and Watches: 7-segment LCDs are commonly used in digital clocks and watches to display the time in a clear and easily readable format. Their low power consumption ensures long battery life.
2. Calculators: Calculators rely on 7-segment LCDs to display numerical values and calculation results. The high contrast and wide viewing angles ensure accurate and comfortable viewing.
3. Automotive Applications: 7-segment LCDs are integrated into automotive dashboards to display information such as speed, fuel level, and engine temperature. Their durability and reliability make them suitable for the harsh automotive environment.
4. Industrial Control Systems: Industrial control systems utilize 7-segment LCDs to display process parameters, setpoints, and alarm conditions. Their clear and concise display format facilitates efficient monitoring and control.
5. Consumer Electronics: 7-segment LCDs can be found in a wide range of consumer electronics products, including thermostats, digital multimeters, and audio equipment. Their low power consumption and cost-effectiveness make them a popular choice for these applications.
6. Medical Devices: LCD 7-segment displays are used in medical devices like blood glucose meters and heart rate monitors, providing clear and easily readable measurements.
7. Elevators: Displaying floor numbers in elevators.

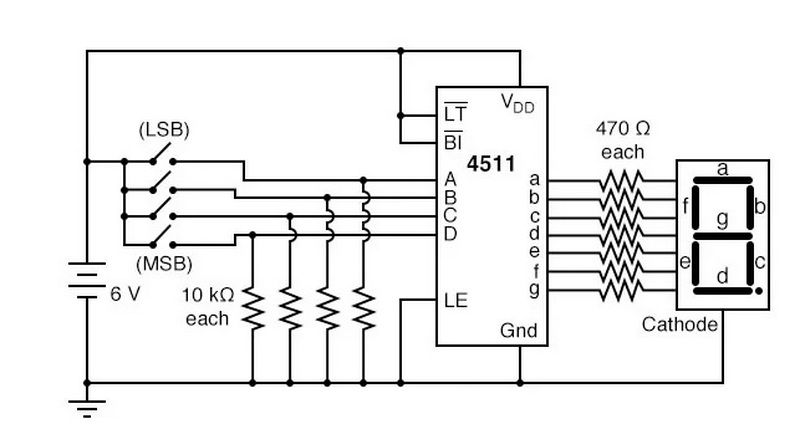

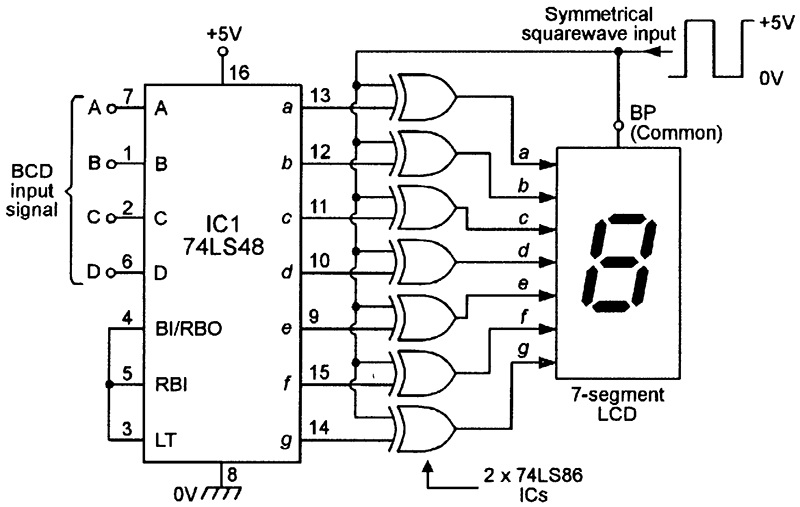

To effectively drive a 7-segment display, especially in digital systems, a BCD (Binary Coded Decimal) to 7-segment decoder is often employed. This decoder acts as an intermediary between the digital logic circuit and the display itself. BCD is a common way to represent decimal numbers in binary format, where each decimal digit (0-9) is encoded into a 4-bit binary number.
The decoder's primary function is to accept this 4-bit BCD input and convert it into the appropriate signals needed to activate the correct segments on the 7-segment display. Essentially, it translates the binary representation of a digit into the specific combination of segments that must be illuminated to visually represent that digit.
How It Works:
The decoder consists of a logic circuit designed to interpret the BCD input and generate seven output signals, one for each segment of the display (a through g). The logic within the decoder is based on a truth table that defines the relationship between the BCD input and the corresponding segment outputs. For each BCD input, the decoder activates the appropriate combination of segment outputs, causing the corresponding segments on the 7-segment display to light up and form the desired digit.
Example:
Let's say the BCD input is 0101, which represents the decimal digit 5. The decoder would receive this input and, based on its internal logic, activate the segments a, c, d, f, and g. These segments, when illuminated, form the visual representation of the digit 5 on the 7-segment display.
Designing a 7-segment display decoder circuit involves understanding the relationship between the desired digit to be displayed and the segments that need to be activated. This relationship is formally defined in a truth table. The truth table lists all possible BCD inputs (0000 to 1001, representing digits 0 to 9) and the corresponding state (on or off) of each of the seven segments (a to g).

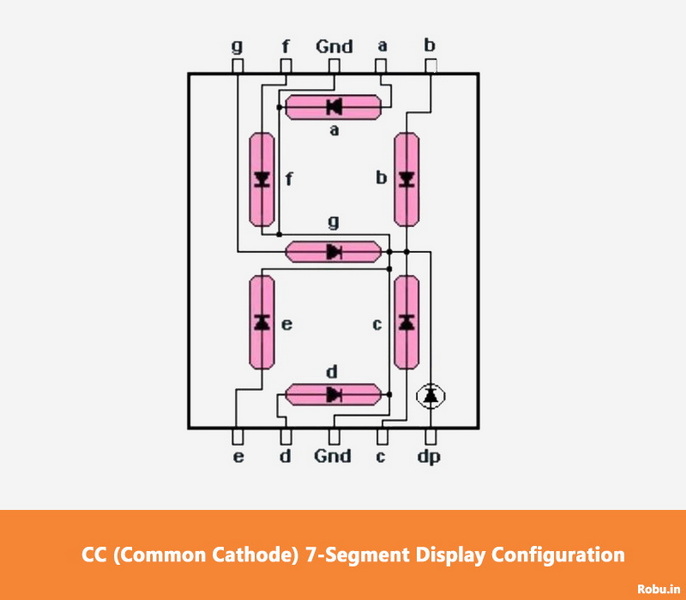

Common Cathode vs. Common Anode:
The circuit design also depends on whether the 7-segment display is common cathode or common anode. In a common cathode display, all the cathodes (negative terminals) of the LEDs are connected together to a common ground. To activate a segment, a positive voltage is applied to its anode (positive terminal). In a common anode display, all the anodes are connected together to a common positive voltage. To activate a segment, a ground (or low voltage) is applied to its cathode.
Circuit Design Steps:
1. Create the Truth Table: Define the desired segment activation pattern for each digit (0-9).
2. Choose Display Type: Determine whether you are using a common cathode or common anode display. This will affect the logic of the decoder circuit.
3. Implement Logic Gates (or use a Decoder IC): Based on the truth table and the type of display, design a logic circuit using AND, OR, and NOT gates to generate the appropriate segment control signals. Alternatively, use a dedicated BCD to 7-segment decoder IC, which simplifies the design process.
4. Connect the Circuit: Connect the BCD inputs to the decoder circuit, and connect the decoder outputs to the corresponding segments of the 7-segment display.
5. Add Current Limiting Resistors: Include current-limiting resistors in series with each segment of the display to prevent damage to the LEDs.
- Multiplexing: For applications requiring multiple digits, multiplexing is a common technique. Instead of using a separate decoder and display for each digit, a single decoder and display are shared among all digits. The digits are rapidly switched on and off, one at a time, creating the illusion that all digits are displayed simultaneously.
- Brightness Control: The brightness of the display can be controlled by adjusting the current flowing through the segments. This can be achieved using pulse-width modulation (PWM) or by varying the voltage applied to the segments.
- Error Handling: In practical applications, it's important to consider error handling. The decoder should be designed to handle invalid BCD inputs gracefully, preventing the display from showing garbage or potentially damaging the LEDs.
7-segment LCD displays remain a vital component in countless electronic devices, offering a simple, efficient, and visually clear means of displaying numerical and alphabetical information. Their continued popularity stems from their low power consumption, high contrast, wide viewing angles, and cost-effectiveness. By understanding the principles behind their operation, designers and engineers can effectively integrate these displays into a wide range of applications, from basic digital clocks to sophisticated industrial control systems.
A 7-segment display is an electronic display device consisting of seven individual light-emitting segments arranged in a specific pattern. By selectively illuminating these segments, it can display numerical digits (0-9) and some limited alphabetical characters.
Each of the seven segments is controlled independently. To display a specific digit or character, the corresponding segments are activated (turned on) while the remaining segments are deactivated (turned off). The combination of illuminated segments forms the desired symbol.
The primary objective of a 7-segment display is to provide a simple, easily readable, and visually recognizable way to display numerical information. It serves as a crucial interface for presenting data in various electronic devices and systems.
Each segment corresponds to a specific LED or LCD element, and the segments are arranged to form digits 0 through 9 when activated in different combinations. Applying power to the correct segments creates the corresponding number on the display.
7-segment displays are readily available from various sources, including electronic component suppliers, online marketplaces (e.g., Amazon, eBay), and local electronics stores. They come in various sizes, colors, and configurations to suit different project needs.
