Upgrading a Chinese diesel heater with a new LCD display can significantly enhance its functionality and user experience. These heaters are popular for their affordability and efficiency, particularly among van lifers and outdoor enthusiasts. This article will guide you through the process of upgrading your Chinese diesel heater, focusing on the benefits of a new LCD display, installation tips, and troubleshooting common issues.
Chinese diesel heaters are compact heating units designed for various applications, including vehicles, boats, and off-grid living. They typically operate on 12V or 24V systems and use diesel fuel to generate heat. The basic components of a diesel heater include:
- Fuel Pump: Delivers diesel to the combustion chamber.
- Combustion Chamber: Where the fuel is ignited.
- Heat Exchanger: Transfers heat to the air or water.
- Exhaust System: Expels combustion gases.
- Controller: Manages the heater's operations.
Upgrading to a new LCD display offers several advantages:
- Enhanced User Interface: Newer displays often feature clearer visuals and intuitive controls.
- Improved Functionality: Advanced models may provide additional settings for temperature control, timer functions, and fuel consumption monitoring.
- Remote Control Options: Many modern LCD controllers come with remote capabilities, allowing users to operate the heater from a distance.
When selecting an LCD display for your diesel heater, consider the following factors:
1. Compatibility: Ensure the new controller is compatible with your specific heater model.
2. Features: Look for features that meet your needs, such as programmable timers or temperature settings.
3. User Reviews: Check reviews from other users to gauge reliability and performance.

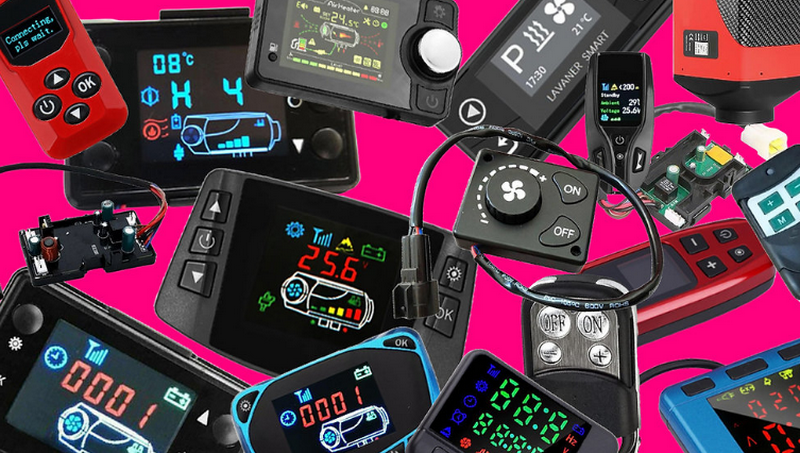

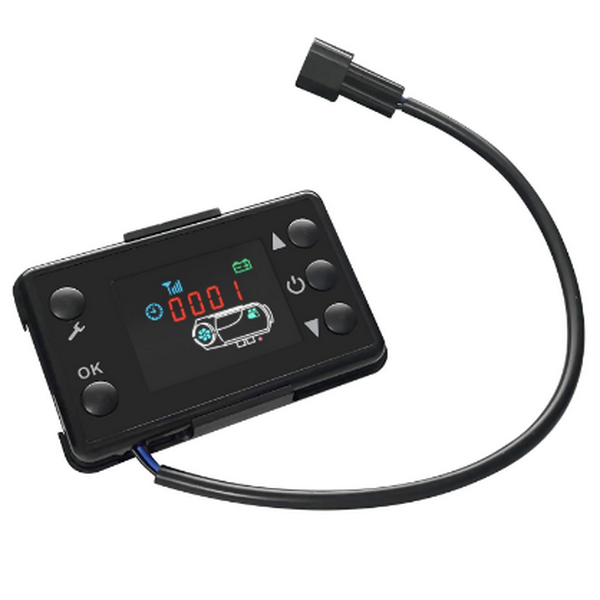

Here are some popular options for upgrading your Chinese diesel heater's LCD display:
| Model | Features | Price Range |
|---|---|---|
| RM4 PRO | Remote control, programmable settings | $20 - $30 |
| Blue LCD Controller | Clear display, easy navigation | $25 - $35 |
| Universal Controller | Compatible with various models | $30 - $40 |
Upgrading your diesel heater's LCD display involves several steps. Below is a detailed guide to help you through the installation process.
- Screwdriver set
- Wire cutters/strippers
- Electrical tape
- Multimeter (optional)
1. Power Off the Heater: Before starting any work, ensure that the heater is turned off and disconnected from power.
2. Remove the Old Controller:
- Unscrew the existing controller from its mounting location.
- Carefully disconnect the wiring harness from the back of the controller.
3. Connect the New LCD Display:
- Match the wires from the new LCD display to those of the old controller. Typically, this involves connecting power (red), ground (black), and signal wires (other colors).
- Use wire connectors or electrical tape to secure connections.
4. Mount the New Display:
- Securely mount the new LCD controller in place using screws provided with it.
- Ensure that it is positioned for easy access while operating the heater.
5. Test Functionality:
- Reconnect power to the heater and turn it on.
- Check if the new display powers up and responds correctly to input commands.
6. Final Adjustments:
- If necessary, adjust settings according to your preferences using the new interface.
After upgrading your diesel heater's LCD display, you may encounter some common issues:
1. Display Not Powering On:
- Check all connections to ensure they are secure.
- Verify that power is reaching the unit using a multimeter.
2. Incorrect Temperature Readings:
- Ensure that temperature sensors are properly connected and functioning.
- Calibrate settings if necessary.
3. Controller Not Responding:
- Reset the controller by disconnecting power for a few minutes.
- Consult the user manual for troubleshooting steps specific to your model.
Upgrading your Chinese diesel heater with a new LCD display can greatly enhance its usability and efficiency. By following this guide, you can successfully install a modern controller that meets your heating needs while enjoying improved functionality. Remember to choose compatible components and troubleshoot any issues as they arise.
No, it is essential to choose an LCD display compatible with your specific heater model to ensure proper functionality.
After installation, check if the display powers on and responds accurately to input commands. If there are issues, verify all connections.
Ensure that all electrical connections are secure and that power is reaching the unit. If problems persist, consult troubleshooting guides or seek professional help.
With basic tools and following step-by-step instructions, most users can successfully upgrade their controllers without professional assistance.
Replacement parts can typically be found on online marketplaces like Amazon or eBay, as well as specialized automotive supply stores.
