Cutting down an LCD display panel is a highly specialized process that requires precision, expertise, and the right tools. Whether you're a professional working on custom electronics or a hobbyist considering a DIY project, understanding the intricacies of this process is essential. In this article, we'll explore whether it's possible to cut an LCD panel, the tools and techniques involved, the risks and challenges, and the potential applications of such modifications. We'll also include visual aids and videos (where applicable) to provide a clearer understanding.

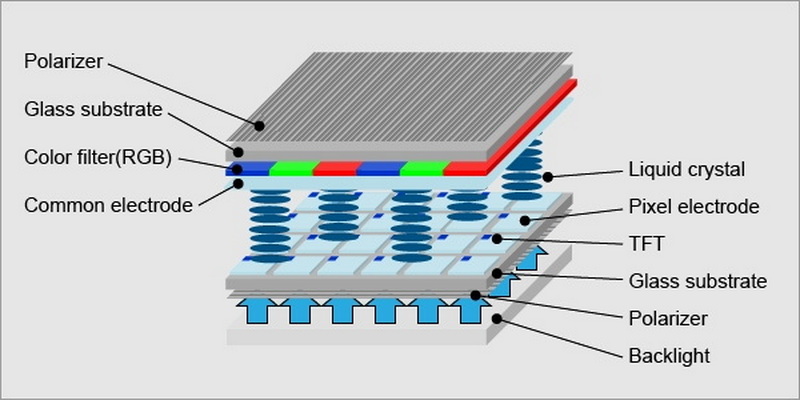

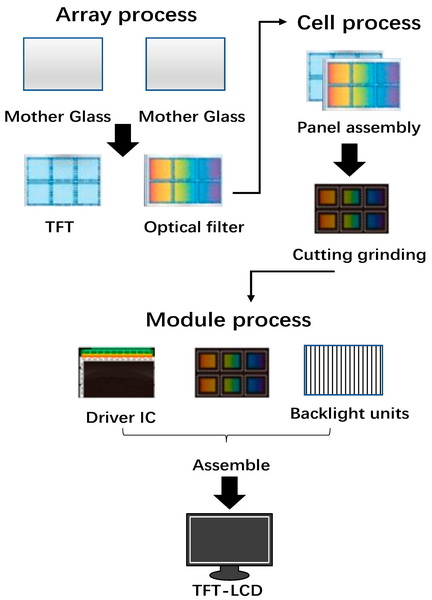

LCD (Liquid Crystal Display) panels are widely used in devices such as televisions, smartphones, laptops, and industrial equipment. These panels consist of multiple delicate layers that work together to produce images:
- Glass Substrates: Thin sheets of glass that encase the liquid crystals.
- Liquid Crystal Layer: A fluid layer that manipulates light to form images.
- Polarizing Filters: Control the direction of light passing through the panel.
- Backlight Unit (BLU): Provides illumination for the display.
- Thin-Film Transistors (TFTs): Control individual pixels on the screen.
- Circuitry: Includes gate lines, data lines, and electrodes to drive the display.
The complexity and fragility of these components make cutting an LCD panel a challenging task.
There are several reasons why someone might want to cut down an LCD panel:
1. Custom Displays:
- Engineers or designers may need smaller or uniquely shaped screens for specific projects, such as wearable devices or embedded systems.
2. Repair Work:
- Salvaging functional parts from a damaged display can reduce waste and save costs.
3. Prototyping:
- Innovators working on new devices may require custom-sized displays for testing and development.
4. Educational Purposes:
- Researchers or educators may cut LCD panels to study their internal structure or demonstrate how they work.
5. Artistic Projects:
- Artists and creators may repurpose broken or surplus panels into creative installations or interactive art pieces.
To successfully cut an LCD panel, you'll need specialized tools designed for precision work:
- Diamond-Tipped Scriber: Used to create scribe lines on the glass substrate.
- Cutting Wheel or Laser Cutter: For precise cutting along marked lines.
- Splitting Machine: Applies controlled pressure to break the glass cleanly along scribe lines.
- Vacuum Environment Chamber: Prevents dust contamination during cutting.
- Protective Gear: Gloves and goggles to ensure safety while handling sharp materials.
- Polishing Tools: Smooth out rough edges after cutting.
There are three primary techniques used for cutting LCD panels:
1. Scribing and Breaking:
- This traditional method involves scoring the glass with a diamond-tipped tool and then applying pressure to break it along the scribe line.
2. Laser Cutting:
- A high-powered laser precisely cuts through the panel without direct contact. This method is more accurate but requires advanced equipment.
3. Mechanical Cutting:
- A cutting wheel is used to score the glass, which is then broken manually or with a splitting machine.
Each technique has its advantages and limitations, depending on the project's requirements.

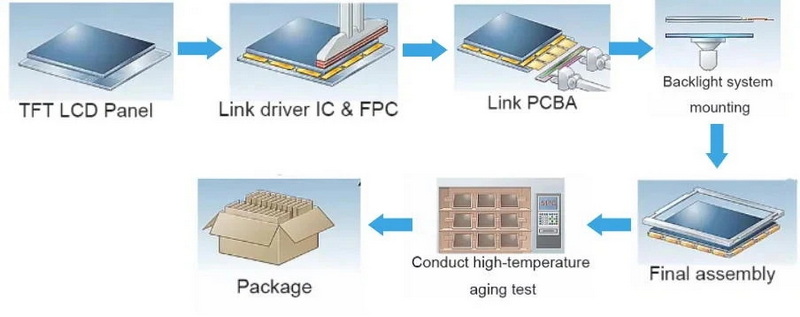

Here's a detailed guide to cutting an LCD panel:
Before starting, ensure you have all necessary tools and safety equipment. Work in a clean environment to minimize contamination risks.
1. Remove any external components such as bezels or frames from the LCD panel.
2. Place the panel in a vacuum chamber if available, as this prevents dust particles from entering sensitive layers.
Using a diamond-tipped scriber or laser cutter, carefully mark the desired cut line on the glass substrate. Double-check measurements to ensure accuracy.
Depending on your chosen method:
- For scribing, score along the marked line with consistent pressure.
- For laser cutting, follow the pre-marked line using appropriate laser settings.
Apply gentle but firm pressure along the scribe line using a splitting machine or by hand (if experienced). Ensure even force distribution to avoid uneven breaks.
Inspect the edges for sharpness or irregularities. Use polishing tools to smooth out rough edges if necessary. Reassemble or integrate the modified panel into your project as required.
Cutting an LCD panel is not without its challenges:
1. Fragility of Glass:
- The thin glass substrates are prone to cracking or shattering if mishandled.
2. Alignment Issues:
- Misaligned cuts can result in unusable pieces.
3. Contamination Risks:
- Dust or debris can damage internal components during cutting.
4. Specialized Equipment Costs:
- Tools like vacuum chambers and laser cutters can be prohibitively expensive for individuals.
5. Electrical Damage:
- Cutting through circuit lines may compromise functionality in parts of the display.
6. Reduced Durability:
- Modified panels may lose structural integrity over time due to weakened edges.
Modified LCD panels have numerous applications across industries:
1. Medical Devices:
- Custom-sized displays are often used in portable diagnostic equipment.
2. Automotive Systems:
- Unique screen shapes are required for dashboards and infotainment systems.
3. Wearable Technology:
- Smartwatches and fitness trackers rely on small, precisely cut displays.
4. Industrial Equipment:
- Tailored screens are used in machinery interfaces and control panels.
5. Art Installations:
- Artists use modified displays in interactive exhibits or digital sculptures.
If you're considering cutting an LCD panel, keep these tips in mind:
1. Always practice on scrap panels before attempting your main project.
2. Use high-quality tools designed specifically for glass cutting.
3. Work slowly and methodically to avoid mistakes.
4. Keep your workspace clean to minimize contamination risks.
5. Consult professionals if you're unsure about any step in the process.
Cutting down an LCD display panel is possible but requires careful planning, specialized tools, and technical expertise to achieve success without damaging delicate components. While it can be done by professionals in controlled environments, it may not be practical for casual DIY enthusiasts due to high costs and risks involved.
Whether you're working on custom electronics, salvaging parts from damaged screens, or pursuing artistic projects, understanding this process can open up new possibilities for innovation and creativity with LCD technology.
Cutting an LCD panel at home is challenging due to its delicate structure and the need for specialized tools like vacuum chambers and laser cutters. It's generally recommended for professionals or those with access to appropriate equipment.
Damaging electrical connections can render parts of the screen non-functional, leading to permanent display issues such as dead pixels or loss of backlight functionality.
Laser cutting offers higher precision but requires advanced equipment and expertise compared to mechanical methods like scribing and breaking, which are more accessible but less accurate.
Reusing both pieces depends on whether electrical connections remain intact post-cutting; typically, only one piece will retain full functionality unless carefully planned.
Always wear protective gear (gloves and goggles) when handling sharp materials, work in a clean environment to prevent contamination, and ensure proper ventilation if using lasers or other machinery that generates fumes.
