The LCD display flex cable is a crucial component in modern electronic devices, responsible for transmitting data and power between the display panel and the motherboard. However, this seemingly simple cable can become a source of significant problems if mishandled or damaged. One of the most severe issues it can cause is shorting the motherboard, which can lead to costly repairs or even permanent damage to your device.
In this comprehensive guide, we'll explore how an LCD display flex cable can short the motherboard, the symptoms of such an issue, preventive measures, repair options, and answers to frequently asked questions. By the end of this article, you'll have a thorough understanding of how to handle flex cables safely and avoid potential damage.

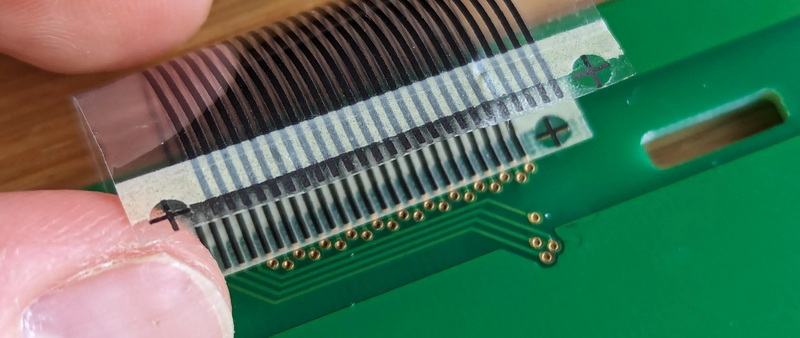

The LCD display flex cable is a thin, flexible ribbon made of conductive materials that connects the LCD screen to the motherboard. It serves as a bridge for transmitting:
- Data Signals: Responsible for displaying images and videos on the screen.
- Power Supply: Provides power to the screen's backlight and other components.
- Grounding: Ensures electrical stability by connecting circuits to a common ground.
Flex cables are designed to be lightweight and flexible, making them ideal for compact devices like smartphones, laptops, and tablets. However, their delicate nature also makes them prone to wear and tear, especially when subjected to frequent handling or improper installation.
A short circuit occurs when an unintended path allows electrical current to flow where it shouldn't. This can result in overheating, sparks, or even permanent damage to sensitive components like the motherboard. Here are some common scenarios in which an LCD flex cable might short the motherboard:

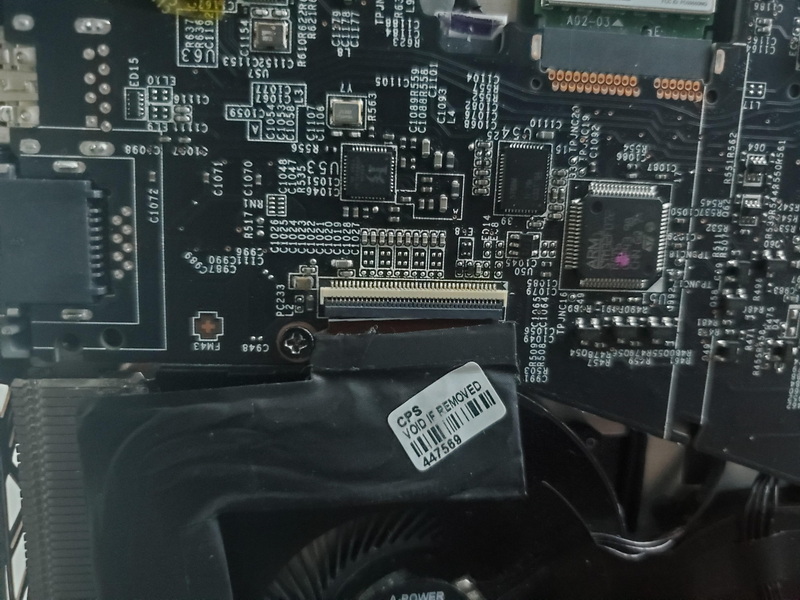

When the flex cable is not properly aligned with its connector on the motherboard, it can cause electrical contacts to touch unintended pins. This misalignment can lead to a short circuit by creating direct connections between power and ground lines.

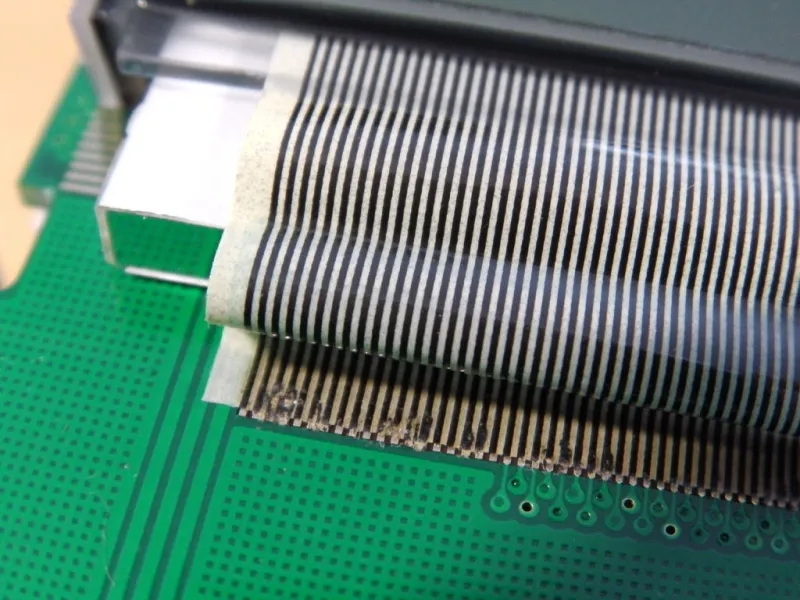

Over time, repeated bending or improper handling can cause cracks in the flex cable's conductive traces. These cracks might expose wires that could come into contact with each other or with other components on the motherboard, leading to a short.
Connecting or disconnecting the flex cable while the device is powered on increases the risk of a short circuit. The sudden surge of electricity can create sparks as connectors make or break contact.
Dust, dirt, or small metallic particles lodged in the connectors can disrupt normal electrical pathways. These foreign objects may create unintended connections that result in shorts.
In rare cases, manufacturing defects in either the flex cable or its connectors can lead to internal shorts. Poor-quality soldering or improperly insulated wires are common culprits.
A shorted motherboard can exhibit several symptoms depending on the severity of the damage:
1. No Display Output: The screen may remain black even though other components appear functional.
2. Device Fails to Power On: In severe cases, a shorted motherboard may prevent the device from turning on altogether.
3. Burn Marks or Odors: Physical signs like burn marks near connectors or a burnt smell indicate severe electrical damage.
4. Intermittent Functionality: The device may work sporadically due to unstable electrical connections.
5. External Display Works but Internal Does Not: If only the internal display fails while external monitors function properly, it's likely that the issue lies with the flex cable or its connection.
Preventing damage caused by an LCD display flex cable requires careful handling and regular maintenance. Here are some practical tips:
Always turn off your device and disconnect all power sources (battery and charger) before working on internal components.
Check both the flex cable and its connectors for signs of wear, such as frayed edges, bent pins, or discoloration.
While flex cables are designed to be flexible, excessive bending or twisting can weaken their conductive traces over time.
When installing or removing a flex cable, use appropriate tools like plastic spudgers or tweezers to avoid damaging delicate components.
If you're repairing a device, use test flex cables during initial diagnostics and testing stages to minimize wear on original parts.
If your motherboard has been shorted due to an LCD flex cable issue, here are some steps you can take:
- Connect your device to an external monitor to determine if only the internal display is affected.
- Inspect connectors for visible signs of damage like burn marks or broken pins.
- Replace faulty flex cables with new ones that match your device's specifications.
- If connectors on the motherboard are damaged, they may need professional repair or replacement.
Technicians often use tools like multimeters and oscilloscopes to identify specific areas where shorts have occurred.
For severe cases where DIY repairs are not feasible, consult a professional technician who specializes in motherboard repairs.
To better illustrate how these issues occur in real-world scenarios, here are two examples:
A user attempting to replace their smartphone screen accidentally connects the new LCD flex cable while the phone is still powered on. Sparks occur at the connector site due to improper alignment, resulting in a black screen even after reassembly.
In laptops with poorly designed hinges, repeated opening and closing of the lid causes excessive stress on the LCD flex cable. Over time, this leads to exposed wires that short against metal parts inside the laptop chassis.
The LCD display flex cable is an essential yet delicate component that requires careful handling during installation and maintenance. Improper connections, physical damage, and power-on handling are common causes of short circuits that can damage your motherboard. By following preventive measures and seeking timely repairs when needed, you can avoid costly damages and ensure your device remains functional for years to come.
Here are answers to some frequently asked questions about LCD display flex cables and their impact on motherboards:
Sparks occur when electricity jumps across gaps due to improper alignment or insertion of the flex cable while power is still connected.
Common signs include no display on the screen, black screens despite power indicators being active, external monitors working fine while internal displays fail, and visible burn marks near connectors.
Yes, but it requires precision tools like microscopes and UV solder masks for repairing broken pins or traces on the cable. For severe cases involving extensive damage, professional assistance is recommended.
Universal cables may work if they match pin counts and connection patterns but could fail if they don't meet specific requirements like impedance or current capacity.
Always disconnect power before handling components, avoid excessive bending of cables during installation/removal processes, and use test cables during repairs when possible.
