● Introduction to OLED and Miniaturization
● The Smallest OLED Screens on the Market
>> 1. The 0.32-Inch OLED 60x32 Display — The Current Record Holder
>> 2. The 0.42-Inch OLED 72x40 Display with Resin Lens
>> 3. The 0.71-Inch 48x64 OLED Display
>> 4. Micro OLED (OLED on Silicon) Technology
● Advantages of Small OLED Screens
● Applications of the Smallest OLED Screens
● Challenges and Future Trends
● The Evolution of OLED Miniaturization
● Manufacturing Techniques Behind Tiny OLED Screens
● Comparing Small OLED Screens to Other Display Technologies
● Future Prospects: Beyond the Smallest OLED
>> 1. What is the smallest OLED screen currently on the market?
>> 2. How does Micro OLED technology enhance small displays?
>> 3. What are typical uses for the smallest OLED screens?
>> 4. Are the smallest OLED screens color or monochrome?
>> 5. What advantages do OLEDs have over LCDs in small sizes?
OLED (Organic Light-Emitting Diode) technology has revolutionized display screens with its vibrant colors, deep blacks, and energy efficiency. While large OLED screens dominate TVs and smartphones, there is a fascinating race toward miniaturization in the display industry. This article explores the smallest OLED screens available today, their technology, applications, and future prospects.
OLED screens consist of organic compounds that emit light when electrically charged. Unlike LCDs, OLED pixels emit their own light, enabling true blacks and high contrast ratios. This self-emissive property allows OLEDs to be ultra-thin, flexible, and energy-efficient.
The trend in display tech is often toward larger screens, but miniaturization of OLEDs is critical for applications like wearables, medical devices, augmented reality (AR), virtual reality (VR), and microelectronics. Smaller OLEDs pack high resolution into tiny spaces, enabling new product designs and functionalities.

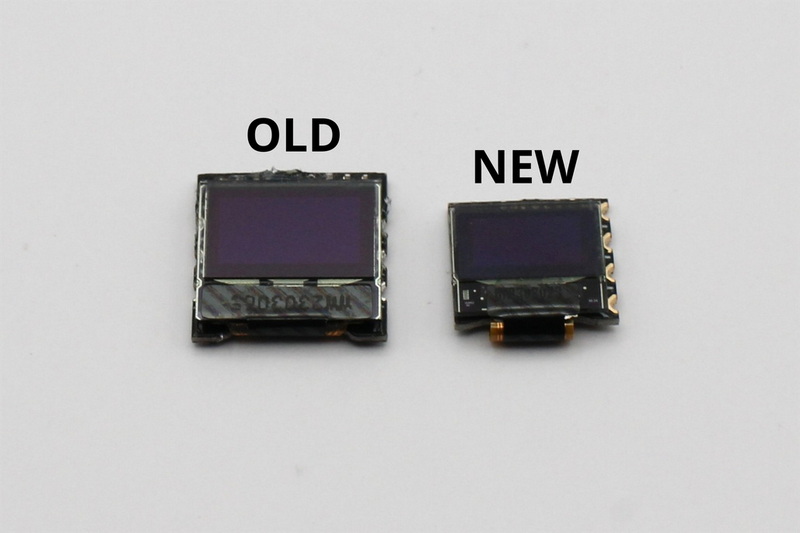

The world's smallest commercially available OLED screen measures just 0.32 inches diagonally, with a resolution of 60x32 pixels. This tiny display measures approximately 11.5mm x 11.5mm x 2.4mm and is designed with castellated pads and ultra-compact components to save space, making it ideal for embedded systems and DIY projects.
Despite its minuscule size, it offers crisp, clear visuals and the hallmark deep blacks of OLED technology. This screen is perfect for wearable devices, miniature gaming consoles, IoT interfaces, and medical implants where space is at a premium.
Slightly larger but still ultra-compact, the 0.42-inch OLED display offers a 72x40 pixel resolution and features a custom resin lens that magnifies and enhances the visuals. This display is popular for miniature gaming devices, wearable tech, and IoT gadgets, providing vibrant colors and sharp contrasts in a tiny form factor.
One of the earliest small OLED modules, the 0.71-inch display has a resolution of 48x64 pixels. It uses a passive matrix OLED and is widely used in compact electronic devices requiring simple graphics or text display, such as indicators and small handheld devices.
Micro OLED or OLED on Silicon (OLEDoS) is a cutting-edge technology where OLED pixels are fabricated on silicon wafers instead of glass substrates. This approach enables incredibly high pixel densities — up to 4,000 pixels per inch (ppi) or more — on screens as small as 0.5 inches.
Sony Semiconductor Solutions leads in this field, producing micro OLEDs for electronic viewfinders (EVFs) in cameras, VR/AR headsets, and military applications. These displays offer ultra-high contrast ratios (up to 100,000:1), fast response times, and wide color gamuts.
Apple's Vision Pro headset features micro OLED displays, packing 4K-plus resolution into postage-stamp-sized screens for each eye, illustrating the potential of this technology in immersive devices.
- True Blacks and High Contrast: Each pixel emits its own light and can be turned off completely, allowing for perfect black levels.
- Ultra-Thin and Lightweight: No backlight is needed, reducing thickness and weight.
- Energy Efficiency: Especially when displaying dark images, small OLEDs consume less power than LCDs.
- Wide Viewing Angles: OLEDs maintain color and contrast across wide angles.
- Flexibility: OLEDs can be fabricated on flexible substrates for wearable or curved devices.
- High Pixel Density: Micro OLEDs achieve pixel densities far beyond traditional OLEDs.
- Wearable Technology: Smartwatches, fitness trackers, and health monitors benefit from compact, bright, and energy-efficient displays.
- Augmented Reality (AR) and Virtual Reality (VR): Micro OLEDs provide immersive visuals in headsets without bulk.
- Miniature Gaming Consoles: Tiny screens enable pocket-sized gaming devices with retro or new games.
- Medical Devices: Implantable or portable diagnostic tools use small OLEDs for clear readouts.
- Internet of Things (IoT): Small OLEDs serve as user interfaces for smart home devices, sensors, and controllers.
- Photography and Optics: Electronic viewfinders in cameras use micro OLEDs for high-resolution previews.
While small OLED screens offer many benefits, challenges remain:
- Manufacturing Complexity: Micro OLEDs require silicon wafer fabrication, which is costly and limited in volume.
- Supply Chain Constraints: Limited production capacity for micro OLED wafers restricts availability.
- Durability and Lifespan: Organic materials can degrade over time, especially blue OLEDs.
- Integration: Tiny displays need specialized driver electronics and connectors.
Future research aims to improve lifespan, reduce costs, and further shrink pixel sizes. New developments like perovskite LEDs promise even smaller pixels and higher pixel densities, potentially surpassing current micro OLED technology.
The journey to the smallest OLED screens began with relatively larger panels used in early smartphones and portable devices. As consumer demand shifted toward wearables and smart gadgets, manufacturers focused on shrinking OLED modules without compromising display quality.
Early small OLEDs were monochrome and low resolution, primarily used for simple indicators or text. However, advances in organic materials and fabrication techniques enabled the development of full-color microdisplays with high pixel density. This evolution has been pivotal for AR and VR devices, where screen size is limited by the need to fit displays close to the eyes while maintaining immersive visual fidelity.
Micro OLED displays now integrate millions of pixels into areas smaller than a fingernail, delivering resolutions that rival or exceed smartphone screens. This miniaturization allows for lightweight, compact devices that can deliver rich visual experiences without bulky hardware.
Producing the smallest OLED screens involves several sophisticated manufacturing steps:
- Vacuum Thermal Evaporation (VTE): Organic layers are deposited in a vacuum chamber to ensure purity and uniform thickness.
- Photolithography: Used especially in micro OLEDs to pattern pixels with extreme precision on silicon wafers.
- Encapsulation: Protects the delicate organic layers from moisture and oxygen, which can degrade OLED performance.
- Driver Integration: Tiny displays require specialized driver chips, often integrated directly onto the silicon substrate in micro OLEDs, reducing overall size and improving performance.
These processes demand cleanroom environments and advanced equipment, contributing to the high cost and complexity of producing ultra-small OLED screens.
When evaluating the smallest displays, it's important to compare OLEDs with alternatives like LCDs, microLEDs, and e-ink:
| Feature | Small OLED Screens | Small LCD Screens | MicroLED Screens | E-Ink Displays |
|---|---|---|---|---|
| Contrast Ratio | Very high (true blacks) | Moderate (backlight bleed) | Very high | Moderate |
| Thickness | Ultra-thin | Thicker (needs backlight) | Ultra-thin | Thin but rigid |
| Power Efficiency | High (especially with dark content) | Lower (constant backlight) | Very high | Very high |
| Color Quality | Excellent, vibrant colors | Good, but less vibrant | Excellent | Monochrome or limited color |
| Flexibility | Flexible options available | Rigid | Emerging flexible tech | Rigid |
| Resolution Density | Extremely high (micro OLED) | Moderate | Very high | Low to moderate |
| Cost | High, especially micro OLED | Lower | Very high | Low |
OLED's ability to deliver superior contrast, flexibility, and energy efficiency makes it the preferred choice for the smallest, highest-quality displays available today.
The future of ultra-small OLED screens looks promising with several exciting developments on the horizon:
- Flexible and Foldable Micro OLEDs: Combining miniaturization with flexibility will enable new wearable form factors, such as foldable AR glasses or curved medical sensors.
- Higher Pixel Densities: Research is pushing pixel densities beyond 10,000 ppi, which would make pixels indistinguishable even at microscopic scales.
- Integration with Sensors: Future small OLEDs may integrate touch, biometric, or environmental sensors directly on the display substrate.
- Perovskite and Quantum Dot OLEDs: These emerging materials could offer higher brightness, longer lifespan, and even smaller pixel sizes.
- Mass Production Scaling: As demand grows, economies of scale will reduce costs, making ultra-small OLEDs more accessible for consumer products.
The quest for the smallest OLED screen has pushed the boundaries of display technology, enabling ultra-compact, high-resolution, and energy-efficient displays that power a new generation of devices. From the world's smallest 0.32-inch OLED display to advanced micro OLEDs used in AR and VR, these tiny screens are transforming how we interact with technology in wearables, medical devices, gaming, and beyond.
As manufacturing advances and new materials emerge, we can expect even smaller, brighter, and more durable OLED screens to enter the market, opening exciting possibilities for innovation in compact electronics.
The smallest OLED screen commercially available is a 0.32-inch diagonal display with 60x32 pixels, measuring roughly 11.5mm square.
Micro OLED uses silicon wafers to achieve ultra-high pixel density (over 4,000 ppi), enabling tiny displays with resolutions surpassing traditional OLEDs, ideal for VR and AR devices.
They are used in smartwatches, fitness trackers, miniature gaming devices, IoT interfaces, medical implants, and camera electronic viewfinders.
Many ultra-small OLEDs are monochrome for simplicity, but some micro OLEDs and slightly larger small OLEDs can display full color.
OLEDs offer better contrast, true blacks, wider viewing angles, thinner form factors, and better energy efficiency when displaying dark content, making them superior for small devices.
