Views: 222 Author: Tina Publish Time: 2025-07-05 Origin: Site
Content Menu
● Introduction to LCD Displays
>> Limitations of Traditional LCDs
>> Key Features of IPS Technology
● IPS vs LCD: Technical Differences
● Color Accuracy and Viewing Angles
>> Impact on Viewing Experience
● Response Time and Refresh Rates
● Power Consumption and Durability
● IPS vs LCD Display Summary Table
● FAQ
>> 1. What is the main difference between IPS and LCD displays?
>> 2. Are IPS displays better for gaming than LCD?
>> 3. Do IPS displays consume more power than regular LCDs?
>> 4. Which display is better for professional photo editing, IPS or LCD?
>> 5. Can IPS displays show true black like OLEDs?
LCD (Liquid Crystal Display) technology is one of the most common display types used in TVs, monitors, smartphones, and many other devices. An LCD screen works by manipulating liquid crystals that block or allow light to pass through to create images. These displays rely on a backlight—often fluorescent or LED—to illuminate the screen since liquid crystals themselves do not emit light.
At the core of LCD technology are liquid crystals, which have properties between liquids and solid crystals. When an electric current passes through these crystals, they align in a way that either blocks or allows light to pass through colored filters, creating the images you see on the screen.
The backlight shines light through these layers, and the liquid crystals act as shutters, controlling the amount of light per pixel. This means LCDs are transmissive displays — they require an external light source to produce visible images.
- Low power consumption compared to older CRTs, making them ideal for portable devices.
- Thin and lightweight design, enabling sleek and compact devices.
- Affordable and widely available, making them the most common display technology worldwide.
- Good for displaying static images with clear detail and sharpness.
- Narrow viewing angles causing color and brightness shifts when viewed off-center.
- Slower response times leading to motion blur in fast-moving images.
- Lower color contrast and less vivid images compared to newer technologies.
- Potential for backlight bleeding, where light leaks around the edges or through dark areas of the screen.
- Image persistence or "ghosting" during fast-moving scenes.
Traditional LCDs often use Twisted Nematic (TN) or Vertical Alignment (VA) panels, which have their own pros and cons but generally suffer from limited viewing angles and color accuracy.
IPS (In-Plane Switching) is a specific type of LCD panel technology developed in the mid-1990s to overcome the shortcomings of earlier LCD types like TN panels. Instead of twisting liquid crystals vertically, IPS aligns them horizontally (in-plane), which significantly improves how light passes through the screen.
In IPS panels, the liquid crystals are aligned parallel to the glass substrates, and they rotate within the plane of the display when voltage is applied. This horizontal alignment allows light to pass through more uniformly, which results in better color reproduction and wider viewing angles.
- Wide viewing angles up to 178° horizontally and vertically, with minimal color shift or brightness loss.
- Superior color accuracy with the ability to display over 16 million colors, making it ideal for color-critical work.
- Better brightness and sharpness compared to standard LCDs, providing a more vibrant image.
- Improved color consistency even at extreme angles, making it suitable for multi-viewer environments.
- Enhanced durability and reduced image distortion under pressure, which is beneficial for touchscreens and mobile devices.
IPS technology is widely used in professional monitors, smartphones, and high-end TVs due to these benefits.

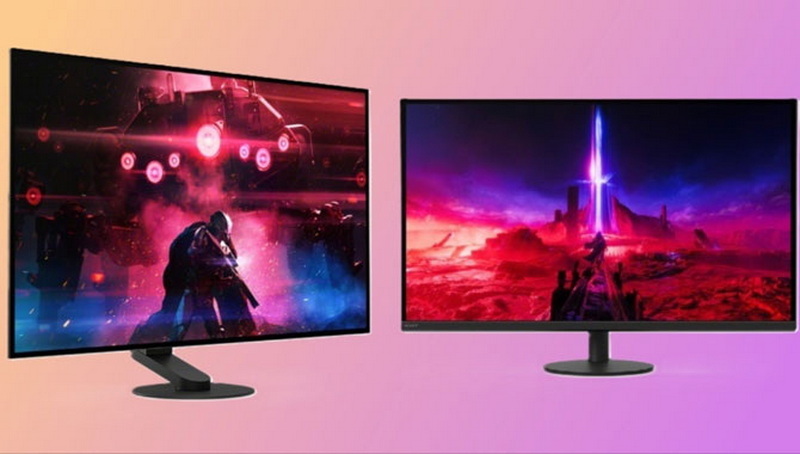

Understanding the technical differences between IPS vs LCD display types helps clarify why IPS panels are often considered superior despite being a subtype of LCD technology.
| Aspect | LCD (TN/VA Panels) | IPS LCD Panels |
|---|---|---|
| Liquid Crystal Alignment | Twisted vertically or aligned vertically | Aligned horizontally (in-plane) |
| Viewing Angles | Narrow (typically 160° horizontal) | Wide (up to 178° horizontal & vertical) |
| Color Reproduction | Limited color depth (6-bit or 8-bit FRC) | True 8-bit color depth, vivid colors |
| Response Time | Faster in TN (~1ms) but with poorer color | Slightly slower (~4-5ms), improving with technology |
| Contrast Ratio | VA panels have better contrast; TN lower | Moderate contrast, better than TN but less than VA/OLED |
| Power Consumption | Lower than IPS | About 15% higher than TN LCD |
| Cost | Cheaper to manufacture | More expensive due to advanced tech |
IPS is a subtype of LCD technology but offers significant improvements in image quality and viewing experience over traditional LCD panels.
One of the most important differences between IPS vs LCD display lies in their color reproduction and viewing angles.
- IPS displays maintain consistent, accurate colors even when viewed from sharp angles, with minimal color shift or fading. This is because the liquid crystals stay aligned horizontally, allowing light to pass through uniformly.
- Standard LCDs (especially TN panels) show significant color distortion and brightness loss when viewed off-center, limiting their usability in multi-viewer environments.
Viewing angle is critical when multiple people are watching the same screen or when the user moves around. For example, in office environments, presentations, or living rooms, wide viewing angles ensure everyone sees the same image quality without distortion.
IPS panels typically cover a wider color gamut, such as sRGB, Adobe RGB, or DCI-P3, which means they can display more colors accurately. This is essential for professional photographers, video editors, and graphic designers who rely on precise color reproduction.
While IPS panels excel in color and viewing angles, their contrast ratio and black levels are generally inferior to VA panels and OLED displays.
- IPS panels provide good contrast, but blacks often appear more like dark gray due to the backlight bleeding through.
- VA panels offer better native contrast by blocking more backlight, resulting in deeper blacks and better shadow detail.
- OLED technology surpasses both by producing true blacks since pixels emit their own light and can turn off completely.
Lower contrast and less deep blacks can affect movie watching and gaming experiences by reducing image depth and immersion. However, IPS panels compensate with vibrant colors and sharp images, which many users find more appealing overall.
Response time and refresh rates affect how smoothly motion appears on screen, which is critical for gaming and video playback.
- TN LCDs traditionally have the fastest response times (~1ms), making them favored by competitive gamers despite weaker color and viewing angles.
- IPS panels have improved significantly, now offering response times as low as 1ms with overdrive technology and refresh rates up to 240Hz, making them viable for gaming as well.
- However, IPS generally consumes more power and costs more than TN panels.
Faster response times reduce motion blur and ghosting, which is the trailing effect behind moving objects. Modern IPS displays have largely closed the gap with TN panels, offering smooth motion for most gaming and video applications.
- IPS displays typically consume about 15% more power than TN LCDs because of their liquid crystal alignment and brighter backlighting requirements.
- IPS panels tend to have longer lifespans and better durability, with less risk of burn-in compared to OLED displays.
- LCDs with TN panels are cheaper and more energy-efficient but offer lower image quality.
Higher power consumption can affect battery life in portable devices and increase electricity costs over time. However, the trade-off for better image quality often justifies the slightly higher energy use.
| Use Case | Recommended Display Type | Reason |
|---|---|---|
| Professional photo/video editing | IPS LCD | Accurate colors, wide viewing angles |
| General computer use | IPS or TN LCD | IPS for better visuals; TN for budget |
| Competitive gaming | TN LCD or fast IPS | Fast response time and high refresh rates |
| Watching movies/TV | IPS LCD or VA LCD | IPS for color accuracy; VA for contrast |
| Outdoor visibility | IPS LCD | Better visibility under sunlight |
IPS displays dominate in professional and multimedia fields due to their superior color and viewing angles, while traditional LCDs (TN) still hold ground in budget and fast-response scenarios.
| Feature | IPS Display | Standard LCD Display (TN/VA) |
|---|---|---|
| Viewing Angles | Up to 178° (wide and consistent) | Narrower, color shifts at angles |
| Color Accuracy | High, 16.7 million colors | Lower, color shifts and less vivid |
| Contrast Ratio | Moderate (~1000:1) | VA panels better contrast, TN lower |
| Response Time | 1-5 ms (improving) | TN fastest (~1 ms), VA slower |
| Power Consumption | Higher (~15% more than TN) | Lower, more energy efficient |
| Price | More expensive | Cheaper, budget-friendly |
| Use Cases | Professional, multimedia, gaming | Budget, gaming, general use |
The difference between IPS and LCD displays lies primarily in the panel technology used within LCD screens. IPS (In-Plane Switching) is a type of LCD panel that offers superior color accuracy, wider viewing angles, and better image consistency compared to traditional LCD panels like TN and VA. While IPS displays tend to consume more power and cost more, their advantages make them the preferred choice for professionals, multimedia enthusiasts, and users who value image quality.
Traditional LCDs, especially TN panels, still have relevance in applications where fast response times and low cost are essential, such as competitive gaming or budget devices. However, with ongoing improvements, modern IPS monitors now also cater well to gaming needs.
Ultimately, choosing between IPS vs LCD display depends on your specific needs—whether you prioritize color fidelity and viewing angles or cost and speed.
Answer: IPS is a type of LCD panel technology that offers better color accuracy and wider viewing angles than traditional LCD panels like TN or VA.
Answer: Modern IPS displays have improved response times and refresh rates, making them suitable for gaming, but TN LCDs still offer the fastest response times for competitive gaming.
Answer: Yes, IPS panels typically consume about 15% more power than TN LCDs due to their liquid crystal alignment and brighter backlighting needs.
Answer: IPS displays are better suited for photo and video editing because of their superior color accuracy and wide viewing angles.
Answer: No, IPS displays rely on backlighting and cannot produce true black like OLEDs, which can turn off individual pixels completely.
