A TFT LCD display module is a type of electronic visual display that combines Thin-Film Transistor (TFT) technology with Liquid Crystal Display (LCD) technology to produce sharp, vibrant images with fast response times. These modules are widely used in consumer electronics, industrial equipment, medical devices, automotive dashboards, and many other applications requiring high-quality visual output. This article provides an in-depth exploration of TFT LCD display modules, covering their structure, working principles, components, applications, advantages, and practical usage including programming and interfacing.
TFT stands for Thin-Film Transistor, a technology that enhances traditional LCD screens by adding an active matrix of transistors. Each pixel on the display is controlled by its own transistor, allowing precise and rapid switching of pixels. This results in better image quality, faster refresh rates, and improved color accuracy compared to passive matrix LCDs.
A typical TFT LCD display module consists of several key components working together:
- Liquid Crystal Layer: This layer contains liquid crystal molecules sandwiched between two glass substrates. The crystals align or twist under an electric field to modulate light passing through, controlling pixel brightness and color.
- Thin-Film Transistor Array: Each pixel has a dedicated thin-film transistor acting as a switch to control the orientation of liquid crystals for that pixel.
- Color Filter: Positioned above the liquid crystal layer, it filters white backlight into red, green, and blue subpixels, which combine to create full-color images.
- Backlight Unit: Since liquid crystals do not emit light, a backlight (usually LED-based) provides illumination from behind the panel.
- Polarizers: These convert natural light into polarized light and control light transmission through the liquid crystal layer.
- Driver ICs: Integrated circuits that process input signals and control the TFTs and backlight to display images.
- Cover Glass and Bezel: Protect the display and provide a surface for touch input if equipped.
The combination of these parts enables the TFT LCD module to display high-resolution, full-color images with excellent clarity and responsiveness.

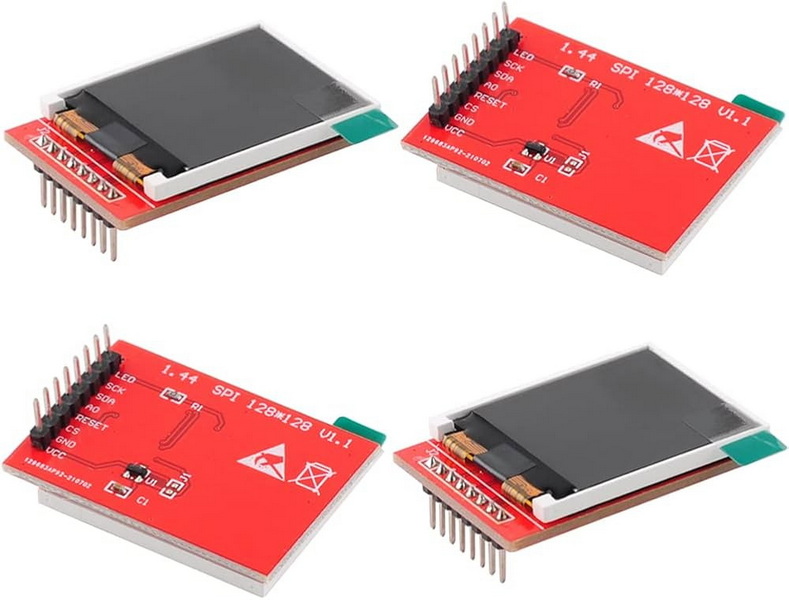

1. Backlight Illumination: The backlight unit emits white light that passes through the lower polarizer, becoming polarized.
2. Signal Processing: The driver IC receives image data and converts it into voltage signals to control each pixel.
3. TFT Switching: The thin-film transistor beneath each pixel acts as a switch, applying voltage to the liquid crystal molecules.
4. Liquid Crystal Manipulation: Depending on the voltage, liquid crystals twist to varying degrees, modulating the amount of light passing through.
5. Color Filtering: The modulated light passes through the RGB color filters, producing colored subpixels.
6. Upper Polarizer: The light passes through the upper polarizer, and the combined effect produces the final visible image.
7. Image Display: The human eye perceives the combined light from millions of pixels as continuous, vibrant images.
This active matrix control allows for fast pixel refresh rates and precise color control, making TFT LCDs suitable for dynamic content like video and interactive interfaces.
The core of the display, this layer contains liquid crystals that change orientation under electric fields. Common types include Twist Nematic (TN), Super Twisted Nematic (STN), and In-Plane Switching (IPS), each offering different viewing angles and color reproduction qualities. IPS panels, for example, provide superior color accuracy and wider viewing angles, making them popular in high-end displays.
An array of tiny transistors embedded on the glass substrate controls each pixel independently. This active matrix technology provides high resolution and rapid response times. The quality and density of the TFT array directly impact the display's sharpness and refresh rate.
Filters split the white backlight into red, green, and blue subpixels. By varying the intensity of each subpixel, the display can render millions of colors. Advances in color filter technology have improved color gamut and brightness, enhancing overall image quality.
Usually composed of LEDs, the backlight provides the necessary illumination. The brightness and uniformity of the backlight significantly affect display quality and readability, especially in bright environments. Some modules use edge-lit LED backlights, while others use direct backlighting for better uniformity.
These optical filters polarize light before and after it passes through the liquid crystal layer, essential for controlling light transmission and contrast. High-quality polarizers improve contrast ratios and reduce glare.
These integrated circuits decode incoming video signals and control the TFT array and backlight to produce the desired images. Modern driver ICs support high resolutions, multiple interface standards, and power-saving features.
Many TFT LCD modules include a touchscreen layer, either resistive or capacitive, enabling user interaction directly on the display. Capacitive touchscreens support multi-touch gestures and are more responsive, while resistive touchscreens are cost-effective and work with any pointing device.
TFT LCD modules are ubiquitous across many industries due to their versatility and performance:
- Consumer electronics: smartphones, tablets, laptops, digital cameras, portable media players.
- Automotive: dashboards, infotainment systems, rear-seat entertainment.
- Industrial: control panels, process monitoring, instrumentation.
- Medical: patient monitors, diagnostic equipment, imaging displays.
- Gaming: consoles, handheld devices.
- Navigation: GPS devices.
- Wearables: smartwatches, fitness trackers.
Their high resolution, color accuracy, and fast response make them ideal for applications requiring detailed visuals and interactive interfaces.
- High image quality with sharp, vibrant colors.
- Fast response times suitable for video and animations.
- Wide viewing angles, especially with IPS panels.
- Good color reproduction with millions of colors.
- Relatively low power consumption compared to older display technologies.
- Mature and cost-effective manufacturing processes.
- Visibility can be poor under direct sunlight without special treatments like brighter backlights or transflective layers.
- Not inherently waterproof; requires protective casing in humid or wet environments.
- Higher power consumption compared to OLED in some scenarios.
- Limited contrast ratio compared to OLED displays.
TFT LCD modules often interface with microcontrollers or development boards such as Arduino, STM32, or Raspberry Pi. Common interfaces include SPI, parallel, or more advanced interfaces like LVDS or HDMI for larger displays.
Popular libraries like Adafruit GFX, MCUFRIEND, and ST7735 facilitate programming TFT modules. These libraries provide functions to draw text, shapes, images, and handle touch inputs.
Images are usually converted to compatible bitmap formats (e.g., 24-bit BMP) and stored on SD cards or embedded in flash memory. The microcontroller reads these files and renders them on the display. Tools like LCD Image Converter help prepare images for display.

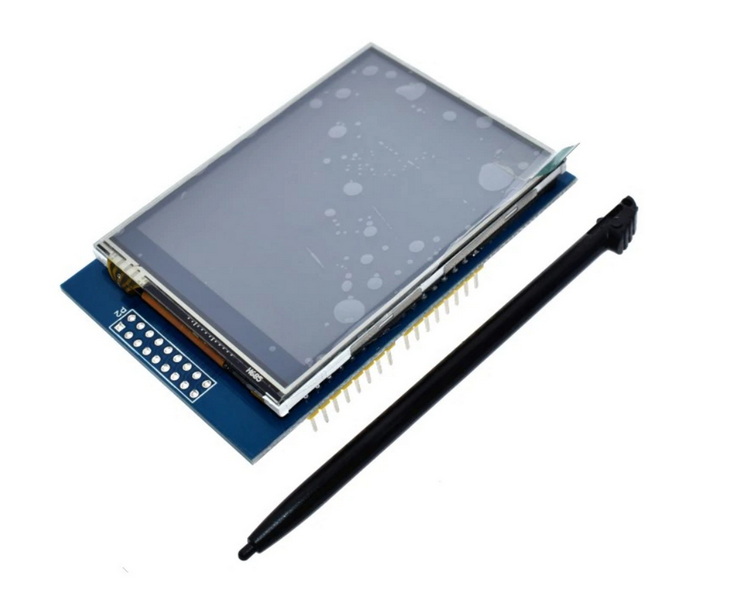

A common beginner project is connecting a 3.5-inch TFT LCD shield with an Arduino UNO to display images, text, and touch input. This involves wiring the display, installing libraries, and uploading example code to test display functions.
TFT LCD modules come in various resolutions, from small 128x160 pixel displays used in simple devices to high-definition 1920x1080 (Full HD) and beyond for smartphones and tablets. Pixel density, measured in pixels per inch (PPI), directly affects image sharpness. Higher PPI means finer detail and smoother visuals, which is critical for applications like medical imaging or graphic design.
The refresh rate, typically 60Hz or higher, indicates how many times per second the display updates. A higher refresh rate reduces motion blur and flicker, enhancing video playback and gaming experiences. Response time measures how quickly a pixel changes state, with lower times reducing ghosting effects in fast-moving images.
While TFT LCDs are generally energy-efficient, power consumption depends on backlight brightness and display size. Techniques like dynamic backlight control and partial screen updates help reduce power usage, which is vital for battery-powered devices.
TFT LCD modules can be designed for rugged environments with features like reinforced glass, anti-reflective coatings, and moisture sealing. Industrial-grade displays often meet standards for shock, vibration, and temperature resistance, enabling use in harsh conditions.
Though OLED and MicroLED technologies are gaining popularity, TFT LCDs continue evolving with innovations such as:
- Quantum Dot Enhancement: Incorporating quantum dots to improve color gamut and brightness.
- Flexible TFT LCDs: Development of bendable or foldable displays for new form factors.
- Higher Refresh Rates: Supporting 120Hz or more for smoother motion.
- Lower Power Consumption: Advanced materials and driver ICs reduce energy use.
- Integrated Touch and Display: Combining touch sensors directly into the LCD stack for thinner, lighter modules.
These advancements ensure TFT LCD modules remain competitive and relevant in diverse applications.
TFT LCD display modules are a cornerstone technology in modern visual displays, offering a balance of high image quality, fast response, and cost efficiency. By integrating thin-film transistor technology with liquid crystal displays, these modules provide vibrant, sharp images suitable for a vast array of applications from consumer gadgets to industrial control systems. Understanding their structure, working principles, and practical interfacing methods empowers developers and engineers to harness their full potential in diverse projects. As technology progresses, TFT LCD modules continue to improve, maintaining their essential role in the display market.
TFT LCDs use a backlight and liquid crystals modulated by thin-film transistors to display images, while OLEDs emit light directly from organic compounds. OLEDs generally offer better contrast and viewing angles but are more expensive. TFT LCDs are more mature and cost-effective for many applications.
TFT LCDs typically display between 64,000 (64K) and 16 million (16M) colors, depending on the bit depth and color encoding. High-end displays can show up to 64 million colors.
Yes, TFT LCDs can display video smoothly due to their fast refresh rates and active matrix control, making them suitable for dynamic content.
Common touchscreen types include resistive (single touch, pressure-sensitive) and capacitive (multi-touch, finger or stylus sensitive). Some TFT modules come without touch functionality.
Increasing backlight brightness to at least 700 nits or using transflective display technology helps improve readability in direct sunlight.
