An LCD display controller is a critical electronic component that enables an LCD (Liquid Crystal Display) panel to show images, text, and graphics by managing the signals and timing necessary for the display to function properly. This article provides an in-depth exploration of what an LCD display controller is, how it works, its types, applications, and related technologies, supported by illustrative explanations and practical examples.
An LCD display controller, often called an LCD controller or LCDC, is a specialized integrated circuit (IC) or microprocessor designed to interface between a host device (such as a CPU, microcontroller, or GPU) and the LCD panel itself. Its primary role is to receive display data from the host and convert it into signals and timing sequences that the LCD panel can interpret to render images correctly.
Unlike raw LCD panels that require complex direct control of each pixel or segment, the LCD controller simplifies this process by handling the low-level driving signals, synchronization, and often includes memory and image processing capabilities.
- Signal Conversion: Converts digital or analog signals from the host device into the specific format and voltage levels required by the LCD panel.
- Timing Control: Generates synchronization signals such as horizontal sync (HSync), vertical sync (VSync), pixel clock, and data enable signals to ensure pixels update accurately and without artifacts.
- Frame Buffering: Stores image data temporarily to manage smooth rendering and transitions.
- Image Processing: Some controllers can perform scaling, rotation, overlay, or color adjustments to fit the display resolution and improve image quality.
- Backlight Control: Manages the brightness and power of the LCD backlight, often using PWM (Pulse Width Modulation) for energy efficiency.
- Power Management: Provides stable voltage and current to the display and related components, ensuring safe and reliable operation.
- User Interaction Handling: For displays with touchscreens, the controller can process touch inputs and communicate them back to the host system.

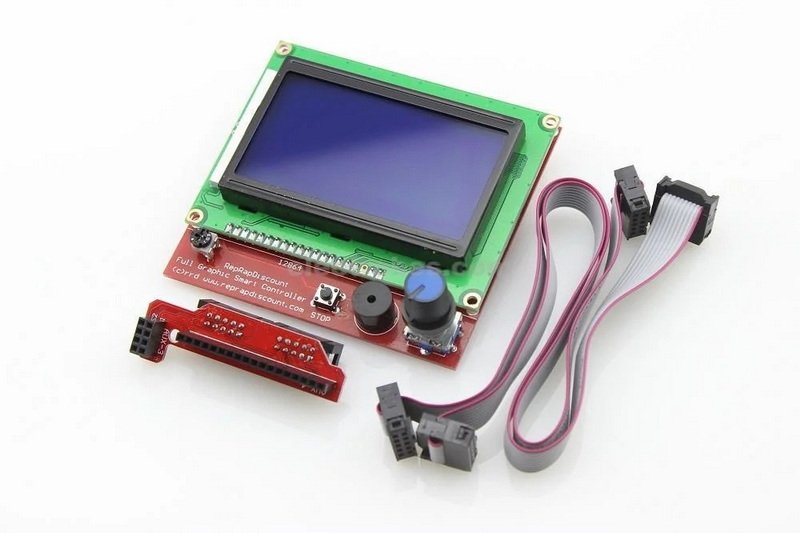

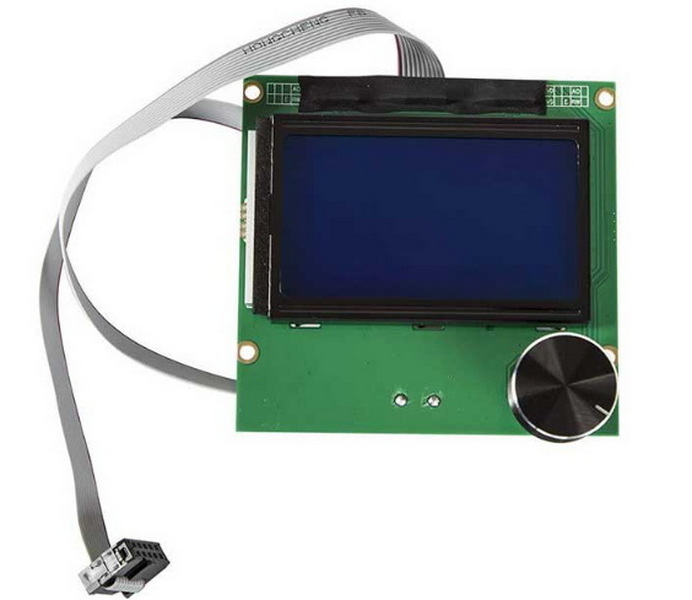

An LCD controller board (also called a display controller board or driver board) is a physical circuit board that houses the LCD controller IC along with connectors and other supporting components. This board acts as the intermediary between the host device and the LCD panel, providing necessary interfaces and power management.
The LCD controller receives image data from the host device via communication interfaces such as SPI, I²C, HDMI, VGA, or LVDS. It processes this data and generates the appropriate signals to drive the LCD pixels.
1. Receiving Data: The controller accepts image data and commands from the host CPU or graphics processor.
2. Processing Data: The controller may scale, rotate, or adjust the image to match the LCD panel's resolution and characteristics.
3. Generating Timing Signals: It creates synchronization signals (HSync, VSync, pixel clock) to coordinate pixel updates.
4. Driving Pixels: The processed data is sent to the LCD panel in the correct format and timing, controlling each pixel's color and brightness.
5. Backlight and Power Control: The controller adjusts the backlight brightness and manages power to optimize energy consumption.
This process ensures that the display shows smooth, flicker-free images with accurate colors and brightness.
LCD controllers vary based on application, display type, and interface compatibility. Common types include:
- UART-Based Controllers: Use simple serial communication for embedded systems, ideal for low-complexity displays.

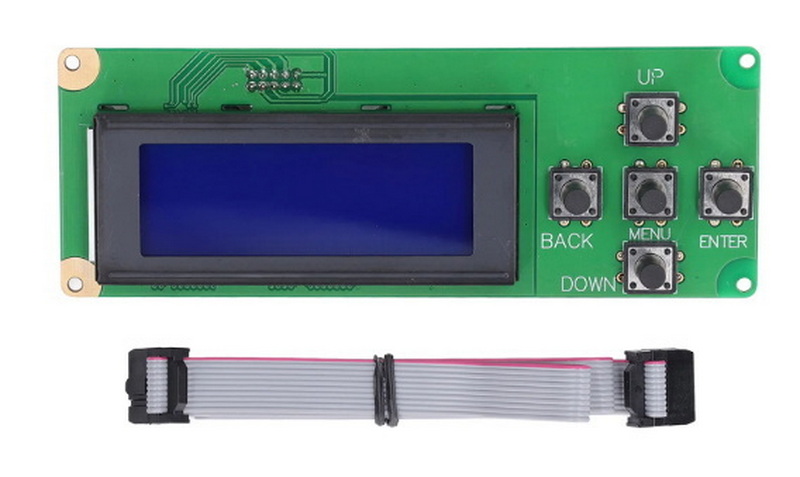

- Parallel Interface Controllers: Use multiple data lines to transfer data faster, common in character and graphic LCDs.
- LVDS (Low-Voltage Differential Signaling) Controllers: Used for high-resolution TFT LCD panels, providing high-speed data transfer with low noise.
- MIPI DSI Controllers: Designed for mobile and embedded devices, supporting high-resolution displays with low power consumption.
- HDMI/DVI Controllers: For multimedia applications requiring high-definition video input.
LCD controllers are used in a wide range of devices and industries:
- Consumer Electronics: Smartphones, tablets, laptops, and TVs.
- Industrial Equipment: Control panels, instrumentation displays, and medical devices.
- Automotive: Dashboard displays, infotainment systems.
- Embedded Systems: Arduino and Raspberry Pi projects for custom displays.
- Graphic and Character Displays: From simple 16x2 character LCDs to complex graphic displays.
- Simplifies Development: Offloads complex timing and pixel management from the host CPU.
- Improves Performance: Dedicated hardware accelerates image rendering and reduces latency.
- Enables Advanced Features: Supports image processing like scaling, rotation, and overlays.
- Power Efficiency: Optimizes power usage, especially important for battery-powered devices.
- Interface Flexibility: Converts various input signals to match the LCD panel's requirements.
- Supports Touchscreens: Processes touch inputs for interactive displays.
- Compatibility: The controller must match the LCD panel's specifications (resolution, interface, voltage).
- Firmware Updates: Controllers may require firmware updates for new features or bug fixes.
- Discontinuation Risk: Some LCD controllers may be discontinued, requiring redesign or firmware changes.
- Cost: Higher-end controllers with advanced features can increase product cost.
Displaying custom images involves:
1. Creating the image in a graphics editor.
2. Converting the image into a compatible data format (e.g., bitmap arrays).
3. Uploading the image data to the controller's frame buffer via a microcontroller.
4. Using controller commands to render the image on the LCD.
This process is often demonstrated in Arduino tutorials for graphic LCDs.
Many modern LCD displays include touchscreen capabilities. The LCD controller often integrates with a touch controller to handle user input. This integration allows the display to not only show information but also respond to touch gestures such as taps, swipes, and multi-touch interactions. The touch controller converts physical touch events into digital signals that the LCD controller or host processor can interpret. This feature is essential for smartphones, tablets, and interactive kiosks.
Power consumption is a critical factor in portable and embedded devices. LCD controllers contribute to energy efficiency by managing backlight brightness through techniques like Pulse Width Modulation (PWM) and adjusting power supply voltages dynamically. Some advanced controllers include features such as automatic brightness adjustment based on ambient light sensors, which further optimize power usage and extend battery life.
As display technology evolves, LCD controllers continue to advance. Emerging trends include:
- Higher Resolutions: Support for 4K and beyond, requiring more powerful controllers with faster data throughput.
- Integration with OLED and MicroLED: Hybrid controllers capable of handling multiple display technologies.
- AI-Based Image Enhancement: Incorporating artificial intelligence to improve image quality dynamically.
- Flexible and Transparent Displays: Controllers designed for new form factors and materials.
- Enhanced Security: Protecting display data and firmware against unauthorized access or tampering.
These trends reflect the ongoing innovation in display technology and the critical role of LCD controllers in enabling new user experiences.
An LCD display controller is the essential bridge between a host device and an LCD panel, managing the complex timing, signal conversion, and image processing needed to produce clear, vibrant images. By offloading these tasks from the main processor, LCD controllers enable efficient, high-quality display solutions across a broad spectrum of devices and applications. Understanding the functions, types, and integration methods of LCD controllers is crucial for engineers and developers working with display technologies. As display demands grow and diversify, LCD controllers will continue to evolve, supporting new features, higher resolutions, and innovative display types.
An LCD controller manages the overall display operations, including timing and image processing, while an LCD driver specifically handles turning pixels or segments on and off by generating the necessary electrical signals. Often, these functions are integrated into a single chip.
Bare LCD panels without built-in controllers require an external LCD controller board to convert input signals and manage the display. Without a controller, controlling each pixel individually would be impractical.
Common interfaces include SPI, I²C, parallel (4/8/16-bit), LVDS, MIPI DSI, HDMI, VGA, and DVI. The choice depends on the display type and host device compatibility.
If the display has a touchscreen, the controller can process touch signals and send touch event data back to the host, enabling user interaction.
Discontinuation may require firmware modification to support a new controller or a last-time buy of the existing controller. Choosing widely used controllers can mitigate this risk.
