Electric bikes (e-bikes) have become increasingly popular as eco-friendly and efficient transportation options. One of the key features that enhance the riding experience is the electric bike LCD display, which provides real-time information about the bike's status, performance, and any potential issues. However, for many riders, the icons and symbols on these displays can be confusing at first glance. This comprehensive guide will demystify the most common icons found in an electric bike LCD display manual, explain their meanings, and show how to interpret them for safer and more efficient riding.
The electric bike LCD display serves as the dashboard of your e-bike, providing essential information such as speed, battery level, pedal assist mode, and error warnings. These displays are designed to be intuitive but can vary depending on the manufacturer and model.
Typically mounted on the handlebar, the display helps riders monitor their bike's status at a glance, improving safety and optimizing performance. Understanding these icons is crucial for new and experienced riders alike to make the most of their e-bike.
Modern electric bike displays range from simple monochrome screens showing basic data to advanced color LCDs with detailed metrics, Bluetooth connectivity, and smartphone integration. Regardless of complexity, the icons remain the primary method of conveying information quickly and clearly.
Electric bike displays generally feature two types of icons:
- General status icons: Indicate normal operating conditions like speed, battery charge, and assistance level.
- Fault or error icons: Warn the rider about issues such as motor faults, battery problems, or system errors.
Below, we break down the most frequently seen icons and their meanings based on common electric bike LCD display manuals.

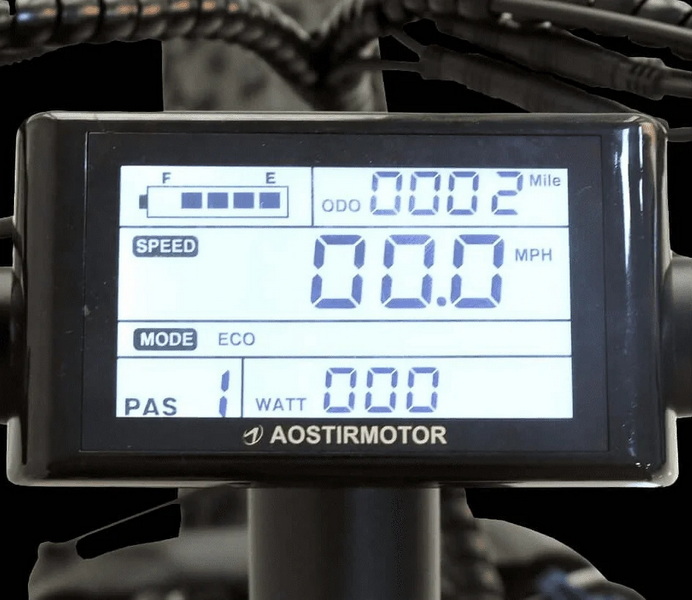

The battery icon is one of the most important symbols on your e-bike display. It shows the current charge level and voltage status.
- Battery Level Bars: Usually displayed as a segmented battery icon, with more bars indicating higher charge.
- Letters Near Battery Icon:
- F: Full or high battery charge.
- H: High or sufficient battery charge.
- L: Low battery charge.
- E: Empty or critically low battery, recharge immediately.
Some displays also show the battery voltage or percentage for more precise monitoring.
Monitoring battery status is essential for planning your ride and avoiding unexpected power loss. The battery icon helps you estimate remaining range and decide when to recharge. Some advanced displays also provide estimated distance remaining based on current riding conditions.
- Speedometer Icon: Displays your current speed in km/h or mph. This is influenced by factors such as battery power, terrain, and throttle usage.
- Odometer/Trip Distance: Shows total distance traveled or trip distance since last reset.
- Speed Limit Icon: Indicates when you have reached or exceeded the preset speed limit on your e-bike. If this icon appears, it is advisable to slow down to avoid motor cut-off or legal issues.
Speed is one of the most frequently checked parameters. The speedometer icon often accompanies a numeric readout and may flash or change color when approaching speed limits.
The odometer helps track total mileage for maintenance schedules, while the trip distance can be reset for daily rides or specific trips.
- Pedal Assist Level: Usually shown as numbers or bars indicating the level of electric assistance provided when pedaling. Levels typically range from 0 (no assist) to 5 or more (maximum assist).
- Motor Output Indicator: Shows the power output or engagement status of the motor.
- Throttle Indicator: Displays when the throttle is in use, if your e-bike has one.
- Forward/Backward Arrows: Indicate the direction of motor assistance or bike movement.
Pedal assist modes allow riders to choose how much help the motor provides. Lower levels conserve battery but require more pedaling effort, while higher levels provide stronger assistance.
These icons confirm that the motor is active and functioning properly. Some displays also show power output in watts.
- Headlight Icon: Indicates whether the bike's headlight is on or off.
- Turn Signal Icons: Show left or right turn signals if your e-bike is equipped with them.
- Brake Indicator: Lights up when brakes are applied, sometimes indicating if the brake sensor is active.
Proper lighting is critical for safety, especially at night or in low-visibility conditions. The headlight icon helps ensure your lights are active.
Some e-bikes come with integrated turn signals and brake sensors that communicate with the display to alert the rider and others on the road.
These icons alert you to problems that require attention:
- Motor Fault (M): Indicates motor issues such as weak power or abnormal noise.
- ECU Fault: Shows a problem with the bike's electronic control unit, which manages motor and system functions.
- Throttle Fault: Indicates problems with throttle signals.
- Communication Error: When the display loses connection with the controller or motor.
- Brake Fault: Signals an issue with the brake sensor or system.
When these icons appear, it is important to stop riding and troubleshoot or seek professional repair to avoid damage or safety risks. Some displays provide error codes for more precise diagnostics.
Beyond the basic icons, some electric bike LCD displays include additional symbols to enhance the riding experience:
- Cruise Control Icon: Indicates when cruise control mode is activated, maintaining a steady speed without pedaling.
- Temperature Warning: Alerts if the motor or battery temperature exceeds safe limits.
- Bluetooth Icon: Shows when the display is connected to a smartphone or other device.
- USB Charging Icon: Indicates the status of USB charging ports if your e-bike has them.
- Clock Icon: Displays the current time.
These additional icons provide more convenience and safety features, helping riders stay informed about their bike's condition and connectivity.

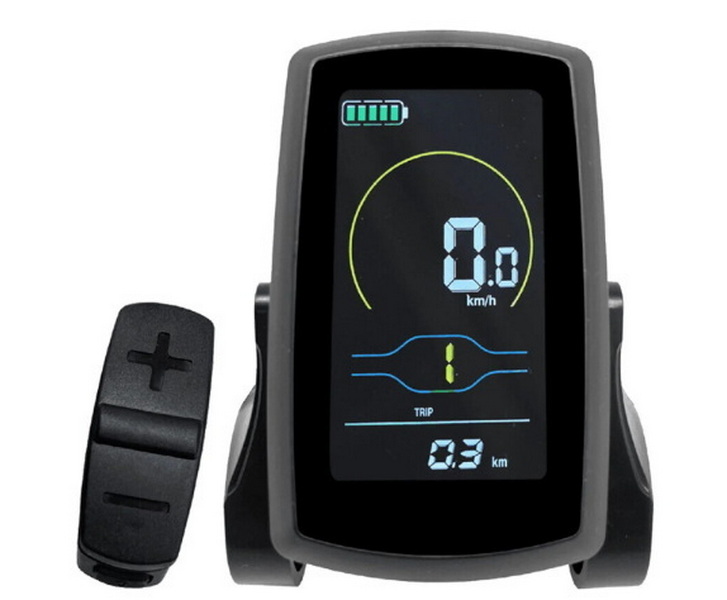

Many electric bike LCD displays allow users to customize settings for a personalized riding experience. Common adjustable parameters include:
- Backlight Brightness: Adjust screen brightness for visibility in different lighting conditions.
- Units of Measurement: Switch between kilometers and miles.
- Wheel Size: Set the correct wheel diameter for accurate speed and distance readings.
- Speed Limit: Set a maximum speed limit for safety or legal compliance.
- Pedal Assist Modes: Configure the number and strength of pedal assist levels.
- Sleep Mode Timing: Set the display to turn off after inactivity to save battery.
Entering the settings menu usually involves pressing and holding specific buttons, as detailed in your electric bike LCD display manual. Some displays use a combination of button presses or touchscreen navigation.
- Set wheel size accurately to ensure speed and distance accuracy.
- Adjust brightness to prevent glare during night rides.
- Choose pedal assist levels that match your fitness and terrain.
- Familiarize Yourself with Icons Before Riding: Spend time learning what each symbol means to avoid confusion on the road.
- Regularly Check Battery Status: Prevent being stranded by monitoring battery levels frequently.
- Respond Promptly to Error Icons: Stop and diagnose issues immediately to ensure safety.
- Adjust Settings to Your Needs: Customize assist levels and speed limits for comfort and efficiency.
- Keep the Display Clean and Protected: Ensure visibility and prevent damage from weather or impacts.
- Use Display Data to Improve Riding: Track distance, speed, and battery usage to optimize routes and conserve energy.
Understanding the icons on your electric bike LCD display is essential for safe, efficient, and enjoyable riding. These symbols provide vital information about your bike's battery, speed, motor status, and any faults that may arise. By learning to read and interpret these icons, you can optimize your e-bike's performance, extend its lifespan, and avoid potential hazards. Always refer to your specific electric bike LCD display manual for detailed instructions and troubleshooting tips. With this knowledge, you will confidently navigate your e-bike's dashboard and enhance your riding experience.
These letters indicate the battery charge status: F means full, H means high, L means low, and E means empty or critically low battery needing immediate recharge.
A motor fault is usually shown by an "M" icon or a specific error code on the display. This means the motor is malfunctioning and should be checked.
Yes, most electric bike LCD displays allow switching units between kilometers and miles through the settings menu.
Communication errors indicate loss of connection between the display and the controller or motor. Check wiring connections or consult a professional technician.
Most displays allow resetting the trip distance by pressing and holding specific buttons, often detailed in the manual. For example, long-pressing the upper key for 5 seconds may reset the odometer.
