When exploring display technologies, one common question arises: *Is a VA panel LED or LCD?* The answer lies in understanding the relationship between these terms. VA (Vertical Alignment) panels are a type of LCD (Liquid Crystal Display) technology, and they often use LED (Light Emitting Diode) backlighting. This article will explore the characteristics of VA panels, their advantages and disadvantages, and how they compare to other panel types like IPS (In-Plane Switching) and TN (Twisted Nematic).

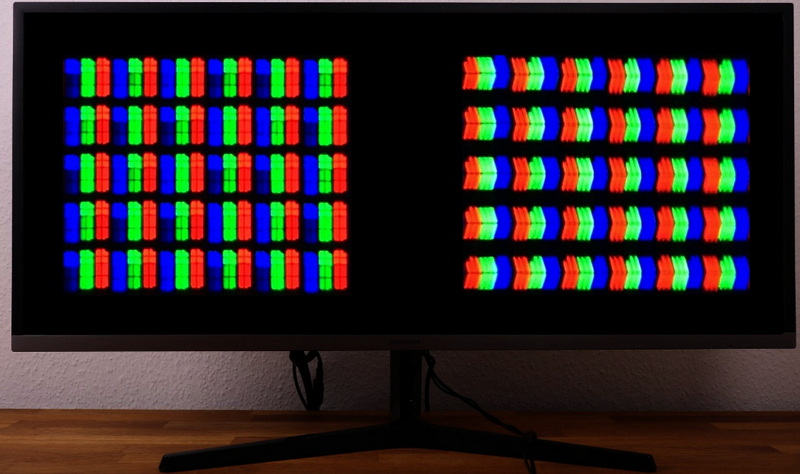

A VA panel is a type of LCD display that uses vertically aligned liquid crystals. These crystals align perpendicularly to the glass substrate when no voltage is applied, blocking light and creating dark blacks. When voltage is applied, the crystals tilt to allow light through, producing vibrant colors and high contrast ratios.
- High Contrast Ratios: VA panels are known for their deep blacks and vibrant imagery due to excellent light-blocking capabilities.
- Good Color Reproduction: They offer a wide color gamut suitable for HDR content.
- Balanced Performance: While not as fast as TN panels or as color-accurate as IPS panels, VA provides a middle ground for general use.
LCD stands for Liquid Crystal Display, which relies on liquid crystals to control light transmission. However, LCDs require a backlight since they are not emissive displays.
LED refers to the backlighting technology used in modern LCDs. Instead of older CCFL (Cold Cathode Fluorescent Lamp) backlights, LEDs provide:
- Better energy efficiency
- Slimmer designs
- Improved brightness control
Thus, a VA panel is an LCD panel with LED backlighting, making it part of the broader LCD category.
1. Superior Contrast Ratios
- Typical contrast ratios range from 3000:1 to 5000:1 or higher, significantly outperforming IPS and TN panels[4][5].
- Ideal for dark scenes in movies or games.
2. Deep Blacks
- The vertical alignment of liquid crystals blocks light effectively when no voltage is applied, producing inky blacks[6].
3. Wide Color Gamut
- Many VA panels exceed standard RGB color spaces and support HDR content[4].
4. Decent Viewing Angles
- While not as wide as IPS panels, VA panels offer better viewing angles than TN displays[5].
5. Affordability
- Generally more cost-effective than IPS panels while providing better image quality than TN[8].
1. Limited Response Times
- Slower response times compared to TN and IPS panels can lead to motion blur or ghosting during fast-paced gaming[5][9].
2. Narrower Viewing Angles
- Color and contrast degrade when viewed at sharp angles, though newer technologies like SVA (Super Vertical Alignment) aim to improve this[6][10].
3. Brightness Uniformity Issues
- Some VA panels suffer from uneven brightness across the screen[3].

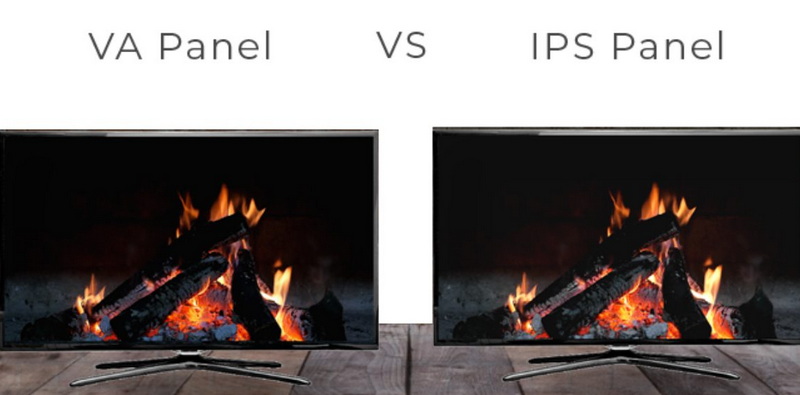

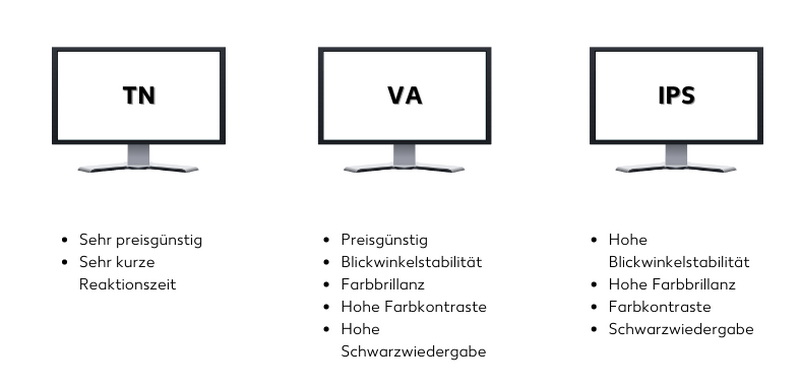

Feature | VA Panel | IPS Panel | TN Panel |
---|---|---|---|
Contrast Ratio | High (3000:1 or more) | Moderate (~1000:1) | Low |
Viewing Angles | Moderate | Wide | Narrow |
Response Time | Moderate (~4-8ms) | Fast (~1-4ms) | Very Fast (~1ms) |
Color Accuracy | Good | Excellent | Poor |
Price | Mid-range | Expensive | Affordable |
While not as fast as TN panels, many modern VA monitors offer refresh rates up to 200Hz with improved response times (~2-3ms), making them suitable for casual gaming[4].
The high contrast ratios and deep blacks make VA panels ideal for watching movies or HDR content.
For office work or general computing tasks, VA monitors provide a balance between performance and cost.
In summary, a VA panel is an LCD technology that uses LED backlighting for illumination. It strikes a balance between cost, performance, and image quality, offering high contrast ratios and deep blacks while being more affordable than IPS panels. However, its slower response times and narrower viewing angles may be limitations for specific use cases like competitive gaming or professional design work.
For those seeking vibrant visuals with excellent contrast—whether for movies, casual gaming, or general use—a VA panel is an excellent choice.
VA stands for *Vertical Alignment*, referring to how liquid crystals align perpendicularly to the glass substrate in the absence of voltage.
Yes, most modern VA panels use LED backlighting as part of their LCD technology.
VA panels excel in contrast ratios and black levels but have narrower viewing angles and slower response times compared to IPS displays.
VA monitors are suitable for casual gaming but may exhibit motion blur due to slower response times compared to TN or high-end IPS monitors.
SVA (Super Vertical Alignment) is a subtype of VA technology developed by Samsung that offers improved viewing angles and color accuracy compared to standard VA panels.
