Honeywell alarm systems are widely used for residential and commercial security, and they often feature keypads and LCD displays that allow users to arm, disarm, and control the system with ease. If you have a Honeywell alarm system and want to know how to turn on the keypad and LCD display, this comprehensive guide will walk you through the process, including troubleshooting tips, programming basics, and usage instructions. This article also includes visual aids and videos to help you understand each step clearly.

Understanding Honeywell Alarm Keypads and LCD Displays

Honeywell offers various keypad models with different features, including fixed English keypads like the 6150, custom alpha keypads like the 6160, and advanced touchscreen LCD panels such as the LCD-SLP and 6280 Color Graphic Voice Touchscreen Keypad.

- Keypads: Typically feature buttons for entering security codes, arming/disarming commands, and function keys for quick access to panic alarms or other features. They often have LED indicators showing system status (ready, armed, trouble).

- LCD Displays: Provide a visual interface with system status messages, zone information, and alerts. Advanced models have color touchscreen displays with menus and voice annunciation.

The keypad and LCD display are essential for interacting with your Honeywell alarm system, allowing you to control and monitor your security setup efficiently.

How to Turn On the Keypad and LCD Display

1. Powering the System

The keypad and LCD display turn on automatically when the alarm control panel is powered. To ensure your keypad and display activate:

- Verify the alarm panel is connected to a power source (AC power and backup battery).

- If the system is new or has been powered down, plug in the transformer and connect the battery.

- Once the panel powers up, the keypad and LCD display should light up and show the system status.

If the keypad or display does not turn on, check wiring connections and power supply.

2. Addressing the Keypad (If Needed)

For new keypads, you may need to address the keypad so it communicates properly with the control panel. This is common with Honeywell VISTA systems.

- Power down the alarm panel.

- Connect the keypad using the four-wire connection (two for data, two for power).

- Power the panel back on.

- Within 60 seconds, press and hold the * and # keys simultaneously for about 3 seconds.

- The current keypad address will display (default is often 31).

- Press * to change the address, then enter a valid address (usually between 16 and 23 for keypads).

- Press * to save and exit.

Once addressed, the keypad LCD should display normal status screens[11][13].

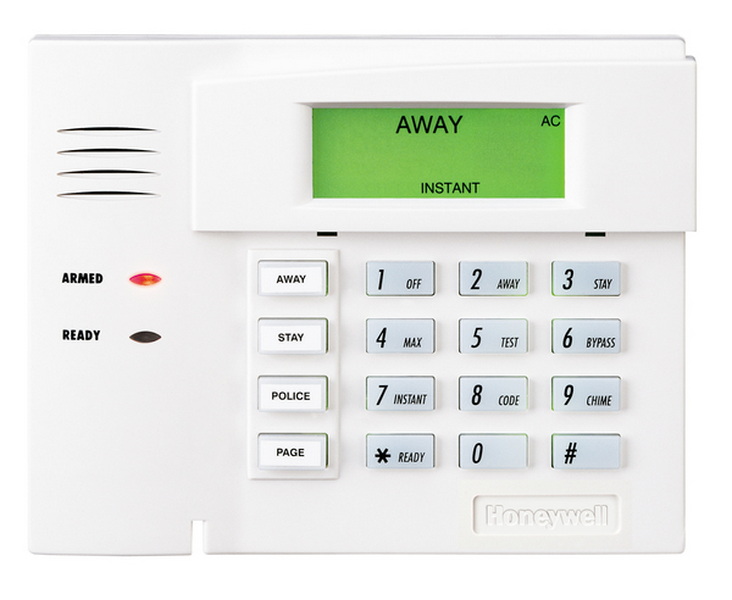

3. Activating the LCD Display

Most Honeywell keypads with LCD screens activate automatically when powered on. If your display is blank or off:

- Ensure the system has power.

- If your keypad has a removable door (like the 6160), open it to reveal the LCD and keys.

- Some advanced LCD panels like the LCD-SLP or 6280 touchscreen may have a power or menu button to wake the display.

- Refer to your model's manual for specific instructions on waking or activating the display[2][3][10].

Basic Operation of Honeywell Keypads and LCD Displays

Once the keypad and LCD are on, you can perform basic functions:

- Arming the system: Enter your 4-digit code and press the appropriate arm key (Away, Stay, Instant, Maximum).

- Disarming the system: Enter your 4-digit code and press the OFF key.

- Checking system status: The LCD will show zone status, faults, or alarms.

- Bypassing zones: Enter your code + 6 + zone number to bypass a zone.

- Enabling/disabling chime: Enter your code + 9 to toggle chime on/off.

The keypad LEDs will indicate system state: green for ready, red for armed, yellow for trouble or supervisory conditions[1][5][6][15].

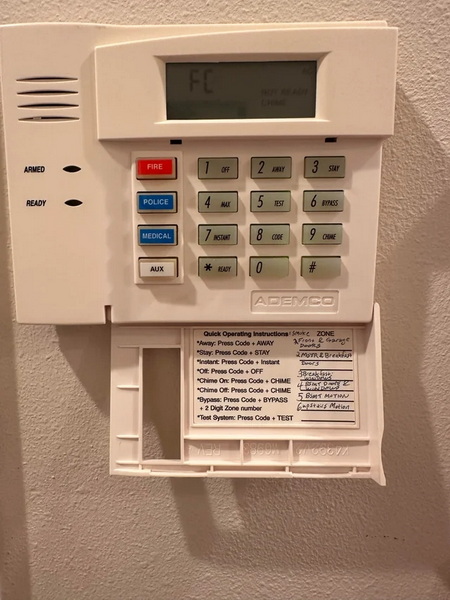

Troubleshooting: When the Keypad or LCD Won't Turn On

If your Honeywell keypad or LCD display does not turn on or shows errors:

- Check power supply: Make sure the panel has AC power and the backup battery is charged.

- Check wiring: Loose or damaged wires can cause the keypad not to power up.

- Low battery warning: The keypad may show a BAT error; this clears after the battery recharges (up to 48 hours).

- Trouble conditions: The keypad may display "CHECK" with a zone number indicating a problem (e.g., open zone, communication fault).

- Reset system: Enter your code + OFF twice to reset.

- Call for service: If problems persist, contact your alarm service provider[7][8].

Conclusion

Turning on the keypad and LCD display on a Honeywell alarm system involves ensuring the system is properly powered, the keypad is correctly addressed, and the display is activated. Most Honeywell keypads and LCD panels power on automatically with the alarm control panel. If your keypad or display does not turn on, checking power connections, wiring, and system status is essential. Troubleshooting common issues like low battery, trouble zones, or communication faults can restore normal operation. Utilizing the keypad and LCD display effectively allows you to control your security system with ease, ensuring your property remains protected.

Frequently Asked Questions (FAQs)

1. How do I turn on the Honeywell alarm keypad if the display is blank?

Make sure the alarm panel is powered on with AC power and battery connected. Open the keypad door if it has one. If still blank, check wiring and address the keypad if necessary[2][11].

2. What does it mean if my Honeywell keypad shows “Not Ready”?

This indicates that a door, window, or motion detector is open or faulted. Close all protected zones to make the system ready to arm[7][12].

3. How do I address a new Honeywell keypad to my alarm panel?

Power down the panel, connect the keypad, power back on, then press and hold * and # keys within 60 seconds to enter address mode and set a valid address[11][13].

4. How can I enable or disable the keypad chime?

Enter your 4-digit security code followed by the 9 key while the system is disarmed to toggle the chime on or off[1][15].

5. What should I do if the keypad shows a “CHECK” trouble message?

Enter your code and press OFF to silence the beep. Check the indicated zones for faults or open sensors. If unresolved, contact your service provider[8].
