Installing an LCD display in a 2006 Nissan Quest can be a cost-effective way to resolve common issues such as pixelated or distorted displays, or when the odometer, temperature, and fuel gauges are not functioning properly. This process involves replacing the existing LCD screen with a new one, which can be done by following a series of steps. In this article, we will guide you through the process, highlighting key steps and providing additional resources for further assistance.
The installation process involves several key steps:
1. Removing the Instrument Cluster: This is the first step in accessing the LCD display. It requires removing the bezel and screws that hold the cluster in place.
2. Disassembling the Cluster: Once removed, you need to disassemble the cluster to access the LCD screen. This involves removing additional screws and tabs.
3. Replacing the LCD Screen: After accessing the LCD, you can replace it with a new one. Ensure the ribbon cable is properly connected to avoid damage.
4. Reassembling the Cluster: After installing the new LCD, reassemble the cluster in reverse order of disassembly.
To begin, you need to remove the instrument cluster from the dashboard. This involves removing the plastic bezel and the screws holding the cluster in place.
Tools Needed:
- Flathead screwdriver
- Phillips head screwdriver
- Torx screwdriver (T10 or T15)
Procedure:
1. Remove the Bezel: Use a flathead screwdriver to pry the bezel loose from the dashboard. It is held by clips at the front and pressed into the dash at the back. Start by gently prying the bezel away from the dashboard, working your way around it until it comes free.
2. Remove Screws: Use a Phillips head screwdriver to remove the screws holding the cluster to the dashboard. There are typically four screws located around the edges of the cluster. Make sure to set these screws aside in a safe place to avoid losing them.
3. Disconnect Plugs: Remove the electrical plugs from the back of the cluster. Press the tab on top of each connector and gently pull them out. Be careful not to pull too hard, as the connectors can be fragile.
After removing the cluster, you need to disassemble it to access the LCD screen.
Procedure:
1. Remove Front Lens: Use a Torx screwdriver (T10) to remove the front lens of the cluster. These screws are usually located around the edges of the lens. Once removed, carefully pull the lens away from the cluster.
2. Mark Needle Positions: Before removing the needles, mark their positions so you can align them correctly when reinstalling. Use a small piece of tape or a marker to mark the position of each needle on the gauge face.
3. Remove Needles: Twist the needles counterclockwise and pull them out. Set them aside carefully to avoid bending or damaging them. It's a good idea to place them in a protective container to prevent accidental damage.
4. Remove Additional Tabs and Screws: Continue disassembling by removing any additional tabs and screws that hold the LCD panel in place. These may include small plastic clips or additional Torx screws.
Now that you have access to the LCD, you can replace it with a new one.
Procedure:

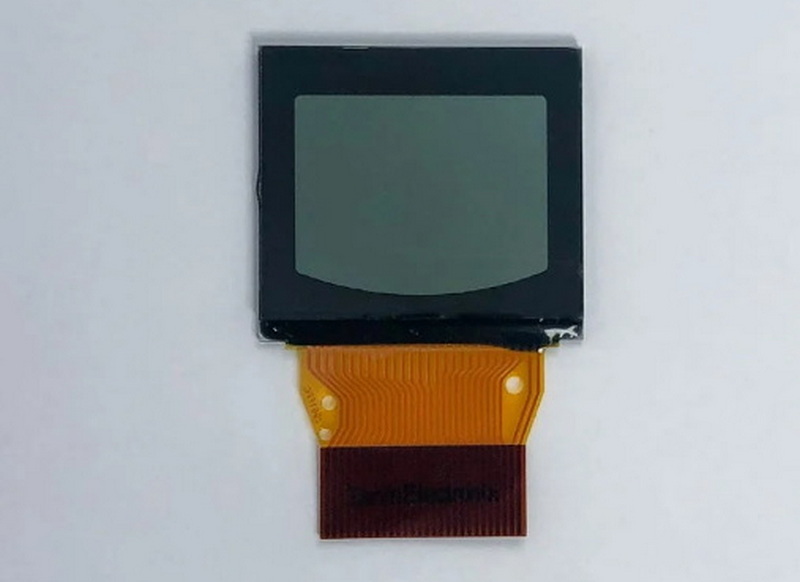

1. Remove Old LCD: Gently pull out the old LCD screen from its mounting. Be careful not to damage the ribbon cable, as it is delicate and can be easily damaged.
2. Install New LCD: Place the new LCD screen into its mounting, ensuring it is securely seated. Peel off any protective film from the new screen to ensure optimal visibility.
3. Connect Ribbon Cable: Carefully connect the ribbon cable to the new LCD. Ensure it is not bent or pinched, as this can cause damage to the cable or the LCD itself. Make sure the connection is secure to avoid any issues with the display.
Reassemble the cluster in reverse order of disassembly.
Procedure:
1. Replace Needles: Align the needles with the marks made earlier and twist them clockwise until they stop. Make sure they are securely fastened to avoid any movement during operation.
2. Replace Front Lens: Snap the front lens back into place using the Torx screws. Ensure they are tightened securely to prevent any rattling or movement.
3. Reconnect Plugs: Plug the electrical connectors back into the cluster. Press them firmly into place until you hear a click, ensuring they are securely connected.
4. Replace Bezel: Snap the bezel back into place, ensuring it is securely clipped. Make sure all clips are engaged to prevent any gaps or unevenness.
- Use Protective Gear: When handling electronic components, it's a good idea to wear an anti-static wrist strap to prevent damage from static electricity.
- Purchase Quality Parts: Ensure the replacement LCD screen is compatible with your vehicle and is of high quality to avoid future issues.
- Consult a Professional: If you are not comfortable with this process, consider consulting a professional mechanic or auto electrician.
During the installation process, you may encounter several challenges. Here are some common issues and their solutions:
- Damaged Ribbon Cable: If the ribbon cable is damaged during removal, it may need to be replaced. Ensure any new cable is compatible with your LCD screen.
- Incorrect Needle Alignment: If the needles are not aligned correctly, the gauges may not function properly. Double-check the alignment marks made during disassembly.
- LCD Not Turning On: If the LCD does not turn on after installation, check the ribbon cable connection and ensure all electrical plugs are securely connected.
For a more detailed visual guide, consider consulting repair manuals or online forums dedicated to Nissan Quest modifications. These resources can provide additional tips and troubleshooting advice.
Installing an LCD display in a 2006 Nissan Quest is a feasible DIY project that can save you money compared to dealership repairs. However, it requires patience and attention to detail to avoid damaging components like the ribbon cable. If you are not comfortable with this process, consider using professional repair services like those offered by Circuit Board Medics or Euro Car Upgrades.

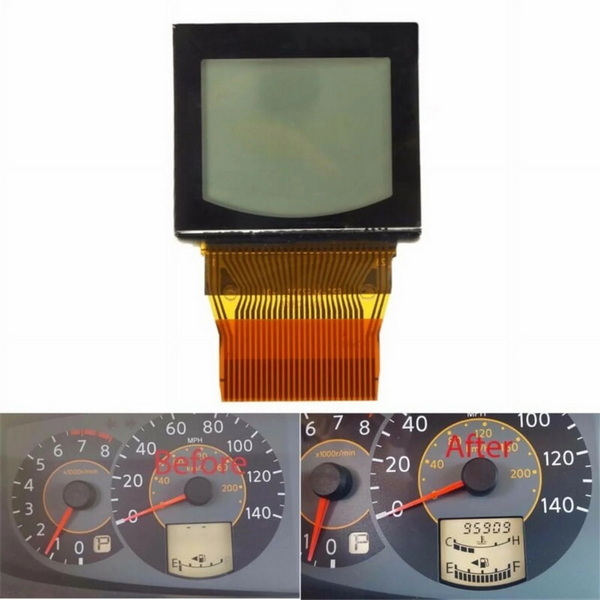

Common issues include pixelated or distorted images, missing pixels resembling a spider web or snowflake pattern, and a completely blank display for the odometer, temperature, and fuel gauges.
To access the instrument cluster, remove the plastic bezel and screws holding it in place. Then, disconnect the electrical plugs from the back of the cluster.
You will need a flathead screwdriver, Phillips head screwdriver, Torx screwdriver (T10 or T15), and possibly a plastic pry tool for removing the bezel and other parts.
Yes, you can install a new LCD screen yourself by following the steps outlined in this guide. However, if you are not comfortable with DIY repairs, it is recommended to seek professional assistance.
You can purchase replacement LCD screens from suppliers like Tanin Auto Electronix or through repair services like Circuit Board Medics.
