In today's technology-driven world, displays are integral to our daily lives, found in everything from smartphones to televisions. Among the most common types are Liquid Crystal Displays (LCD) and Light Emitting Diode (LED) displays. While many people use these terms interchangeably, understanding their differences is crucial for making informed purchasing decisions. This article will guide you through the methods to identify LED and LCD displays, their characteristics, advantages, and disadvantages.
Before diving into identification techniques, it's essential to grasp the basic principles of how these displays function.
- Liquid Crystal Display (LCD) technology utilizes liquid crystals sandwiched between two layers of glass. These crystals do not emit light; instead, they manipulate light from a backlight to create images.
- Historically, LCDs used Cold Cathode Fluorescent Lamps (CCFLs) as backlighting, which provided illumination for the display.
- LCDs are known for their energy efficiency compared to older technologies like Cathode Ray Tube (CRT) displays.

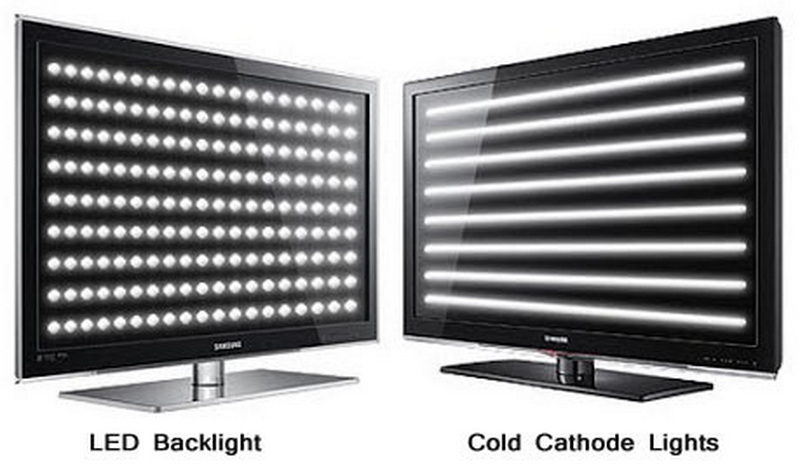

- Light Emitting Diode (LED) displays are essentially a type of LCD that uses LEDs for backlighting instead of CCFLs. This change enhances brightness and color accuracy.
- LED technology can be further divided into two categories:
- Edge-Lit LEDs: LEDs are positioned around the edges of the screen.
- Direct-Lit LEDs: LEDs are placed directly behind the screen, allowing for better brightness and contrast control.
| Feature | LCD | LED |
|---|---|---|
| Backlighting | CCFL | Light Emitting Diodes |
| Brightness | Moderate | Higher |
| Contrast Ratio | Lower | Higher |
| Thickness | Thicker | Thinner |
| Energy Efficiency | Good | Better |
| Lifespan | Average | Longer |
| Color Accuracy | Good | Better |
Identifying whether a display is an LED or an LCD can be straightforward if you know what to look for. Here are some effective methods:
The easiest way to determine the type of display is by checking its specifications. Look for terms like "LED backlighting" or "LCD with fluorescent backlight" in the product manual or online description.
LED displays are generally thinner than traditional LCDs due to the compact nature of LED technology. If you can physically compare two screens, note that the LED model will likely be slimmer.
LED displays typically offer higher brightness levels and better contrast compared to LCDs. Turn on both screens in a dimly lit environment; observe how vibrant and deep the colors appear.
Many manufacturers label their products to highlight the use of LED technology. Check for stickers or labels on the device indicating it is an "LED display."
LED screens tend to be more energy-efficient than their LCD counterparts. If you have access to power consumption information, compare the ratings—lower consumption often indicates an LED display.
When viewed from different angles, LCD displays may show color distortion or decreased brightness, whereas LED displays maintain consistent color and brightness even at wider angles.
Understanding the pros and cons of each display type can help you make a more informed decision based on your needs.
- Generally more affordable than LED displays.
- Consistent lighting across the screen.
- Some models offer matte finishes that reduce glare.
- Lower brightness and contrast ratios compared to LEDs.
- Typically thicker and heavier.
- Shorter lifespan due to CCFL backlighting degradation over time.
- Higher brightness levels and better contrast ratios.
- Thinner and lighter design.
- Longer lifespan due to efficient LED technology.
- Higher initial cost compared to standard LCDs.
- Some edge-lit models may suffer from uneven lighting.
Both display technologies have diverse applications across various industries due to their unique characteristics.
- Consumer Electronics: Widely used in televisions, computer monitors, laptops, tablets, and smartphones due to their high resolution and clarity.
- Digital Signage: Employed in advertising displays, kiosks, and public information systems in airports and train stations.
- Medical Equipment: Utilized in diagnostic imaging devices such as ultrasound machines and patient monitoring systems.
- Outdoor Advertising: Commonly used in billboards and large-scale signage due to their high brightness levels that remain visible even in sunlight.
- Television Screens: Increasingly popular for home entertainment systems due to superior picture quality and energy efficiency.
- Event Venues: Used in concerts and sports arenas for dynamic video displays that enhance audience engagement.
As technology continues to evolve, new advancements are emerging within both LED and LCD sectors:
MicroLED is a cutting-edge technology that uses microscopic LEDs as individual pixels. This innovation promises superior image quality with deeper blacks, higher brightness levels, and improved energy efficiency compared to traditional LED displays.
Quantum dot technology enhances both LCDs and LEDs by using tiny semiconductor particles that emit specific colors when illuminated. This results in richer colors and improved color accuracy across various lighting conditions.
MiniLED is a newer form of backlighting that utilizes smaller LEDs packed more densely than traditional LEDs. This allows for greater control over dimming zones within a display, resulting in enhanced contrast ratios and better overall image quality.
In summary, while both LED and LCD displays utilize liquid crystals to produce images, their differences primarily lie in their backlighting technology. Understanding how to identify these technologies allows consumers to make informed choices based on their specific needs regarding brightness, energy efficiency, lifespan, and cost. As technology advances further with innovations like MicroLEDs and quantum dots, consumers can expect even better performance from future display technologies.
The primary difference lies in the backlighting technology: LCD uses CCFLs while LEDs use light-emitting diodes for backlighting.
Yes, all LED displays are a type of LCD that uses LEDs for backlighting instead of fluorescent lights.
LED displays generally offer better contrast ratios and faster response times, making them more suitable for gaming compared to traditional LCDs.
You can check specifications, observe thickness, assess brightness levels, look for labels indicating "LED," or evaluate power consumption ratings.
Yes, LED displays are typically more energy-efficient than traditional CCFL-backlit LCDs due to their lower power consumption characteristics.
