The Nissan Quest is a versatile minivan known for its reliability and spacious interior. However, like many vehicles, it can experience issues with its LCD display, particularly in the instrument cluster. This problem often manifests as a pixelated or distorted display, making it difficult to read vital information such as mileage, fuel level, and temperature. In this article, we will explore the causes of these issues and provide step-by-step solutions to fix them.
The LCD display problem in Nissan Quest vehicles is commonly associated with a faulty ribbon cable or the LCD screen itself. Over time, the connections can become loose or damaged, leading to display malfunctions. Before diving into the repair process, it's essential to understand the possible causes and the tools required for the job.
To fix the LCD display problem, you may need the following tools and parts:
- Replacement LCD Display: Available on platforms like Amazon.

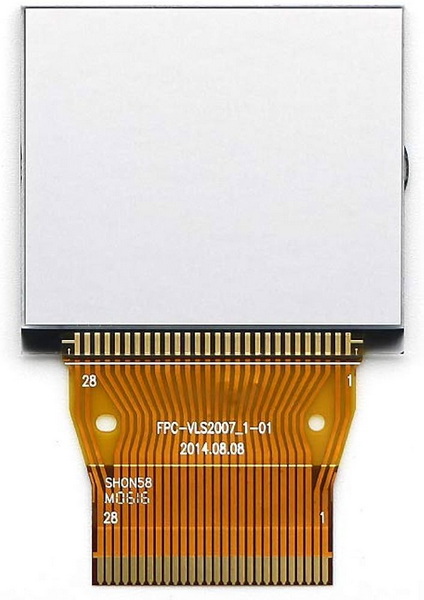

- Ribbon Cable: Can be purchased separately or as part of a repair kit.
- Soldering Iron: Necessary for reconnecting the ribbon cable.
- Precision Screwdriver Set: For disassembling the instrument cluster.
- Car Panel Removal Tool Kit: Helps in safely removing the dashboard panels.
There are three primary options for addressing the LCD display issue:
1. Send to a Repair Shop: This involves removing the instrument cluster and sending it to a professional repair service. While convenient, it can be costly and may take several days.

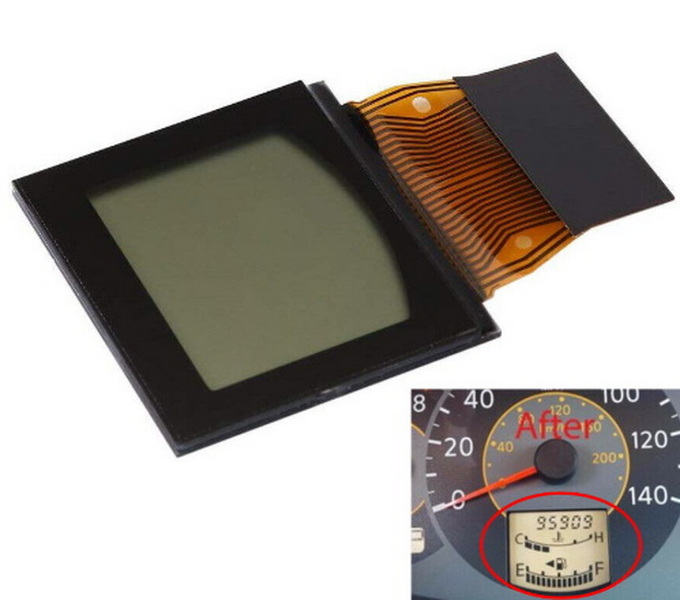

2. Replace the LCD Display: Buying a new LCD display with a pre-attached ribbon cable is a straightforward solution. However, it might be more expensive than replacing just the ribbon cable.
3. Replace the Ribbon Cable: This is the most cost-effective option but requires more effort and technical skill. It involves disassembling the instrument cluster to replace the faulty ribbon cable.

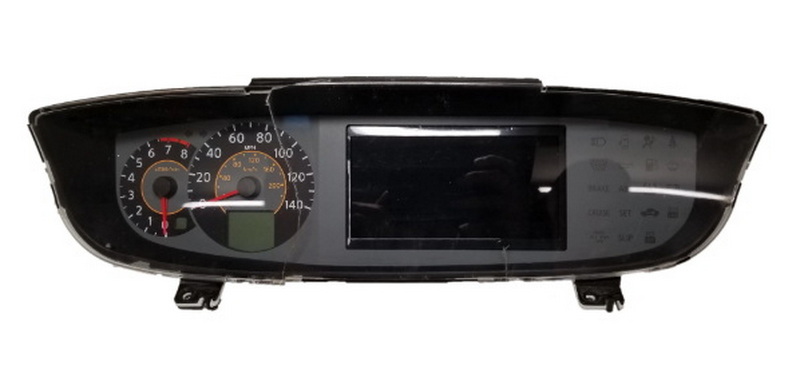

To access the LCD display, you need to remove the instrument cluster from the dashboard. This involves:
- Removing the plastic shroud around the cluster.
- Unscrewing the Phillips screws holding the cluster in place.
- Disconnecting the electrical connectors at the back.
Once removed, you'll need to disassemble the cluster to access the LCD display:
- Remove the front cover by releasing the clips.

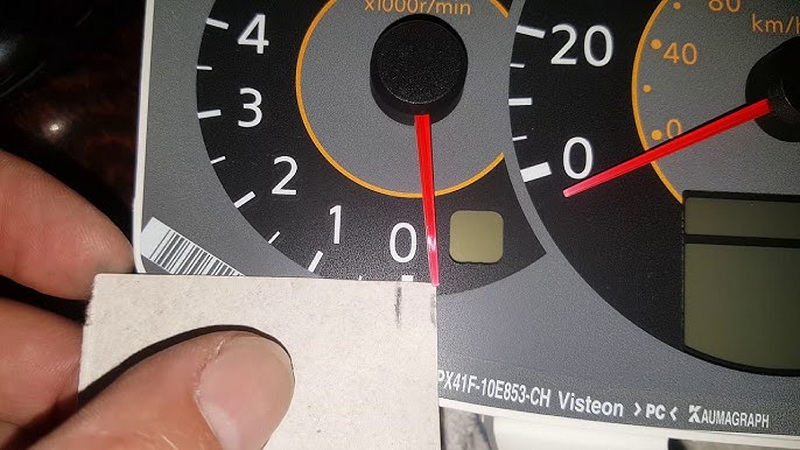

- Pull out the needles by turning them counterclockwise and lifting them off.
- Carefully remove the old ribbon cable from the LCD display.
- Clean the contacts with rubbing alcohol.
- Align the new ribbon cable with the marked positions and solder it in place using a soldering iron.
- Reinstall the circuit board and ensure the ribbon cable is not pinched.
- Put back the needles and front cover.
- Connect all electrical connectors and test the display before reinstalling the instrument cluster.
If you're not comfortable with DIY repairs, professional services like Circuit Board Medics offer comprehensive instrument cluster repairs. They provide a one-year warranty and fast turnaround times, making them a reliable option for those who prefer not to tackle the repair themselves.
Before proceeding with any repairs, it's crucial to troubleshoot the issue thoroughly. Here are some tips to help you identify the problem:
- Check for Loose Connections: Ensure all electrical connectors are securely attached.
- Inspect the Ribbon Cable: Look for signs of damage or corrosion.
- Test the LCD Display: If possible, test the display with a different power source to rule out other electrical issues.
To prevent future LCD display problems, regular maintenance is key:
- Regular Cleaning: Use a soft cloth to clean the instrument cluster and LCD display.
- Avoid Extreme Temperatures: High temperatures can cause the ribbon cable to degrade faster.
- Secure Connections: Ensure all electrical connections are secure and not loose over time.
The cost of fixing the LCD display problem varies significantly depending on the chosen method:
- Ribbon Cable Replacement: Approximately $10 to $20 for the cable.
- New LCD Display: Around $60 to $70 for a display with a pre-attached ribbon cable.
- Professional Repair: Prices vary but generally save money compared to dealership services.
The time required to fix the LCD display issue also varies:
- DIY Ribbon Cable Replacement: Several hours, depending on your technical skill level.
- Professional Repair: Typically a one-day turnaround.
While a malfunctioning LCD display is generally not a safety hazard, it can be inconvenient and may lead to incorrect readings. Therefore, addressing the issue promptly is important for maintaining your vehicle's overall performance and safety.
For those opting for DIY repairs, here are some additional tips:
- Use Proper Tools: Ensure you have the right tools to avoid damaging the instrument cluster or LCD display.
- Follow Instructions Carefully: Pay close attention to the disassembly and reassembly process to avoid mistakes.
- Test Thoroughly: Before reinstalling everything, test the display to ensure it's working correctly.
Fixing the LCD display problem in a Nissan Quest can be a cost-effective and rewarding DIY project if you're comfortable with basic electronics and disassembly. However, for those who prefer not to tackle the repair themselves, professional services offer reliable and efficient solutions. Whether you choose to replace the ribbon cable or the entire LCD display, ensuring that your vehicle's instrument cluster functions correctly is crucial for safety and convenience.
- Precision screwdriver set, soldering iron, and a new ribbon cable.
- No, you need to remove the cluster to access the LCD display.
- Prices vary but generally save money compared to dealership services.
- Check for loose connections or consider replacing the LCD screen.
- While not ideal, it is generally safe, but you should address the issue as soon as possible for accurate readings.
