Liquid Crystal Displays (LCDs) have become ubiquitous in our daily lives, from simple digital clocks to complex smartphone screens. While most modern applications use microcontrollers to drive these displays, it's possible and educational to operate an LCD without one. This article will explore the fascinating world of LCD operation, focusing on how to display information on an LCD without relying on a microcontroller.
Before diving into the process of driving an LCD without a microcontroller, it's crucial to understand the basic principles of how LCDs work.
An LCD consists of a layer of liquid crystal material sandwiched between two polarizing filters. When an electric current is applied, the liquid crystals align in a way that either blocks or allows light to pass through, creating visible patterns on the screen.

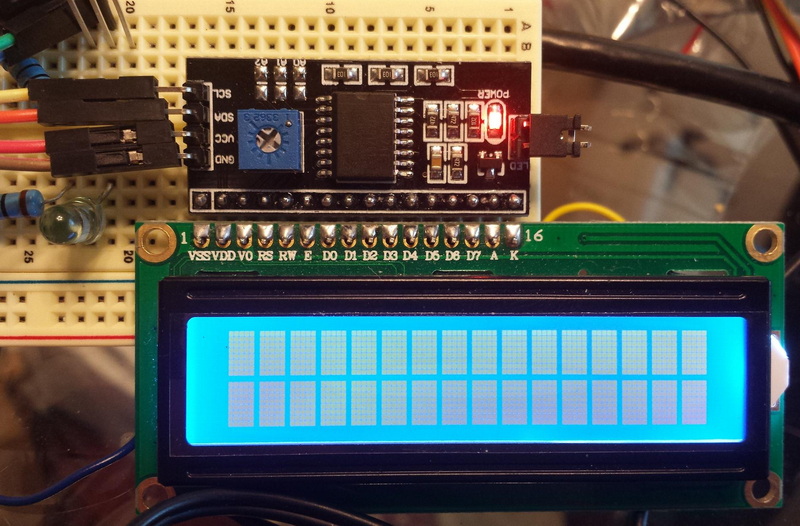

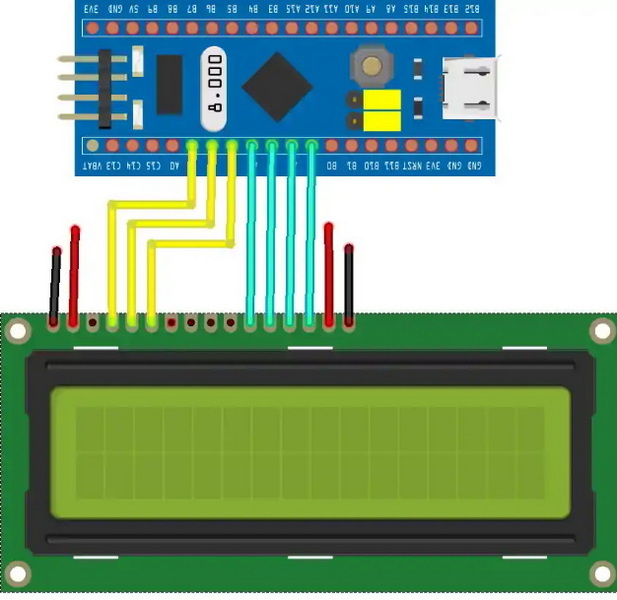

Most LCD modules come with built-in controllers, such as the popular HD44780 or its variants. These controllers handle the complex task of driving the individual pixels or segments of the display. The HD44780 is widely used in character LCDs, which are capable of displaying text and simple graphics.
To control an LCD without a microcontroller, we need to manually handle the tasks that a microcontroller would typically manage. This includes:
1. Power supply management: Ensuring a stable voltage supply is crucial for reliable operation. Most LCDs require a 5V power supply, but some may operate at different voltages.
2. Contrast adjustment: The contrast of the display is adjusted using a potentiometer connected to the contrast pin. Proper contrast adjustment is essential for clear visibility.
3. Initialization sequence: The initialization sequence is crucial for proper LCD operation. Without a microcontroller, you'll need to manually perform this sequence using switches or other manual input methods. The typical sequence involves setting the display mode, clearing the display, and setting the cursor position.
4. Data and command signaling: You must manually set the data and control lines to send commands or data to the LCD. This involves toggling switches to represent binary data and pulsing the enable pin to latch the data.
There are several ways to manually control an LCD without a microcontroller:

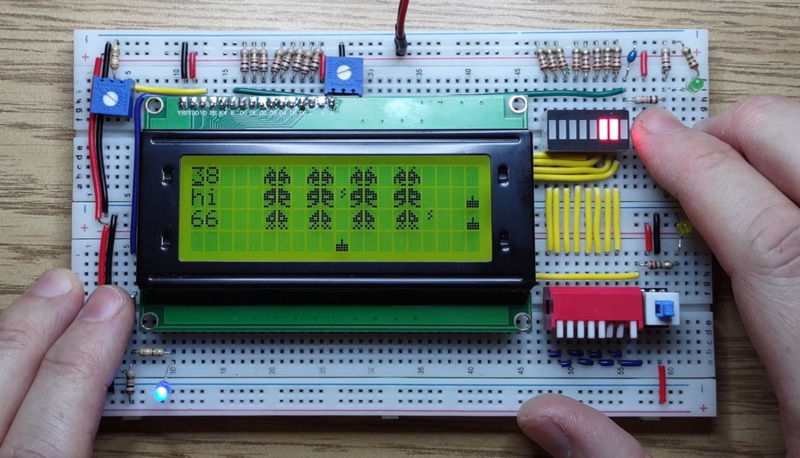

Using a series of toggle switches, you can manually set the data and control lines of the LCD. This method is the most basic and educational, as it gives you a hands-on understanding of how each pin affects the display. For example, setting the RS (Register Select) pin high selects data mode, while setting it low selects command mode.
Rotary encoders can be used to cycle through characters or commands, providing a more user-friendly interface compared to individual switches. This method is useful for applications where you need to scroll through a list of options.
A matrix keypad can be wired directly to the LCD's data pins, allowing for more complex input without a microcontroller. This setup enables users to input data or commands using a keypad layout.
Let's walk through the process of displaying the text "HELLO WORLD" on a 16x2 LCD without using a microcontroller:
1. Power Up: Connect the LCD to your power supply. Ensure that the power supply is stable and provides the necessary voltage.
2. Set Contrast: Adjust the potentiometer to set the proper contrast. This step is crucial for ensuring that the text is visible on the screen.
3. Initialization:
- Set RS (Register Select) low for command mode.
- Set R/W (Read/Write) low for write mode.
- Send the initialization commands by toggling the data pins and the E (Enable) pin. The typical initialization sequence includes setting the display mode (e.g., 8-bit mode), clearing the display, and setting the cursor position.
4. Enter Data Mode:
- Set RS high for data mode.
5. Send Characters:
- For each character in "HELLO WORLD":
- Set the data pins to represent the ASCII value of the character.
- Pulse the E pin to latch the data. This process involves converting each character into its binary ASCII representation and manually setting the data pins accordingly.
6. Move to Second Line:
- Set RS low for command mode.
- Send the command to move the cursor to the second line.
- Set RS high to return to data mode. This step is necessary if you want to display text on multiple lines.
7. Continue Sending Characters if needed. If your text exceeds the first line, you'll need to repeat the process for the second line.
While controlling an LCD without a microcontroller may seem impractical for most applications, it offers several educational benefits:
1. Deep Understanding: It provides a thorough understanding of LCD operation at a low level. By manually controlling each pin, you gain insight into how the LCD responds to different commands and data inputs.
2. Debugging Skills: Enhances your ability to troubleshoot LCD issues in microcontroller-based projects. Understanding the manual control process helps you identify and fix problems more effectively.
3. Hardware Appreciation: Develops a greater appreciation for the convenience that microcontrollers and libraries provide. Once you've experienced manual control, you'll better understand the value of automated systems.
4. Educational Tool: Serves as an excellent teaching aid for electronics and computer science courses. Students can learn fundamental concepts of digital electronics and display technology through hands-on experiments.
Although rare, there are some practical applications for controlling LCDs without microcontrollers:
For very basic, rarely changing displays, a manual control system might be sufficient and cost-effective. Examples include simple digital signs or informational displays in public spaces.
In critical systems where microcontroller failure is unacceptable, a manual override system for essential information display could be implemented. This ensures that critical information can still be displayed even if the primary control system fails.
Interactive art pieces might use manual LCD control as part of the artistic concept. Artists can create unique interactive experiences by leveraging manual control methods.
While fascinating, controlling an LCD without a microcontroller has significant limitations:
1. Complexity: Even simple displays require managing multiple pins and precise timing. This complexity makes manual control impractical for complex displays or dynamic content.
2. Speed: Manual control is much slower than microcontroller-based systems. This makes it unsuitable for applications requiring rapid updates or real-time data display.
3. Functionality: Advanced features like scrolling or animations are extremely difficult to implement manually. These features are common in modern displays and are easily handled by microcontrollers.
4. Scalability: As display complexity increases, manual control becomes increasingly impractical. Larger displays or those with more complex graphics require automated control systems.
As technology advances, the idea of controlling LCDs without microcontrollers might seem increasingly obsolete. However, the principles learned from this exercise remain valuable:
1. IoT and Edge Computing: Understanding low-level display control can be beneficial when working with resource-constrained IoT devices. In some IoT applications, minimizing power consumption and complexity is crucial.
2. Custom Display Solutions: Knowledge of direct LCD control can lead to innovative display solutions in specialized fields. By understanding the fundamental principles, developers can create custom displays tailored to specific needs.
3. Education: The hands-on nature of manual LCD control will continue to be an excellent educational tool for future engineers and hobbyists. It provides a tangible way to learn about digital electronics and display technology.
Controlling an LCD without a microcontroller is a challenging but rewarding exercise that provides deep insights into the workings of these ubiquitous display devices. While not practical for most real-world applications, the knowledge gained from this process is invaluable for anyone working with embedded systems or display technologies.
As we continue to push the boundaries of what's possible with display technology, understanding the fundamental principles of LCD operation remains crucial. Whether you're a student, hobbyist, or professional engineer, exploring LCD control at this low level can enhance your skills and broaden your perspective on digital display systems.
Controlling an LCD without a microcontroller requires manual management of all timing, data, and control signals, which is typically handled automatically by a microcontroller. This manual process is much slower and more complex but provides a deeper understanding of LCD operation.
Most character LCDs with built-in controllers (like those based on the HD44780) can be controlled manually. However, graphical LCDs, especially color ones, are generally too complex for practical manual control and require dedicated controllers or microprocessors.
The essential components include a power supply, contrast adjustment potentiometer, toggle switches or other input devices for data and control lines, and the LCD module itself. Optionally, you might include LEDs for visual feedback of pin states.
While theoretically possible, creating animations on an LCD without a microcontroller would be extremely challenging and impractical. It would require rapidly changing multiple inputs manually, which is beyond human capabilities for smooth animation.
Understanding manual LCD control provides insights into timing requirements, initialization sequences, and potential issues that can arise in LCD interfaces. This knowledge can be invaluable when debugging microcontroller-based LCD projects or optimizing LCD libraries for specific applications.
