The Raspberry Pi is a versatile and affordable single-board computer that has been widely used in various projects, including home automation, robotics, and IoT applications. One popular project involves using the Raspberry Pi to display time on an LCD screen. This guide will walk you through the process of setting up and programming your Raspberry Pi to display time on an LCD display.
The Raspberry Pi is a compact computer that can run a full-fledged operating system, making it an ideal choice for DIY projects. When paired with an LCD display, it can be used to create a digital clock, weather station, or even a home automation system.
There are several types of LCD displays available for the Raspberry Pi, including character LCDs and TFT displays. Character LCDs are simpler and more cost-effective, typically displaying text in a matrix format. TFT displays, on the other hand, offer color and higher resolution, making them suitable for more complex graphical interfaces.
Character LCDs are ideal for displaying time due to their simplicity and low power consumption. They usually come in sizes like 16x2 or 20x4, which means they can display 16 or 20 characters per line across two or four lines, respectively. For more advanced projects, TFT displays can be used to create interactive interfaces with touch capabilities.
Before you start, ensure your Raspberry Pi is set up with the latest version of Raspbian, the official operating system. This can be downloaded from the Raspberry Pi Foundation's website. Setting up the Pi involves flashing the Raspbian image onto an SD card and booting up the device.
To display time on an LCD, you will need to install the appropriate libraries. For character LCDs, you might use the `Adafruit_CharLCD` library, while for TFT displays, you might use a library like `Pygame` or `Tkinter` for more complex graphical interfaces. These libraries simplify the process of communicating with the LCD and displaying content.

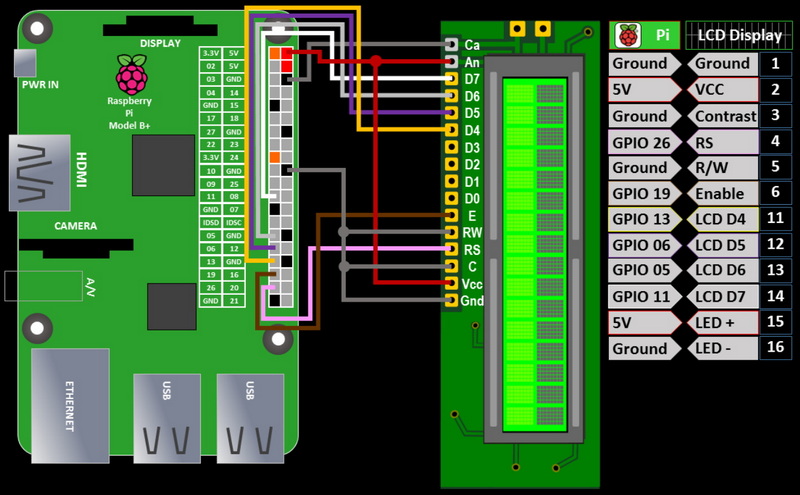

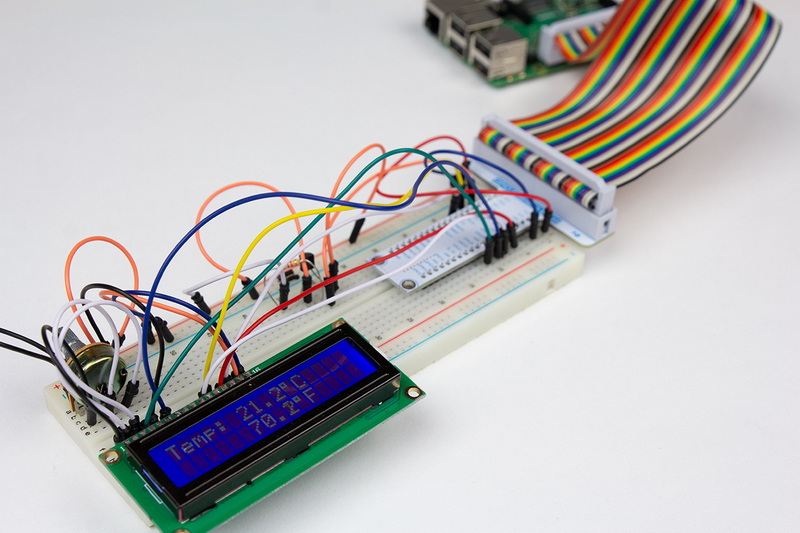

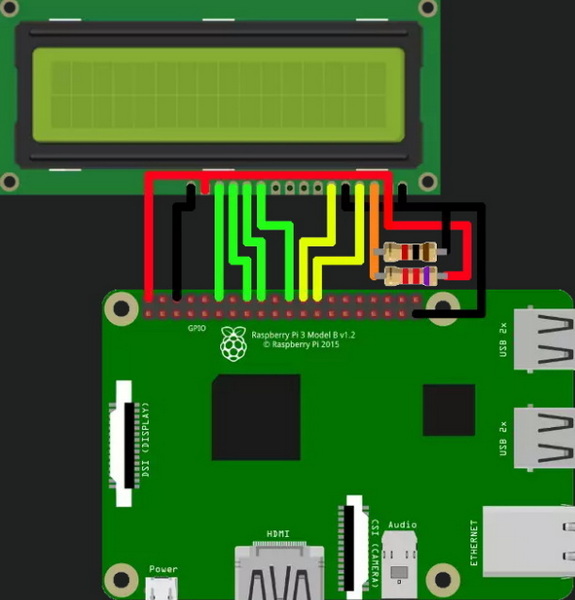

Connecting an LCD to a Raspberry Pi involves wiring the display to the GPIO pins. Here's a general overview of how to connect a character LCD:
1. VCC to 3.3V on the Pi
2. GND to GND on the Pi
3. RS (Register Select) to a GPIO pin (e.g., GPIO17)
4. E (Enable) to a GPIO pin (e.g., GPIO23)
5. D4-D7 (Data Lines) to GPIO pins (e.g., GPIO24, GPIO25, GPIO5, GPIO6)
For I2C LCDs, you would connect the SCL and SDA lines to the corresponding GPIO pins on the Pi.
To display time on the LCD, you will need to write a Python script that retrieves the current time and updates the display. The script should continuously update the time to ensure it remains accurate. You can use libraries like `datetime` to get the current time and format it as desired.
Imagine you have a character LCD connected to your Raspberry Pi. You want to display the current time in the format "HH:MM:SS" on the first line of the display. You can achieve this by writing a Python script that uses the `Adafruit_CharLCD` library to interact with the LCD.
- Flickering Display: This can occur if the update interval is too short. Adjust the delay between updates to prevent flickering.
- Incorrect Time: Ensure your Raspberry Pi's system time is correctly set. You can use the `sudo raspi-config` command to set the time zone and ensure your Pi is connected to the internet for automatic time updates.
Beyond displaying time, you can use your Raspberry Pi and LCD to monitor other data, such as weather forecasts or energy usage from solar panels.

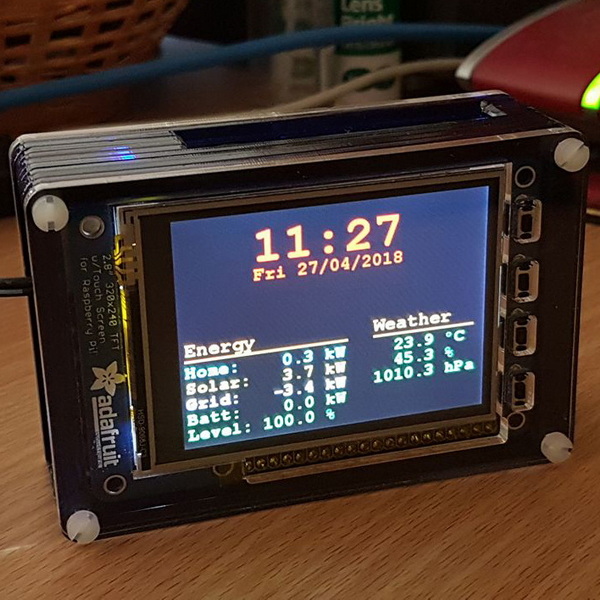

Using a TFT display, you can create a system that displays real-time data from your home solar panels, including energy production and consumption. This can be achieved by integrating sensors that measure voltage and current output from the panels and then calculating the energy produced.
Another project involves creating a weather station that displays temperature, humidity, and pressure data. You can use sensors like the DHT11 for temperature and humidity and the BMP180 for pressure. The data can be displayed on the LCD, providing real-time weather updates.
As you gain experience with your Raspberry Pi and LCD projects, you can expand them in various ways:
- Adding More Sensors: Incorporate additional sensors to monitor more environmental parameters or system metrics.
- Implementing Automation: Use the data collected to automate tasks, such as turning on lights based on ambient light levels.
- Creating a Web Interface: Develop a web interface to remotely monitor and control your project.
Displaying time on an LCD from a Raspberry Pi is a fun and educational project that introduces you to the world of DIY electronics and programming. With the right setup and a bit of creativity, you can expand this project into more complex applications, such as home automation systems or environmental monitoring stations.
- Character LCDs are ideal for displaying time due to their simplicity and cost-effectiveness.
- Adjust the update interval in your script to ensure it is not too short.
- Yes, any model of Raspberry Pi can be used, including the Pi Zero.
- Use the `sudo raspi-config` command to set the time zone and ensure your Pi is connected to the internet for automatic time updates.
- Yes, you can display additional information such as date, weather, or system data.
