Displaying text on an LCD screen using an Arduino is a fundamental project for beginners in electronics and programming. This guide will walk you through the process of setting up a simple circuit, connecting the components, and programming the Arduino to display text on an LCD. Along the way, we will provide detailed explanations and address common questions to ensure a comprehensive understanding.

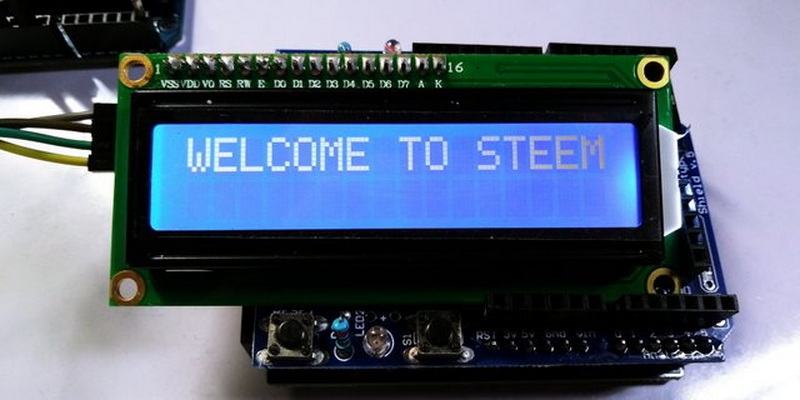

LCDs (Liquid Crystal Displays) are widely used in electronics projects to display information such as text, numbers, or even custom characters. The most common type is the 16×2 LCD, which can display two rows of 16 characters each. This tutorial will focus on using a 16×2 LCD with an Arduino board to display static and dynamic text.
- Versatility: LCDs can display a variety of information, from simple text messages to complex data like sensor readings.
- Ease of Use: With the right libraries, programming an LCD is straightforward.
- Cost-Effective: LCDs are inexpensive compared to other display technologies.
To build this project, you will need:
- 1x Arduino Uno (or compatible board)
- 1x 16×2 LCD module
- 1x Breadboard
- 1x Potentiometer (10kΩ)
- Jumper wires
- USB cable for Arduino
- Power source (optional)
- Arduino Uno: The brain of your project, responsible for processing and executing instructions.
- 16×2 LCD: Displays text or characters in a 16-character by 2-line format.
- Breadboard: A platform for prototyping and connecting components without soldering.
- Potentiometer: Used to adjust the contrast of the LCD display.
- Jumper Wires: Connect components on the breadboard to the Arduino.
The 16×2 LCD has specific pins that need to be connected to the Arduino for proper functionality:
| Pin Name | Description |
|---|---|
| VSS | Ground |
| VDD | Power (5V) |
| V0 | Contrast adjustment |
| RS | Register Select |
| RW | Read/Write |
| E | Enable signal |
| D4-D7 | Data pins |
| A | Backlight Anode (+) |
| K | Backlight Cathode (-) |
The contrast of the display is controlled using a potentiometer connected to pin V0.
LCDs use liquid crystals to block or allow light to pass through a matrix of pixels. The pixels are arranged in a grid that corresponds to the characters displayed on the screen. By applying an electric field, the orientation of the liquid crystals changes, allowing or blocking light and thus creating images.

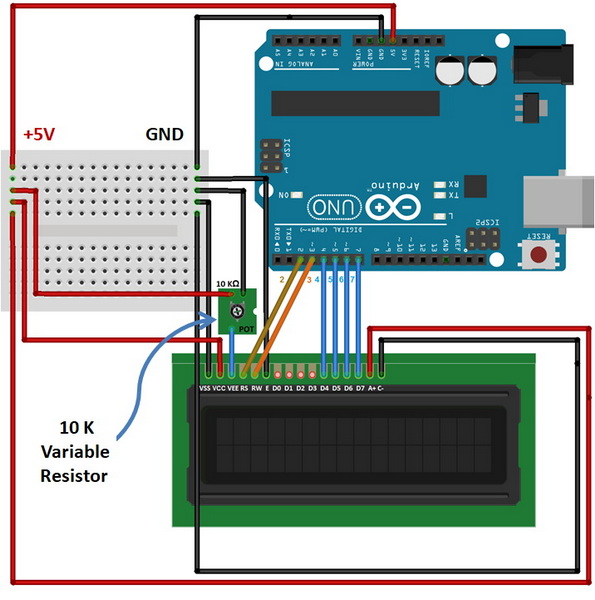

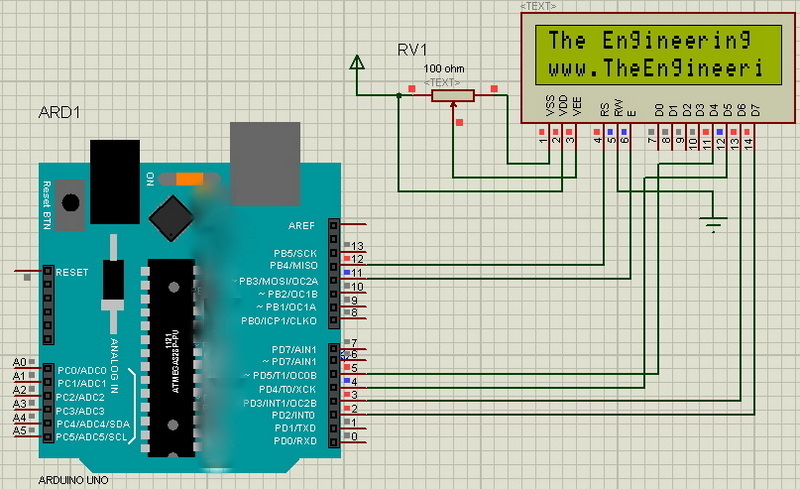

Follow these steps to connect your LCD module to the Arduino:
1. Connect VSS to GND and VDD to 5V on the Arduino.
2. Attach the middle pin of the potentiometer to V0, and connect its other two pins to GND and 5V.
3. Connect RS, RW, and E pins of the LCD to digital pins on the Arduino. Typically, RS is connected to pin 12, RW to pin 11, and E to pin 10.
4. Connect data pins D4-D7 of the LCD to digital pins on the Arduino. Commonly, D4-D7 are connected to pins 5-8.
5. Connect A and K pins for backlight power. These are usually connected to 5V and GND, respectively.
- Use a breadboard to keep your connections organized.
- Double-check all connections before powering up the circuit.
Once your hardware is set up, you can program your Arduino using the LiquidCrystal library. This library simplifies communication with the LCD.
1. Import the LiquidCrystal library.
2. Initialize communication with `lcd.begin(16, 2)`.
3. Use `lcd.print()` to display text on the screen.
4. Optionally, use `lcd.setCursor()` to position text.
Displaying "Hello World!" on the LCD is a classic example. You can also display dynamic data like sensor readings or time.
You can create custom characters using the `lcd.createChar()` function. This is useful for displaying icons or symbols not available in the standard character set.
I2C modules simplify wiring by reducing the number of pins needed to communicate with the LCD. This is especially useful when working with multiple displays or in projects where space is limited.
You can update the text on the LCD dynamically by using variables or functions that change over time. This is useful for displaying real-time data from sensors or other sources.
Here are some common problems you might encounter and their solutions:
- Check if V0 is properly connected via a potentiometer.
- Ensure power (VDD) and ground (VSS) connections are secure.
- This indicates improper initialization. Verify your code and connections.
- Check if A and K pins are connected correctly for backlight power.
- Ensure data pins D4-D7 are wired correctly.
- Reset your Arduino after uploading new code.
Displaying text on an LCD with Arduino is a rewarding project that introduces key concepts in electronics and programming. By following this guide, you can create dynamic displays for various applications such as clocks, temperature monitors, or interactive projects. The versatility of LCDs combined with the ease of use of Arduino makes this a great starting point for beginners and experienced makers alike.
You can use various types of LCDs like 16×2, 20×4 character displays, or even graphical TFT displays depending on your project needs.
Use a potentiometer connected to pin V0 for contrast adjustment. Brightness can be controlled by varying the current through backlight pins A and K.
Yes, by assigning different control pins or using I2C modules for each display.
An I2C module reduces wiring complexity by allowing communication over just two wires (SDA and SCL).
This could indicate reversed power connections or excessive current through backlight pins.
