Displaying information on an LCD (Liquid Crystal Display) screen is a fundamental skill in electronics and programming, especially when working with microcontrollers like Arduino. This article will guide you through the process of setting up and programming an LCD display, focusing on the popular 16x2 LCD model. We will explore the hardware setup, programming basics, and advanced features like scrolling text and custom characters.
LCD displays are widely used in electronic devices due to their low power consumption and versatility. The 16x2 LCD is a common choice for beginners because it is affordable and easy to use. It can display up to 32 characters (16 characters per line across two lines). Understanding how LCDs work is essential for effective use. LCDs use liquid crystals to block or allow light to pass through a matrix of pixels, creating images or text.
The LCD has several pins that need to be connected to the Arduino:
- Vss/Vcc: Power supply pins.
- Vo: Contrast pin to adjust the display's visibility.
- RS: Register Select pin to choose between command or data mode.
- R/W: Read/Write pin to select read or write operation.
- Enable: Enables writing to the LCD.
- D0-D7: Data pins for transferring data.
- Backlight: Optional pins for backlight control.
To connect the LCD to an Arduino, follow these steps:
1. Connect Power and Ground: Vss to GND, Vcc to 5V.
2. Connect Data Pins: D4-D7 to digital pins on Arduino (e.g., pins 4-7).
3. Connect Control Pins: RS to a digital pin (e.g., pin 1), Enable to another digital pin (e.g., pin 2), and R/W to GND.
4. Contrast Adjustment: Connect Vo to a potentiometer for contrast adjustment.
- Ensure all connections are secure to avoid errors.
- Use a breadboard for easier prototyping.
- Adjust the contrast using the potentiometer for optimal visibility.
To program the LCD, you'll need the LiquidCrystal library. Here's a basic overview of how to use it:
- Initialize the LCD: Use `lcd.begin(16,2)` to set up a 16x2 display.
- Print Text: Use `lcd.print("Hello World")` to display text.
- Set Cursor Position: Use `lcd.setCursor(0,1)` to move the cursor to the second line.
- Scrolling Text: Use `scrollDisplayLeft()` or `scrollDisplayRight()` to scroll text.
- Custom Characters: Create custom characters using the `createChar()` function.
- Clearing the Screen: Use `lcd.clear()` to clear the display.

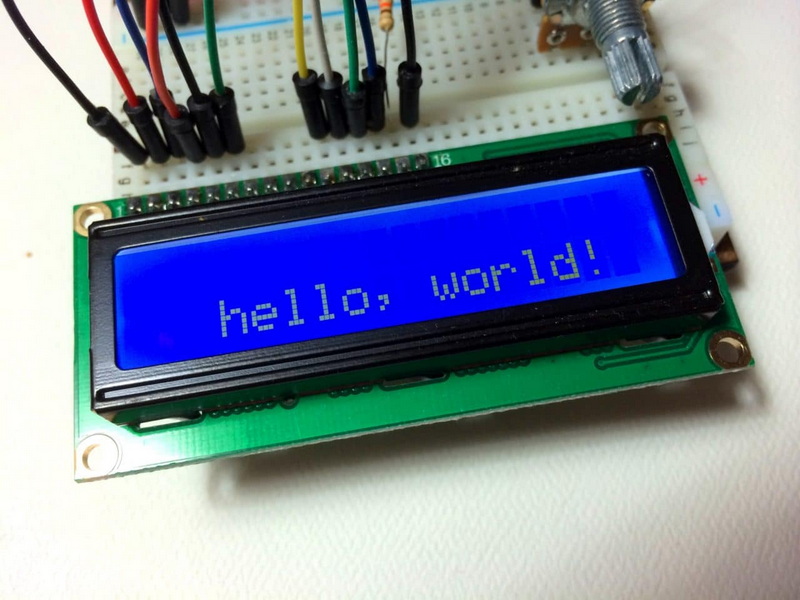

A simple program might look like this:
- Initialize the LCD.
- Print "Hello World" on the first line.
- Set the cursor to the second line and print "Arduino LCD".
1. Power and Ground: Connect Vss to GND and Vcc to 5V.
2. Data Pins: Connect D4-D7 to digital pins on Arduino.
3. Control Pins: Connect RS and Enable to digital pins, and R/W to GND.
Use a potentiometer connected to the Vo pin to adjust the contrast for better visibility.
Use the `scrollDisplayLeft()` or `scrollDisplayRight()` functions from the LiquidCrystal library.
Use the `createChar()` function to define custom characters, which can be used with `write()`.
Connect the backlight pins to a power source and ground, or use a transistor for control.
For more complex projects, you might want to integrate sensors or other components with your LCD display. For example, you could display temperature readings from a thermistor or show the status of a button press.
- Temperature Sensor: Use a thermistor or DS18B20 to read temperature and display it on the LCD.
- Button Input: Connect a button to an Arduino pin and display its state on the LCD.
- Weather Station: Display temperature, humidity, and pressure readings.
- Alarm Clock: Use an RTC module to display time and set alarms.
- Quiz Game: Display questions and answers, and track scores.
- No Display: Check connections and contrast.
- Incorrect Characters: Verify data pin connections and ensure the correct library is used.
- Backlight Not Working: Check backlight pin connections and power supply.
Displaying information on an LCD screen with Arduino is a straightforward process that involves setting up the hardware and programming the display using the LiquidCrystal library. With features like scrolling text and custom characters, LCDs can enhance the interactivity of your projects. By integrating sensors and other components, you can create more complex and useful projects.
A: The 16x2 LCD is the most common due to its simplicity and cost-effectiveness.
A: Use a potentiometer connected to the Vo pin.
A: Yes, by using scrolling functions.
A: Connect the backlight pins directly to power and ground, or use a transistor for control.
A: The LiquidCrystal library.
