Displaying numbers on an LCD (Liquid Crystal Display) is a fundamental task in electronics and programming, especially when working with microcontrollers like Arduino. This article will guide you through the basics of LCD displays, how to connect and program them to display numbers, and address common issues that may arise during this process.

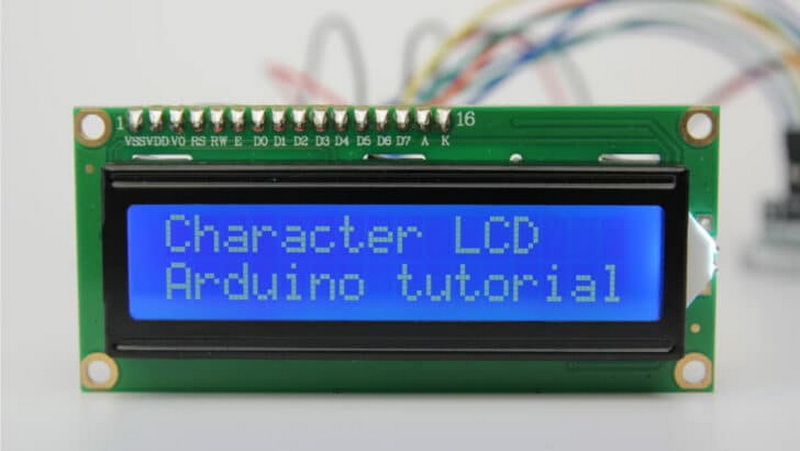

LCDs are widely used in various applications due to their low power consumption and high readability. They consist of a matrix of liquid crystals that block or allow light to pass through when an electric current is applied. LCDs require a backlight to be visible since they do not emit light themselves.
- Display Matrix: The actual display area where characters or numbers are shown.
- Backlight: Provides light for visibility.
- Control Pins: Used to communicate with microcontrollers, such as RS (Register Select), E (Enable), R/W (Read/Write), and D0-D7 (Data pins).

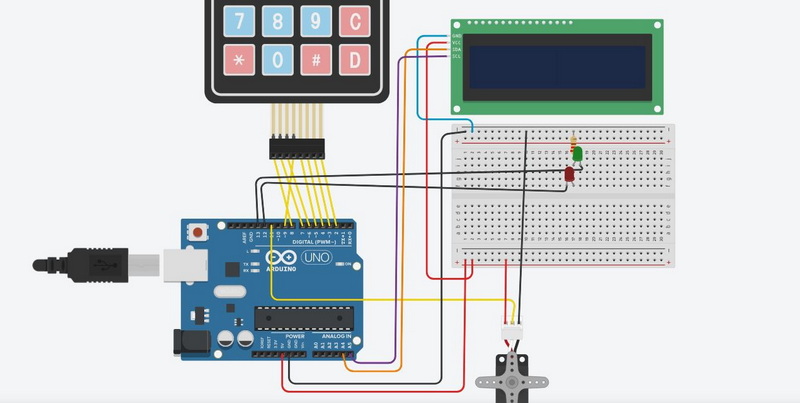

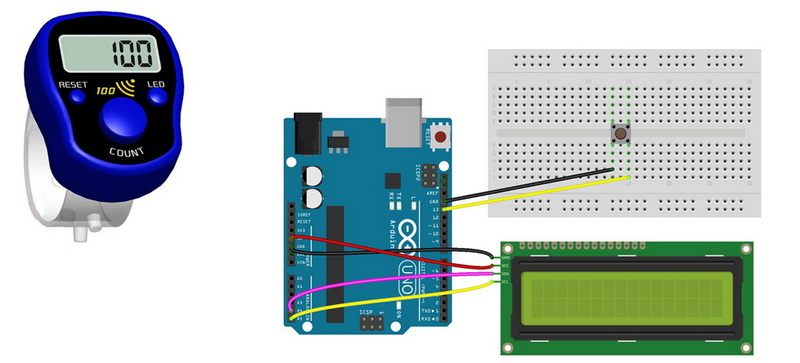

To display numbers on an LCD, you need to connect it to a microcontroller like Arduino. Here's a basic setup:
1. RS Pin: Connect to any digital pin on the Arduino (e.g., Pin 12).
2. E Pin: Connect to another digital pin (e.g., Pin 11).
3. R/W Pin: Grounded for write mode.
4. D4-D7 Pins: Connect to digital pins (e.g., Pins 5, 4, 3, 2).
5. VCC and GND: Connect to 5V and GND on the Arduino.
6. Backlight: Use a potentiometer to adjust brightness.
- Step 1: Ensure all components are ready, including the LCD, Arduino, breadboard, jumper wires, and a potentiometer for backlight control.
- Step 2: Connect the LCD pins to the Arduino as described above.
- Step 3: Use a potentiometer to control the backlight brightness. This involves connecting the potentiometer to the backlight pin and adjusting it to achieve the desired brightness.

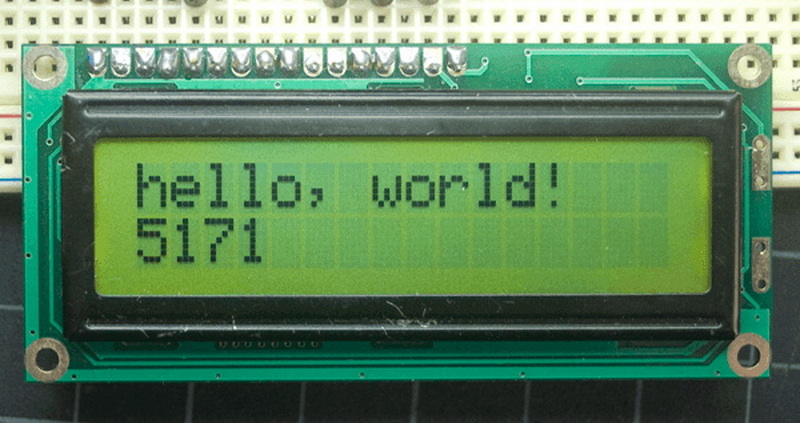

To display numbers, you need to use the LiquidCrystal library in Arduino. Here's a simplified overview of how it works:
1. Initialize the LCD: Set the number of columns and rows.
2. Set the Cursor: Move the cursor to where you want to display the number.
3. Print the Number: Use the `print()` function to display the number.
Imagine you want to display a temperature reading from a sensor. You would read the sensor data, convert it into a string if necessary, and then print it to the LCD. This is particularly useful in projects like weather stations or home automation systems.
Using an I2C interface can simplify the wiring by reducing the number of pins needed. This is useful for projects where space is limited. The I2C interface uses only two wires for communication, making it ideal for projects with multiple components.
Circuits like the EDE702 IC can help manage data transfer between the microcontroller and LCD, making it easier to control the display. These circuits often provide additional features such as contrast adjustment and backlight control.
If your LCD is dim, check the backlight. You might need to increase the brightness or replace the backlight if it's old. Also, ensure that the power supply is stable and sufficient for the LCD.
If you see ghost numbers, it could be due to a dirty or loose connection. Try cleaning the connections or applying gentle pressure. Ghost numbers can also be caused by incorrect initialization or cursor positioning.
If the display shows incorrect characters or numbers, check the data being sent to the LCD. Ensure that the data is correctly formatted and that the LCD is properly initialized.
Troubleshooting LCD issues can be challenging, but most problems are related to connections or power supply. Here are some common issues and their solutions:
- No Display: Check if the backlight is working and if the LCD is properly connected to the microcontroller.
- Incorrect Characters: Ensure that the data being sent is correct and that the LCD is initialized properly.
- Flickering Display: This could be due to an unstable power supply or loose connections.
LCDs are not limited to simple number displays. They can be used in complex projects such as:
- Smart Home Systems: Displaying temperature, humidity, and other environmental data.
- Robotics: Displaying sensor readings and status messages.
- Industrial Control Systems: Displaying process variables and control parameters.
LCDs also allow you to create custom characters, which can be useful for displaying icons or symbols. This involves defining the character pattern using binary data and then printing it to the LCD.
Displaying numbers on an LCD is a straightforward process once you understand the basics of LCD connections and programming. By following the steps outlined in this article and troubleshooting common issues, you can effectively use LCDs in your projects.
- Connect the RS, E, R/W, and D4-D7 pins to digital pins on the Arduino. Ground the R/W pin and connect VCC to 5V.
- Check the backlight brightness. If it's still dim, the backlight might need replacement.
- Use the LiquidCrystal library to initialize the LCD, set the cursor position, and print the number.
- Ghost numbers can be caused by dirty or loose connections. Try cleaning or applying gentle pressure.
- Yes, using an I2C interface can simplify the wiring and is useful for projects with limited space.
