Displaying data on an LCD screen using Arduino is a fundamental skill for many projects, from simple text displays to complex sensor data visualization. This article will guide you through the process of setting up an LCD with Arduino, understanding the basics of LCD pinout, and exploring various examples of displaying data.
To start, you will need:
- Arduino Board: The brain of your project, responsible for processing and sending data to the LCD. Popular choices include the Arduino Uno and Arduino Mega.
- LCD Display: Commonly a 16x2 or 20x4 display, which can show text or simple graphics. These displays are widely available and easy to integrate with Arduino.
- Breadboard and Jumper Wires: For connecting the LCD to the Arduino. These tools help in organizing and testing your circuit.
- Potentiometer: To adjust the contrast of the LCD display. Proper contrast adjustment is crucial for clear visibility.
Understanding the LCD pinout is crucial for connecting it to the Arduino. The typical pins include:
- VCC and GND: Power supply pins. VCC connects to the Arduino's 5V pin, and GND connects to the Arduino's GND pin.
- Vo: Contrast adjustment pin. This pin is connected to a potentiometer to adjust the display's contrast.
- RS (Register Select): Determines whether data or commands are being sent. When RS is high, data is sent; when it's low, commands are sent.
- R/W (Read/Write): Selects read or write mode. Typically set to write mode (low) for most applications.
- E (Enable): Enables writing to the LCD. This pin is used to latch data into the LCD's memory.
- D0-D7: Data pins for sending data to the LCD. In 4-bit mode, only D4-D7 are used.
- Backlight Pins: For turning the backlight on or off. These pins are optional but enhance visibility in low-light conditions.

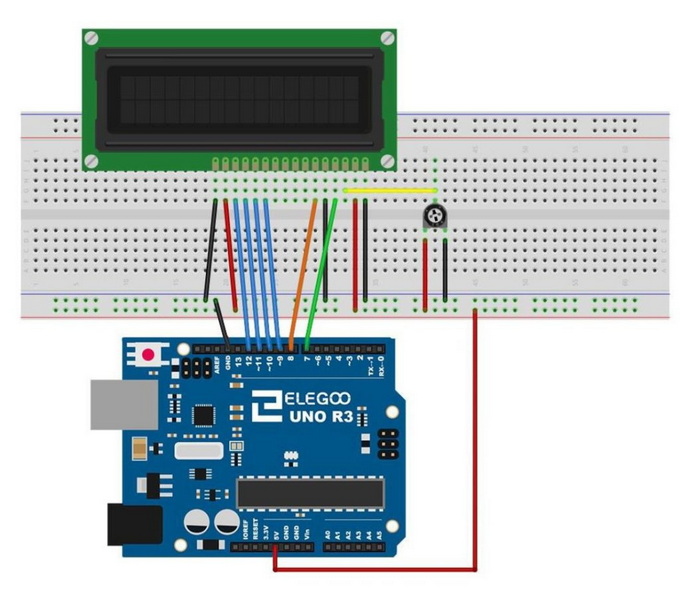

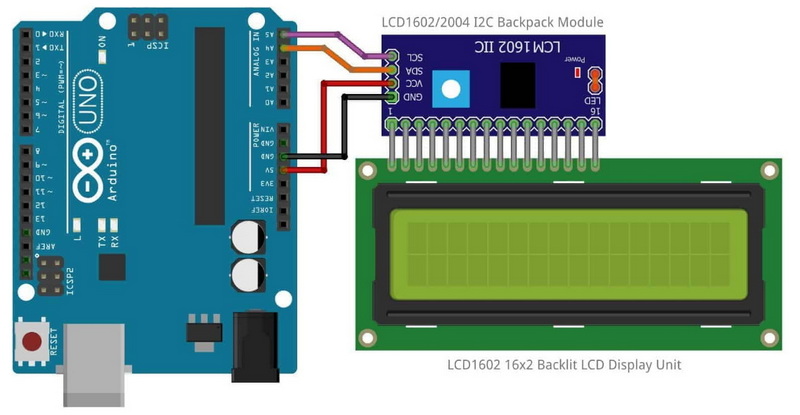

To connect the LCD to Arduino, follow these steps:
1. Connect VCC to 5V on the Arduino and GND to GND.
2. Connect Vo to a potentiometer for contrast adjustment.
3. Connect RS, R/W, and E to digital pins on the Arduino. Common choices are pins 12, 11, and 10 for RS, R/W, and E, respectively.
4. Connect D4-D7 to digital pins on the Arduino for 4-bit mode. Typically, these are connected to pins 5, 4, 3, and 2.
The LiquidCrystal library simplifies interacting with the LCD. Key functions include:
- lcd.begin(): Initializes the LCD with the number of columns and rows.
- lcd.print(): Prints text to the LCD.
- lcd.setCursor(): Sets the cursor position for text output.

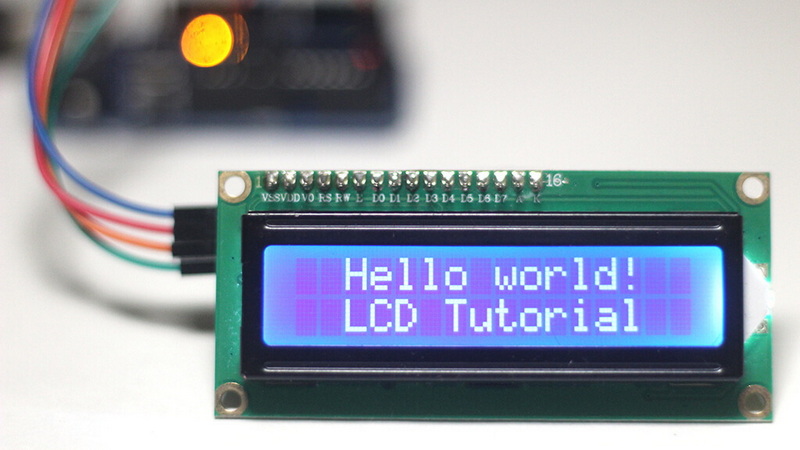

Displaying data can range from simple text messages to more complex sensor readings. For example, you can display temperature readings from a sensor using `lcd.print()`. This function allows you to output numerical values or text messages directly to the LCD.
For text longer than the LCD's width, use the `scrollDisplayLeft()` or `scrollDisplayRight()` functions to create a scrolling effect. This is particularly useful for displaying messages that are too long to fit on a single line.
While LCDs are not ideal for complex graphs, you can display simple bar charts or line graphs by manipulating the cursor position and printing characters to represent data points. For instance, you can use asterisks (\*) to create a simple bar graph based on sensor readings.
- No Display: Check connections and contrast. Ensure that the LCD is properly powered and that the contrast is adjusted correctly.
- Incorrect Data: Verify data source and formatting. Make sure that the data being sent to the LCD is correctly formatted and that the source is reliable.
You can connect multiple LCDs to a single Arduino by using different sets of pins for each LCD. This allows you to create more complex displays with multiple screens.
By integrating a keypad with your LCD project, you can allow users to input data or commands directly. This is useful for interactive projects where user input is necessary.
Displaying data on an LCD with Arduino is a versatile skill that can enhance many projects. By understanding the basics of LCD connections and functions, you can create engaging and informative displays. Whether you're building a simple weather station or a complex automation system, the ability to display data effectively is crucial.
Use a potentiometer connected to the Vo pin to adjust the contrast. Turning the potentiometer changes the voltage applied to the Vo pin, which affects the display's visibility.
4-bit mode uses fewer pins but is sufficient for most text displays, while 8-bit mode offers more data transfer speed but requires more pins. For most Arduino projects, 4-bit mode is preferred due to its simplicity and pin efficiency.
While character LCDs are not designed for complex graphics, you can create simple shapes using ASCII characters. This can be useful for creating basic icons or symbols on your display.
Use the `scrollDisplayLeft()` or `scrollDisplayRight()` functions from the LiquidCrystal library. These functions allow you to move text across the screen, which is useful for displaying messages that are too long to fit on a single line.
Typically, LCDs are used for output, not input. However, some advanced setups might allow reading data, but this is not common with standard character LCDs. For input, you would typically use other components like buttons or sensors.
