Are you looking to add a visual interface to your Arduino project? Connecting an LCD display to your Arduino Uno can open up a world of possibilities for displaying information and creating interactive user interfaces. In this comprehensive guide, we'll walk you through everything you need to know about connecting an LCD display to your Arduino Uno, from the basics to advanced techniques.
LCD (Liquid Crystal Display) screens are versatile and widely used in Arduino projects. They come in various sizes, with the 16x2 configuration being one of the most popular. This means the display has 2 rows that can fit 16 characters each, providing ample space for displaying information.
There are primarily two ways to connect an LCD display to an Arduino Uno:
1. Direct connection
2. I2C interface connection
Let's explore both methods in detail.
- Arduino Uno
- 16x2 LCD Display
- Potentiometer (10k ohm)
- Breadboard
- Jumper wires

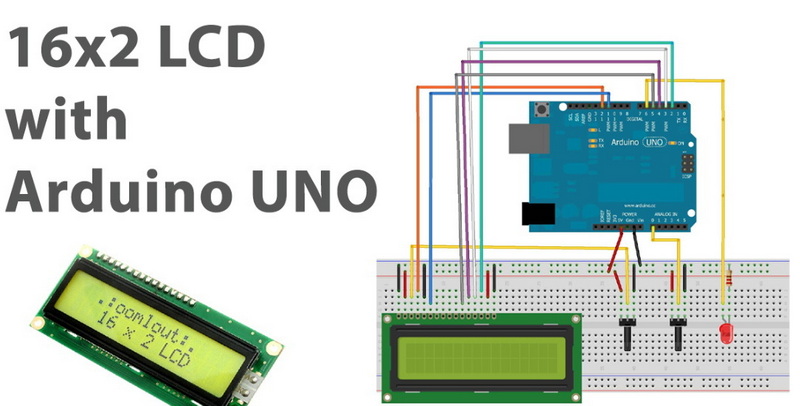

Follow these steps to connect your LCD display directly to the Arduino Uno:
1. Connect the LCD's VSS pin to Arduino's GND
2. Connect the LCD's VDD pin to Arduino's 5V
3. Connect the LCD's VO pin to the middle pin of the potentiometer
4. Connect the LCD's RS pin to Arduino's digital pin 12
5. Connect the LCD's RW pin to Arduino's GND
6. Connect the LCD's E pin to Arduino's digital pin 11
7. Connect the LCD's D4 pin to Arduino's digital pin 5
8. Connect the LCD's D5 pin to Arduino's digital pin 4
9. Connect the LCD's D6 pin to Arduino's digital pin 3
10. Connect the LCD's D7 pin to Arduino's digital pin 2
11. Connect the LCD's A pin to Arduino's 5V
12. Connect the LCD's K pin to Arduino's GND
The potentiometer connected to the VO pin allows you to adjust the contrast of the LCD display. Turn it slowly until you achieve the desired visibility of characters on the screen.
The I2C method simplifies the wiring process by reducing the number of connections needed between the Arduino and the LCD display.
- Arduino Uno
- 16x2 LCD Display with I2C interface
- Jumper wires
The I2C LCD display typically has four pins:
1. GND: Connect to Arduino's GND
2. VCC: Connect to Arduino's 5V
3. SDA: Connect to Arduino's A4 pin
4. SCL: Connect to Arduino's A5 pin
This method significantly reduces the number of wires needed, making your project neater and easier to manage.
Once you've connected your LCD display, it's time to program it. The Arduino IDE provides a built-in LiquidCrystal library for direct connections and the LiquidCrystal_I2C library for I2C connections.
Here are some essential functions you'll use to control your LCD display:
- `lcd.begin(16, 2)`: Initializes the LCD, specifying the dimensions
- `lcd.print("Hello, World!")`: Prints text to the LCD
- `lcd.setCursor(0, 1)`: Sets the cursor position (column, row)
- `lcd.clear()`: Clears the LCD screen
One of the exciting features of LCD displays is the ability to create custom characters. This allows you to display unique symbols or icons that aren't part of the standard character set.
To create a custom character, you'll need to design it on a 5x8 pixel grid and define it in your code using an array of bytes.
A common use for LCD displays in Arduino projects is to show sensor data. Whether you're measuring temperature, humidity, or any other environmental factor, an LCD display can provide real-time feedback.
For more complex projects, you can create interactive menus and user interfaces using your LCD display and a few buttons. This opens up possibilities for user input and navigation through different screens or options in your project.
If you're having trouble with your LCD display, here are some common issues and solutions:
- No text visible: Adjust the contrast using the potentiometer
- Garbled text: Double-check your wiring connections
- Display not responding: Ensure your code is correctly initializing the LCD
Consider these ideas to take your LCD display project to the next level:
- Add a backlight for better visibility in low light conditions
- Implement scrolling text for longer messages
- Create animations using custom characters
Connecting an LCD display to your Arduino Uno opens up a world of possibilities for your projects. Whether you're creating a weather station, a home automation system, or just learning about microcontrollers, an LCD display can provide valuable visual feedback and enhance user interaction.
Remember to experiment with different layouts, custom characters, and user interfaces to make the most of your LCD display. With practice, you'll be able to create sophisticated and informative displays for all your Arduino projects.
1. 4-bit mode:
- Uses fewer pins on the Arduino
- Slightly slower communication
- Suitable for most projects
2. 8-bit mode:
- Uses more pins on the Arduino
- Faster communication
- Rarely necessary for typical projects
Yes, you can use larger LCD displays with Arduino Uno, such as 20x4 or even graphic LCDs. However, keep in mind:
- Larger displays may require more power
- You might need to adjust your code for the different dimensions
- Some larger displays may need additional libraries
To conserve power with your LCD display:
- Turn off the backlight when not needed
- Use sleep mode for the Arduino when possible
- Consider using a lower power microcontroller for battery-operated projects
While character LCDs are primarily designed for text, you can:
- Create simple graphics using custom characters
- Use multiple custom characters to form larger images
- For true image display, consider using a graphic LCD instead
To display special characters or different languages:
- Use the LCD's built-in character set for common symbols
- Create custom characters for unique symbols or letters
- For extensive language support, consider using a graphic LCD with full font support
