How To Attach Lcd Display To Breadboard?

Views: 222     Author: Tina     Publish Time: 2025-02-18      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
How To Attach Lcd Display To Breadboard?

Content Menu

Introduction

Understanding LCD Displays

>> LCD Display Types

Required Components

Step-by-Step Guide to Attaching LCD Display to Breadboard

>> Step 1: Prepare the LCD Display

>> Step 2: Set Up the Breadboard

>> Step 3: Connect Power and Ground

>> Step 4: Connect Control Pins

>> Step 5: Connect Data Pins

>> Step 6: Set Up the Contrast Control

>> Step 7: Connect the Backlight

>> Step 8: Double-Check Your Connections

Programming the LCD Display

Troubleshooting Common Issues

Advanced LCD Techniques

>> Custom Characters

>> Scrolling Text

>> Using I2C LCD Modules

Real-World Applications

Expanding Your LCD Projects

Conclusion

Frequently Asked Questions (FAQ)

>> 1. What is the difference between 4-bit and 8-bit mode for LCD displays?

>> 2. Can I use a different voltage than 5V for my LCD display?

>> 3. How do I adjust the contrast of my LCD display?

>> 4. What's the purpose of the R/W (Read/Write) pin on the LCD?

>> 5. How can I create animations on my LCD display?

Introduction

Connecting an LCD display to a breadboard is a fundamental skill for electronics enthusiasts and makers. This guide will walk you through the process of attaching an LCD display to a breadboard, providing detailed instructions, tips, and troubleshooting advice. Whether you're working on an Arduino project or experimenting with other microcontrollers, this article will help you master the art of LCD integration.

how to attach lcd display to breadboard_3

Understanding LCD Displays

Before we dive into the attachment process, let's briefly discuss LCD displays and their importance in electronics projects.

LCD (Liquid Crystal Display) screens are versatile output devices that can display text, numbers, and simple graphics. They are commonly used in various applications, from home appliances to industrial equipment. In the world of DIY electronics and prototyping, LCD displays are particularly popular due to their low cost, ease of use, and ability to provide visual feedback.

LCD Display Types

The most common type of LCD display used in hobbyist projects is the character LCD, which typically comes in 16x2 or 20x4 configurations. These numbers represent the number of characters per line and the number of lines, respectively. However, there are other types of LCD displays available:

1. Graphical LCDs: These displays can show more complex graphics and images. They come in various resolutions and are often used in more advanced projects.

2. OLED displays: While not technically LCDs, OLED (Organic Light-Emitting Diode) displays are becoming increasingly popular due to their high contrast and low power consumption.

3. TFT LCD displays: These color displays offer higher resolution and can display more complex graphics and even video.

For this guide, we'll focus on the standard character LCD, as it's the most common and easiest to work with for beginners.

Required Components

To attach an LCD display to a breadboard, you'll need the following components:

1. LCD display (16x2 or 20x4)

2. Breadboard

3. Jumper wires

4. Potentiometer (10k ohm)

5. Resistor (220 ohm)

6. Arduino board (or other microcontroller)

7. Male header pins (if not pre-soldered to the LCD)

It's important to note that the quality of these components can significantly impact the performance and reliability of your project. Always choose reputable suppliers and double-check the specifications of each component before purchasing.

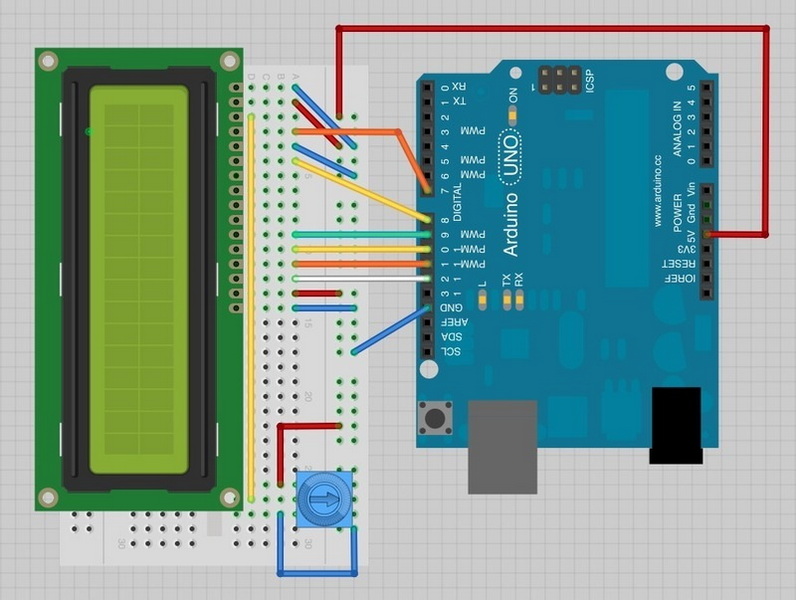

how to attach lcd display to breadboard_1

Step-by-Step Guide to Attaching LCD Display to Breadboard

Step 1: Prepare the LCD Display

If your LCD display doesn't have header pins pre-soldered, you'll need to attach them first:

1. Break off a strip of 16 male header pins (or 18 for RGB backlight LCDs).

2. Insert the header pins into the holes on the LCD module.

3. Solder the pins to the LCD, ensuring a secure connection.

When soldering, make sure to use a well-ventilated area and appropriate safety equipment, such as safety glasses and a fume extractor if available. A good solder joint should be shiny and cone-shaped, with no excess solder bridging between pins.

Step 2: Set Up the Breadboard

1. Place your breadboard on a flat, stable surface.

2. If using an Arduino, connect it to the breadboard using jumper wires for power and ground.

When setting up your breadboard, consider the overall layout of your project. Leave enough space for additional components you might want to add later, and try to keep your wiring neat and organized. This will make troubleshooting and modifications much easier in the future.

Step 3: Connect Power and Ground

1. Connect the VSS pin of the LCD to the ground rail on the breadboard.

2. Connect the VDD pin of the LCD to the 5V power rail on the breadboard.

It's crucial to double-check these connections, as reversing power and ground can damage your LCD or other components. Some makers use different colored wires (e.g., red for power, black for ground) to make it easier to identify connections at a glance.

Step 4: Connect Control Pins

1. Connect the RS (Register Select) pin to a digital pin on your Arduino (e.g., pin 12).

2. Connect the E (Enable) pin to another digital pin (e.g., pin 11).

3. Connect the R/W (Read/Write) pin to ground, as we'll only be writing to the LCD.

Understanding these control pins is important:

- RS pin determines whether you're sending commands or data to the LCD.

- E pin enables writing to the LCD registers.

- R/W pin, when grounded, sets the LCD to write mode.

Step 5: Connect Data Pins

For 4-bit mode operation (which is more common and uses fewer pins):

1. Connect D4 to a digital pin (e.g., pin 5)

2. Connect D5 to a digital pin (e.g., pin 4)

3. Connect D6 to a digital pin (e.g., pin 3)

4. Connect D7 to a digital pin (e.g., pin 2)

4-bit mode is preferred in most projects as it leaves more pins available on your microcontroller for other components. However, if you need faster communication with the LCD, you can use 8-bit mode by connecting all 8 data pins (D0-D7).

Step 6: Set Up the Contrast Control

1. Connect one end of the 10k potentiometer to 5V.

2. Connect the other end to ground.

3. Connect the middle pin (wiper) of the potentiometer to the V0 (contrast) pin on the LCD.

The potentiometer allows you to adjust the contrast of the LCD display. This is particularly useful as the optimal contrast can vary depending on viewing angle and ambient lighting conditions.

Step 7: Connect the Backlight

If your LCD has a backlight:

1. Connect the anode (A) of the backlight to 5V through a 220-ohm resistor.

2. Connect the cathode (K) directly to ground.

The resistor is crucial here as it limits the current flowing through the backlight LED, preventing it from burning out. Some LCDs may require a different resistor value, so always check the datasheet for your specific model.

Step 8: Double-Check Your Connections

Before powering on your circuit, carefully review all connections to ensure they match the wiring diagram and your intended setup. This step is crucial to prevent any potential damage to your components.

Programming the LCD Display

Once your LCD is properly connected to the breadboard and Arduino, you'll need to program it to display information. Most Arduino projects use the LiquidCrystal library, which provides an easy-to-use interface for controlling the LCD.

When programming your LCD, consider the following tips:

1. Initialize the LCD in your setup() function, specifying the number of columns and rows.

2. Use lcd.clear() to clear the screen before writing new content.

3. Remember that the cursor position starts at (0,0) for the top-left character.

4. Use lcd.setCursor(column, row) to position the cursor before writing.

5. For scrolling text or animations, use appropriate delays to make the content readable.

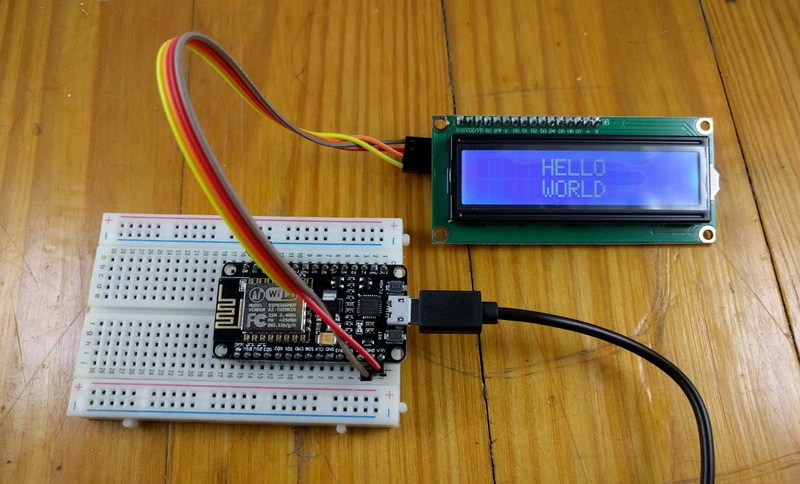

how to attach lcd display to breadboard_2

Troubleshooting Common Issues

When working with LCD displays, you might encounter some common issues. Here are a few troubleshooting tips:

1. No display or faint display: Adjust the contrast using the potentiometer. If this doesn't work, verify your power connections and check if the LCD is receiving the correct voltage.

2. Garbled text: Double-check your wiring and ensure all connections are secure. Make sure you're using the correct pins in your code and that the LCD is properly initialized.

3. Backlight not working: Verify the backlight connections and resistor value. Some LCDs have a separate pin for backlight control, which may need to be connected to a PWM pin for brightness adjustment.

4. Display not updating: Check your code for proper initialization and update commands. Ensure that your main loop is not running too fast, which can cause display issues.

5. Only half of the display working: This could indicate a problem with the 4-bit/8-bit mode selection. Make sure your code matches your wiring (4-bit or 8-bit mode).

Remember, patience is key when troubleshooting. Systematically check each connection and line of code to identify the issue.

Advanced LCD Techniques

Once you've mastered the basics of attaching and programming an LCD display, you can explore more advanced techniques:

Custom Characters

LCDs allow you to create and display custom characters. This is useful for creating simple graphics or special symbols. You can define up to eight custom characters in the LCD's memory.

Scrolling Text

For longer messages that don't fit on the screen, you can implement scrolling text. This involves shifting the text one character at a time, creating a scrolling effect.

Using I2C LCD Modules

For projects where you want to save pins on your Arduino, consider using an I2C LCD module. These modules use only two pins (SDA and SCL) for communication, freeing up other pins for additional components.

I2C modules often come with a built-in contrast control, further simplifying your setup. However, they may require a different library, such as LiquidCrystal_I2C.

Real-World Applications

LCD displays find applications in numerous projects. Here are a few examples to inspire your next creation:

1. Weather station: Display temperature, humidity, and pressure readings from sensors.

2. Digital clock: Show the current time and date, potentially synced with an RTC module.

3. Game console: Create simple games with LCD as the display, using buttons for controls.

4. System monitor: Display CPU usage, memory, or other system stats when connected to a computer.

5. Smart home control panel: Show and control various home automation functions, such as temperature settings or light controls.

6. Digital multimeter: Display voltage, current, or resistance readings from measurement circuits.

7. Fitness tracker: Show step counts, heart rate, and other fitness metrics when combined with appropriate sensors.

8. Interactive art installation: Use the LCD as part of an interactive art piece, displaying changing text or patterns based on viewer input.

9. Robot control panel: Display sensor readings and status information for a robotics project.

10. Morse code translator: Input text and display the corresponding Morse code, or vice versa.

The possibilities are virtually endless, limited only by your imagination and the capabilities of your microcontroller and additional components.

Expanding Your LCD Projects

As you become more comfortable working with LCD displays, consider these ideas to take your projects to the next level:

1. Multiple displays: Use more than one LCD in your project for displaying different types of information simultaneously.

2. Touchscreen integration: Combine your LCD with a touch overlay to create interactive displays.

3. Data logging: Connect your LCD project to external storage like an SD card to log and display data over time.

4. Wireless control: Incorporate WiFi or Bluetooth modules to allow remote control and monitoring of your LCD display.

5. Graphical displays: Experiment with graphical LCDs to display more complex information and images.

6. Environmental sensors: Integrate sensors for temperature, humidity, or air quality to create informative display panels.

7. Audio feedback: Combine your LCD project with speakers or buzzers for audio-visual feedback.

Remember, the key to successful projects is incremental learning. Start with simple designs and gradually incorporate more advanced features as you build your skills and confidence.

Conclusion

Attaching an LCD display to a breadboard is a fundamental skill that opens up a world of possibilities for your electronics projects. By following this guide, you've learned how to connect the hardware, program the display, and troubleshoot common issues. As you become more comfortable with LCD integration, you'll be able to create more complex and interactive projects.

Remember to always double-check your connections, use appropriate resistors for protection, and refer to the datasheet of your specific LCD model for any unique requirements. With practice, you'll find that working with LCD displays becomes second nature, allowing you to focus on the creative aspects of your projects.

The world of LCD displays and microcontrollers is constantly evolving, with new technologies and techniques emerging regularly. Stay curious, keep experimenting, and don't be afraid to push the boundaries of what's possible with your LCD projects. Whether you're building a simple temperature display or a complex interactive installation, the skills you've learned here will serve as a strong foundation for your future endeavors in electronics and programming.

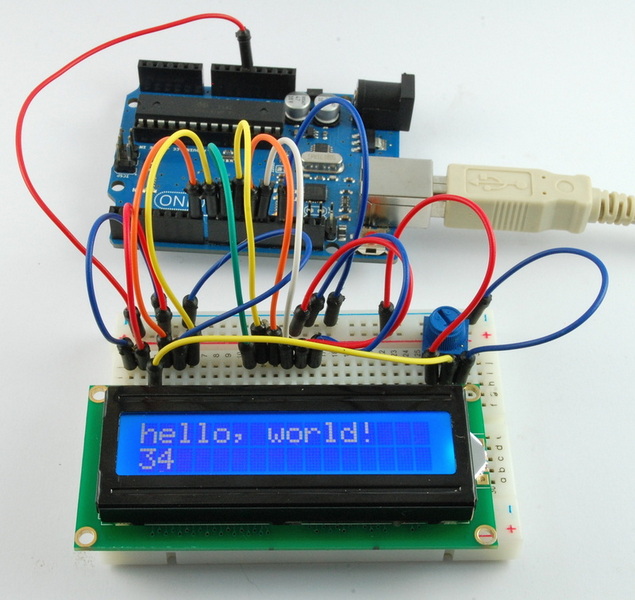

how to attach lcd display to breadboard_4

Frequently Asked Questions (FAQ)

1. What is the difference between 4-bit and 8-bit mode for LCD displays?

4-bit mode uses fewer pins (4 data pins) to communicate with the microcontroller, while 8-bit mode uses all 8 data pins. 4-bit mode is more common in hobbyist projects as it leaves more pins available on the microcontroller for other components. The trade-off is slightly slower communication, but this is usually negligible for most applications.

2. Can I use a different voltage than 5V for my LCD display?

Most common character LCDs are designed to operate at 5V. However, some displays can work with 3.3V logic. Always check the datasheet for your specific LCD model to ensure compatibility. If you need to use a different voltage, you may need to use level shifters to safely interface with your microcontroller.

3. How do I adjust the contrast of my LCD display?

The contrast of an LCD display is typically controlled by the voltage applied to the V0 (contrast) pin. This is usually done using a potentiometer connected between 5V and ground, with the wiper connected to the V0 pin. Adjusting the potentiometer will change the contrast. If your display appears blank, try adjusting the contrast as the text may be too faint to see.

4. What's the purpose of the R/W (Read/Write) pin on the LCD?

The R/W pin determines whether you're writing data to the LCD (low) or reading data from it (high). In most Arduino projects, we only write to the LCD, so this pin is typically connected to ground. If you need to read data from the LCD (e.g., to check the busy flag), you would need to control this pin with your microcontroller.

5. How can I create animations on my LCD display?

Creating animations on an LCD display involves rapidly updating custom characters or predefined characters in sequence. You can define up to 8 custom characters in the LCD's memory and update them in your code to create simple animations. For more complex animations, you might need to use a graphical LCD instead of a character LCD.
