In the world of electronics, displays play a critical role in conveying information. Among various display technologies, monochrome LCDs (Liquid Crystal Displays) have carved out a niche for themselves due to their simplicity, efficiency, and effectiveness in specific applications. This article explores the concept of substituting monochrome LCD displays, examining their advantages, potential substitutes, and practical applications. We will also delve into the technical aspects of these displays, their history, and future trends in display technology.

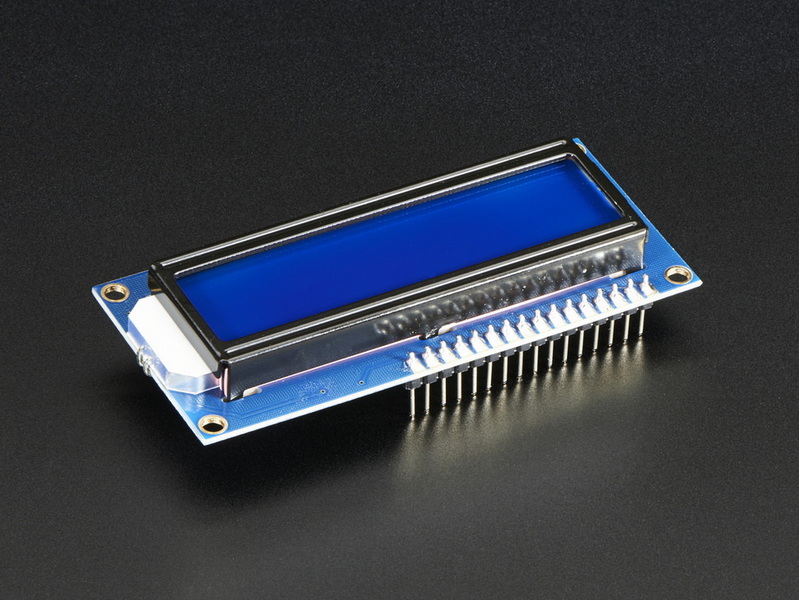

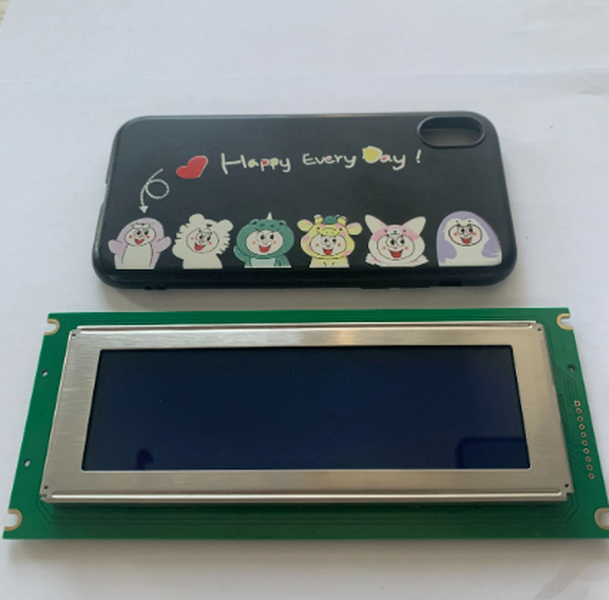

Monochrome LCDs are displays that utilize a single color (commonly black or green) to represent images and text. These displays consist of liquid crystal molecules sandwiched between layers of glass, which manipulate light to create visible characters or graphics.
1. Lower Power Consumption: Monochrome displays consume significantly less power than their color counterparts, making them ideal for battery-operated devices.
2. High Visibility: Many monochrome LCDs are designed to be transflective, allowing for better visibility in bright sunlight.
3. Cost-Effectiveness: Generally, monochrome displays are less expensive to produce and integrate into devices compared to color displays.
4. Simplicity: The straightforward design of monochrome LCDs makes them easier to implement in various devices without the complexity associated with color displays.
Monochrome LCDs are characterized by several key technical specifications:
- Resolution: Typically measured in pixels per inch (PPI), resolution affects the clarity of displayed text and images. Common resolutions for monochrome LCDs include 128x64 and 240x128 pixels.
- Viewing Angle: This refers to the angle at which the display can be viewed without significant loss of quality. Monochrome LCDs generally have wide viewing angles due to their construction.
- Response Time: The speed at which a display can change from one image to another. Monochrome LCDs typically have slower response times compared to other display technologies like TFT.
Monochrome LCDs are widely used in various applications:
- Industrial Equipment: Used for displaying operational data and diagnostics in machines and control panels.
- Consumer Electronics: Found in devices like calculators, digital watches, and handheld gaming consoles.
- Medical Devices: Utilized in portable medical equipment for clear display of vital signs and patient data.
- Automotive Displays: Often used in dashboards for displaying speed, fuel levels, and other critical information.
In industrial settings, monochrome LCDs are prevalent due to their reliability and low power consumption. For instance, a factory control panel may use a monochrome display to show machine status and alerts. The low power requirement ensures that these displays can run continuously without significant energy costs.
Devices like digital watches often utilize monochrome LCDs because they provide sufficient clarity while conserving battery life. The simplicity of these displays allows manufacturers to create sleek designs that appeal to consumers.
In medical devices such as heart rate monitors or glucose meters, monochrome LCDs provide essential information at a glance. The high visibility ensures that healthcare professionals can quickly read vital statistics under various lighting conditions.
When considering a substitution for monochrome LCDs, several factors come into play:
There are several alternative technologies available that can serve as substitutes for monochrome LCDs:
OLED displays offer better contrast and color range but may come at a higher cost. They are self-emissive, meaning each pixel generates its own light, resulting in deeper blacks and more vibrant colors. However, they may have shorter lifespans compared to traditional LCDs.
E-paper displays are excellent for readability in sunlight and have low power consumption since they only use power when changing the image displayed. They are commonly used in e-readers like the Amazon Kindle but may have slower refresh rates than monochrome LCDs.
TFT displays provide high-resolution images with full-color capabilities but typically require more power than monochrome options. They are suitable for applications where color representation is crucial but may not be ideal for low-power devices.
When substituting monochrome LCDs with other technologies, consider the following:
- Power Requirements: Ensure that the alternative technology meets the power constraints of your application. For battery-operated devices, low power consumption is critical.
- Cost Implications: Evaluate whether the benefits justify any increase in cost. While alternatives might offer enhanced features, they could also lead to higher manufacturing expenses.
- Compatibility: Check if the new display can integrate seamlessly with existing hardware and software systems. Some alternatives may require different drivers or interfaces.
- Environmental Factors: Consider how environmental conditions such as temperature and humidity might affect different types of displays.
An industrial device originally using a monochrome LCD display may benefit from transitioning to an OLED display. The OLED's superior visibility under various lighting conditions can enhance user experience without significantly increasing power consumption. In addition, OLED technology allows for thinner designs which can save space in compact machinery.
For portable medical devices that rely on battery power, substituting a monochrome LCD with an e-paper display can extend battery life while providing clear information to healthcare professionals. E-paper's ability to retain an image without continuous power makes it particularly advantageous in emergency situations where battery conservation is crucial.
A digital watch manufacturer looking to modernize its product line might consider replacing traditional monochrome LCD screens with TFT displays that offer full-color capabilities. This change could attract younger consumers who prefer vibrant interfaces but would require careful management of increased power consumption.
As technology continues to evolve, so too do the options available for display technologies:
Flexible OLED displays are emerging as a revolutionary technology that allows screens to bend and conform to various shapes. This opens up new possibilities for product design across many industries.
MicroLED is another promising technology that combines the benefits of OLED with improved brightness and longevity. MicroLED displays could potentially replace both monochrome and color LCDs in many applications due to their superior performance characteristics.
As environmental awareness grows, manufacturers are increasingly focusing on sustainable practices in display production. This includes using recyclable materials and reducing energy consumption during manufacturing processes.
Substituting monochrome LCD displays can provide various benefits depending on the application and requirements. While alternatives like OLED and e-paper displays offer enhanced features such as better visibility and lower power consumption, careful consideration must be given to factors like cost implications and compatibility with existing systems. Understanding the specific needs of each application will guide manufacturers in making informed decisions about display technologies moving forward.
Monochrome LCD displays offer lower power consumption, high visibility in bright conditions, cost-effectiveness compared to color displays, and simplicity in design.
Yes, OLED displays can be used as substitutes; however, consider factors like power requirements and cost implications before making a switch.
E-paper displays have slower refresh rates compared to monochrome LCDs, which may not be suitable for applications requiring real-time updates or fast-changing information.
Monochrome LCDs are commonly found in industrial equipment, consumer electronics like calculators and digital watches, medical devices, and automotive dashboards.
Assess your application's specific needs regarding power consumption, cost constraints, visibility requirements, compatibility with existing systems before selecting a substitute.
