Introduction

Liquid Crystal Displays (LCDs) are ubiquitous in modern electronics, but their functionality in extreme environments—such as a vacuum—raises technical questions. This article examines the feasibility, challenges, and alternatives for LCD operation in vacuums, supported by scientific principles and real-world testing.

How LCD Technology Operates Under Standard Conditions

LCDs rely on liquid crystals sandwiched between polarized glass layers to modulate light transmission[4]. Key components include:

- Polarizers: Filter light direction.

- Liquid Crystal Layer: Twists or untwists under voltage to block/pass light.

- Backlight: Illuminates the display (in most designs).

A vacuum is not inherently part of LCD operation, though manufacturing processes often involve vacuum environments to eliminate air bubbles during assembly[4].

Challenges of Operating LCDs in a Vacuum

1. Pressure Differential Stress

LCD panels are not designed to withstand external pressure differences. In a vacuum (<10 Torr), the lack of atmospheric pressure can cause:

- Delamination: Adhesive layers may weaken.

- Glass Warping: Uneven stress on substrates.

Case Study: A Reddit user tested a calculator LCD at 25 mTorr and observed no immediate damage[2]. However, prolonged exposure risks structural failure[6].

2. Temperature Extremes

LCDs struggle in low temperatures due to liquid crystal viscosity increasing, slowing response times[5]. While vacuums lack convection cooling, radiative heat loss could still chill components.

3. Outgassing

Trapped air or moisture within LCD materials may vaporize in a vacuum, causing:

- Internal bubbles disrupting display uniformity.

- Chemical degradation of liquid crystals.

Example: A vacuum autoclave with an LCD display uses sealed designs to minimize outgassing[20].

Vacuum Fluorescent Displays (VFDs): A Robust Alternative

VFDs excel in vacuums due to their inherent vacuum-sealed construction[1][3]:

Feature	VFD	LCD
Operating Temp	-40°C to +85°C3	0°C to +50°C5
Brightness	High (self-emitting)	Medium (backlit)
Lifespan	~100,000 hours7	~50,000 hours
Vacuum Suitability	Built-in vacuum	Requires modification

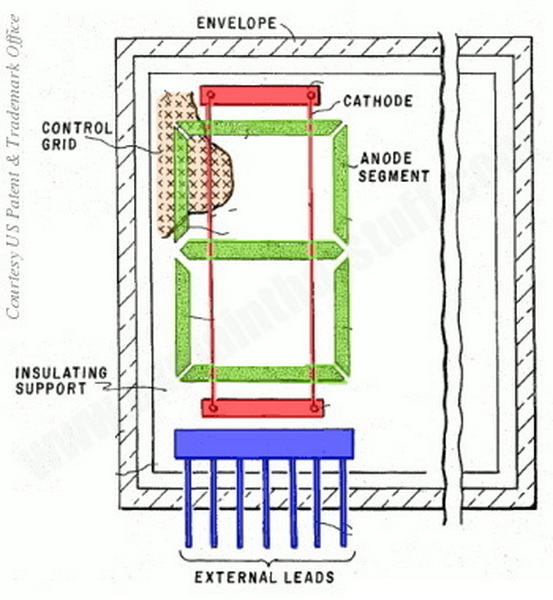

VFDs use phosphor-coated anodes excited by electrons in a vacuum, making them ideal for harsh environments like aerospace or industrial systems[1][3].

Real-World Applications and Testing

Case 1: Glovebox-Compatible Stir Plates

A Chemglass stir plate's LCD survived repeated 2,000 mTorr vacuum cycles, though temporary oxygen level spikes occurred due to heating[2].

Case 2: Spacecraft Displays

NASA employs modified LCDs with reinforced sealing and temperature controls to mitigate vacuum effects.

Suggested Media:

- Video: How LCDs Behave in Vacuum Chambers (simulated test).

- Image: Cross-section of a vacuum-sealed LCD module.

Modifying LCDs for Vacuum Use

To enhance vacuum resilience:

1. Encapsulation: Seal displays with epoxy resins to prevent outgassing[6].

2. Pressure Equalization: Add micro-venting to balance internal/external pressure.

3. Thermal Management: Integrate heaters for low-temperature operation[5].

Conclusion

Standard LCDs face significant hurdles in vacuums due to pressure differentials and temperature limits. While short-term exposure (e.g., laboratory gloveboxes) may not cause immediate failure[2][6], prolonged use requires design modifications. VFDs remain superior for critical vacuum applications, offering inherent durability and brightness. Future advancements in flexible OLEDs or solid-state displays may bridge this gap.

Frequently Asked Questions

1. Can LCDs function in a high vacuum?

Some LCDs survive brief exposure to 25 mTorr[2], but prolonged use risks delamination or outgassing[6].

2. Why are VFDs preferred over LCDs in vacuums?

VFDs are vacuum-sealed by design and tolerate extreme temperatures[1][3].

3. Does low temperature affect LCDs in a vacuum?

Yes—cold increases liquid crystal viscosity, slowing response times[5].

4. Can LCDs leak gases in a vacuum?

Trapped moisture/air may outgas, causing bubbles or chemical degradation[6][20].

5. Are there hybrid displays for vacuum environments?

Research continues, but no mainstream hybrid exists. VFDs and modified LCDs dominate niche applications.
