In the world of electronics and embedded systems, the need for efficient communication between microcontrollers and peripheral devices is paramount. One of the most effective ways to achieve this is through the use of an I2C interface module for LCD displays. This article will delve into the advantages, functionalities, and practical applications of using an I2C interface with LCDs, along with illustrative examples.
The Inter-Integrated Circuit (I2C) protocol is a widely-used communication method that allows multiple devices to communicate with a single microcontroller using only two wires: the Serial Data Line (SDA) and the Serial Clock Line (SCL). This simplicity makes I2C an ideal choice for connecting LCD displays in various electronic projects.
- Two-Wire Communication: Reduces wiring complexity compared to traditional parallel communication methods.
- Multiple Device Support: Allows multiple devices to share the same bus, each identified by a unique address.
- Speed: Supports standard speeds of up to 100 kbit/s and fast modes up to 400 kbit/s.
Using an I2C interface module for LCD displays offers several compelling advantages:
Traditional LCD connections require multiple GPIO pins on a microcontroller, often more than ten. In contrast, an I2C interface only requires two pins, freeing up valuable resources for other functions. This is particularly beneficial in projects with limited GPIO availability.
With fewer connections required, wiring becomes significantly easier. This simplicity reduces the chances of errors during setup and allows for cleaner circuit designs.
Integrating an I2C LCD module into your project is straightforward. Most libraries available for popular microcontrollers like Arduino provide built-in support for I2C communication, making it easy to send commands to the display without deep knowledge of the underlying protocol.
The ability to connect multiple I2C devices on a single bus allows for more complex systems without overwhelming the microcontroller's pin count. This flexibility is essential in applications requiring multiple sensors or displays.
Setting up an I2C interface module for LCD displays involves several steps. Below is a general guide using Arduino as an example.
- Arduino board (e.g., Arduino Uno)
- I2C LCD display (e.g., 16x2 or 20x4)
- Jumper wires
- Breadboard (optional)

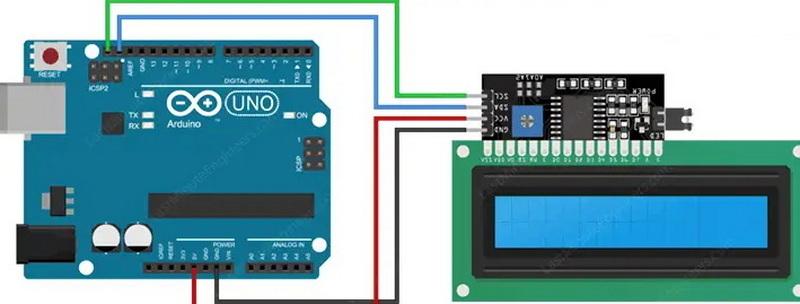

1. Wiring Connections: Connect the SDA pin of the I2C module to the SDA pin on the Arduino and the SCL pin to the SCL pin on the Arduino. Also, connect VCC to 5V and GND to GND.
2. Install Required Libraries: In your Arduino IDE, install the `LiquidCrystal_I2C` library if you haven't already. This library simplifies communication with I2C LCDs.
3. Finding the I2C Address: If you're unsure about your LCD's address, you can use an I2C scanner sketch available online to find it before running your main code.
The versatility of I2C interface modules for LCD displays makes them suitable for various applications:
- Sensor Readouts: Displaying real-time data from sensors in projects like weather stations or home automation systems.
- User Interfaces: Creating simple user interfaces for embedded systems where users can input commands or view statuses.
- Educational Projects: Ideal for beginners learning about electronics due to their ease of use and minimal wiring requirements.
While using an I2C interface module for LCD displays, you may encounter some common issues:
- No Display Output: Ensure that your wiring is correct and that you have set the right I2C address in your code.
- Garbage Characters on Screen: This often indicates a mismatch in communication settings or incorrect wiring. Double-check connections and library settings.
- Backlight Issues: If the backlight does not turn on, check if it is properly powered and if any potentiometer settings are adjusted correctly.
Using an I2C interface module for LCD displays significantly enhances project efficiency by simplifying connections and reducing pin usage. The ease of integration with popular microcontrollers like Arduino makes it a preferred choice among hobbyists and professionals alike. Whether you're displaying sensor data or creating user interfaces, adopting this technology can streamline your development process.
An I2C interface module is a communication protocol that allows multiple devices to connect using only two wires (SDA and SCL), facilitating easy data exchange between microcontrollers and peripherals like LCDs.
You can find your device's I2C address by using an I2C scanner sketch available online, which will scan all connected devices on the bus and display their addresses in the Serial Monitor.
Yes, you can connect multiple devices on the same I2C bus as long as each device has a unique address, allowing them to communicate without interference.
Common libraries include `LiquidCrystal_I2C` for Arduino, which simplifies interactions with I2C-based LCD displays by providing easy-to-use functions for displaying text and controlling backlight settings.
Using an I2C module reduces wiring complexity, saves GPIO pins on your microcontroller, and allows easy integration with multiple devices, making it ideal for complex projects where space and resources are limited.
