Views: 222 Author: Tina Publish Time: 2025-06-22 Origin: Site
Content Menu
● What Are IPS LCD and Optic AMOLED?
>> IPS LCD
>> Optic AMOLED
● Power Consumption and Battery Life
>> IPS LCD
>> Optic AMOLED
● Flexibility and Design Innovation
● Sunlight Legibility and Outdoor Use
● Price and Market Availability
● Health and Eye Comfort Considerations
● Environmental Impact and Sustainability
● Use Cases: Who Should Choose Which?
>> 1. What is the main difference between IPS LCD and Optic AMOLED?
>> 2. Which display is better for battery life?
>> 3. Are AMOLED screens more prone to burn-in?
>> 4. Which display is better for outdoor use?
>> 5. Why are AMOLED displays more expensive?
Choosing the right display technology is a major decision for anyone purchasing a smartphone, tablet, laptop, or television. The two most prominent display types in today's market are IPS LCD (In-Plane Switching Liquid Crystal Display) and Optic AMOLED (Active Matrix Organic Light-Emitting Diode, sometimes called Optical AMOLED). Each technology brings unique strengths and weaknesses, influencing everything from color reproduction and battery life to device design and price. This comprehensive guide explores the core differences, advantages, and disadvantages of IPS LCD and Optic AMOLED, helping you make an informed choice for your next device.

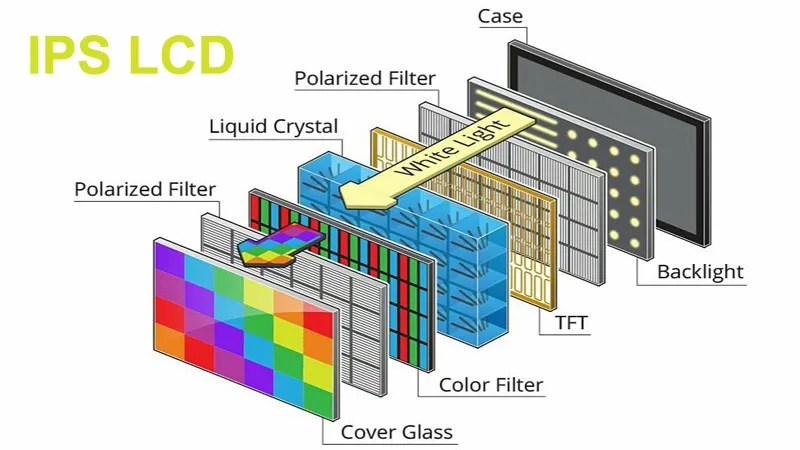

IPS LCD stands for In-Plane Switching Liquid Crystal Display. This technology is a type of LCD panel that uses a backlight to illuminate pixels. The defining feature of IPS is the alignment of liquid crystals in parallel to the display, which enhances color accuracy and widens viewing angles compared to older LCD technologies. IPS LCDs are widely used in everything from budget smartphones to high-end professional monitors.
Optic AMOLED, often simply referred to as AMOLED, stands for Active Matrix Organic Light-Emitting Diode. Unlike LCDs, AMOLED displays do not require a backlight. Instead, each pixel is an organic LED that emits its own light when electrically stimulated. This self-emissive property enables AMOLED panels to produce true blacks, achieve higher contrast ratios, and allow for thinner, more flexible, and even foldable screens.
- Backlight: An always-on backlight sits behind the display, shining through layers of liquid crystals and color filters.
- Liquid Crystals: These act as shutters, twisting to control the amount of light that passes through each pixel.
- Color Filters: The backlight passes through red, green, and blue filters to create the final colored image.
- Viewing Angles: The in-plane switching mechanism aligns the crystals horizontally, improving color consistency and clarity at wide angles.

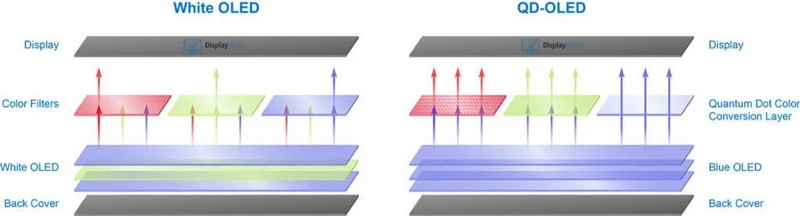

- Self-Emissive Pixels: Each pixel is an organic LED that emits light directly, eliminating the need for a backlight.
- Active Matrix: A thin film transistor (TFT) layer controls the on/off state of each pixel, enabling rapid refresh rates and precise control.
- True Blacks: Pixels can be turned off completely, producing perfect black and infinite contrast.
- Flexibility: The organic nature of the diodes allows AMOLED panels to be ultra-thin and bendable, paving the way for innovative device designs.
- IPS LCD: The backlight is always on, regardless of the content displayed. This means that displaying dark or black content does not save power, and battery drain is relatively constant.
- Optic AMOLED: Only the pixels that need to be lit are powered. Displaying black or dark content can dramatically reduce power consumption, with tests showing AMOLED panels can use 20–40% less power in dark mode. This makes AMOLED a superior choice for battery-conscious users, especially those who prefer dark themes.
- Longer Lifespan: IPS LCDs are less susceptible to image retention or burn-in, making them ideal for static content or applications where the same image is displayed for long periods.
- Durability: The inorganic materials used in LCDs are not prone to degradation, ensuring consistent performance over many years.
- Burn-In Risk: Prolonged display of static images can cause permanent ghosting or burn-in, where faint remnants of previous images remain visible. Modern AMOLED panels include software mitigations, but the risk is not entirely eliminated.
- Organic Degradation: The organic compounds in AMOLED pixels can degrade over time, leading to reduced brightness and color accuracy after several years of heavy use.
- IPS LCD: The need for a backlight and rigid structure limits IPS LCDs to traditional, flat designs. They are generally thicker and less adaptable to innovative form factors.
- Optic AMOLED: The ultra-thin, flexible nature of AMOLED panels enables a wave of design innovation. Curved edges, foldable screens, and even transparent displays are possible, offering manufacturers and consumers new possibilities in device aesthetics and functionality.
- IPS LCD: Typically offers better performance in direct sunlight due to higher maximum brightness and less reflectivity. This makes IPS LCDs a popular choice for devices used frequently outdoors.
- Optic AMOLED: While early AMOLED panels struggled with outdoor visibility, modern high-end models have improved brightness and anti-reflective coatings. However, IPS LCDs still generally have the edge in harsh sunlight.
- IPS LCD: More affordable to manufacture, IPS LCDs are common in budget and mid-range smartphones, laptops, and monitors. Their lower cost makes them accessible to a broad range of consumers.
- Optic AMOLED: Higher production costs, mainly due to the complexity of organic materials and manufacturing processes, mean AMOLED panels are typically reserved for flagship and premium devices. However, as production scales and technology matures, AMOLED displays are gradually making their way into more affordable segments.
- IPS LCD: These panels often use constant backlighting, which can contribute to eye fatigue during prolonged use, especially in low-light environments. However, flicker is generally less pronounced than on some AMOLED panels.
- Optic AMOLED: Some AMOLED screens use Pulse Width Modulation (PWM) to control brightness, which can cause screen flicker at lower brightness levels. This flicker may not be noticeable to everyone, but it can lead to eye strain or discomfort for sensitive users. Manufacturers are increasingly implementing DC dimming and other technologies to mitigate this issue.
- IPS LCD: The manufacturing process for LCDs involves several layers, including glass, liquid crystals, and backlighting components. While durable, LCDs are more challenging to recycle due to the complexity of their construction.
- Optic AMOLED: AMOLED panels use organic materials that are more environmentally friendly in terms of raw material sourcing. However, the shorter lifespan and potential for burn-in may lead to more frequent device replacements, potentially offsetting some sustainability benefits.
| Use Case | IPS LCD | Optic AMOLED |
|---|---|---|
| Professional Design/Editing | ✔ Accurate colors, no burn-in risk | ✘ Colors may be oversaturated |
| Gaming & Media Consumption | ✔ Good, but less vibrant | ✔ Vivid colors, deep blacks |
| Outdoor/Daylight Use | ✔ Brighter, more readable | ✘ May struggle in sunlight |
| Battery Life (Dark Themes) | ✘ Always-on backlight | ✔ Significant power savings |
| Budget Devices | ✔ More affordable | ✘ Usually more expensive |
| Foldable/Innovative Designs | ✘ Rigid, thick | ✔ Flexible, thin, curved possible |
| Eye Comfort (Low Flicker) | ✔ Less flicker at low brightness | ✘ PWM flicker possible |
| Long-Term Reliability | ✔ No organic degradation | ✘ Potential for burn-in, fading |
There is no single winner in the IPS LCD vs Optic AMOLED debate. Each technology offers distinct advantages and trade-offs that cater to different user needs and preferences.
- Choose IPS LCD if you value: accurate and natural color reproduction, long-term durability, better outdoor readability, and a more affordable price point. IPS LCDs are particularly well-suited for professionals, outdoor users, and those looking for reliable performance over many years.
- Choose Optic AMOLED if you want: deep blacks, vibrant and punchy visuals, energy efficiency with dark themes, and innovative device designs such as curved or foldable screens. AMOLED panels are ideal for media enthusiasts, gamers, and users who prioritize aesthetics and battery life.
Both display technologies are evolving rapidly, with improvements in color accuracy, power efficiency, and durability narrowing the gap between them. By understanding the key differences highlighted in this guide, you can make a more informed decision tailored to your specific needs and usage habits.
The main difference lies in how they produce light. IPS LCD uses a backlight that shines through liquid crystals and color filters, while Optic AMOLED has self-emissive pixels that light up individually. This results in differences in color, contrast, thickness, power consumption, and design flexibility.
Optic AMOLED is generally better for battery life, especially when using dark themes or displaying black content, as it can turn off pixels completely to save power. IPS LCD uses more energy because its backlight is always on, regardless of the content displayed.
Yes, Optic AMOLED screens can suffer from burn-in or image retention if static images are displayed for long periods. However, recent advancements in software and hardware have reduced this risk. IPS LCD screens do not have this issue and are more suitable for applications with static content.
IPS LCD screens typically perform better in direct sunlight due to higher brightness and less reflectivity. Optic AMOLED screens can be harder to see outdoors, although premium models have improved brightness and anti-reflective coatings.
AMOLED displays are more expensive to manufacture because of the use of organic materials and more complex production processes. This is why they are often found in flagship and high-end devices, though prices are gradually decreasing as technology matures and production scales up.
