Liquid Crystal Displays (LCDs) are widely used in various applications, including digital watches, calculators, and mobile phones, due to their low power consumption and versatility. One of the fascinating features of LCDs, especially character LCDs like the 16x2 display, is the ability to create custom characters. This article will guide you through the process of forming custom characters on an LCD display, focusing on how to create the letter "Y" as an example.
LCDs work by using liquid crystals to block or allow light to pass through a matrix of pixels. The most common type of LCD used in small projects is the character LCD, which can display letters, numbers, and symbols. These displays typically use a Hitachi HD44780 controller, which allows for a parallel interface to control the display. The HD44780 is a popular choice due to its ease of use and compatibility with microcontrollers like Arduino.
There are several types of LCD displays available, including character LCDs, graphical LCDs, and TFT displays. Character LCDs are the most common for simple text-based applications, while graphical LCDs offer more flexibility for displaying images and complex graphics. TFT displays are used in color applications and provide higher resolution.

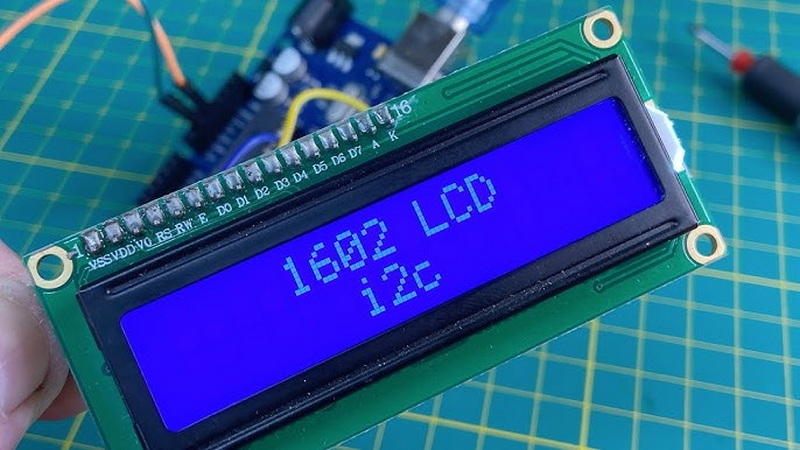

Character LCDs, such as the 16x2 display, allow users to define up to eight custom characters. Each character is represented by a 5x8 pixel matrix, where each pixel can be either on or off. This matrix is used to create the visual representation of the character on the display.
1. Design Your Character:
- Use an online tool or manually create a binary matrix representing your character. For example, to form the letter "Y", you would need to decide which pixels to turn on.
- The letter "Y" can be approximated using a combination of pixels that resemble its shape.
2. Convert to Binary:
- Each row of the 5x8 matrix corresponds to a byte (8 bits). For each pixel, use "1" for on and "0" for off.
- For a simple "Y", you might have something like this for each row:
- Row 1: `00000`
- Row 2: `00000`
- Row 3: `01010`
- Row 4: `00100`
- Row 5: `00100`
- Row 6: `00000`
- Row 7: `00000`
- Row 8: `00000`
3. Upload to LCD:
- Use the `createChar()` function in your Arduino code to upload the character to the LCD's CGRAM (Character Generator RAM).
To illustrate this process, let's consider creating a smiley face :) as a custom character. Here's how you might design it:
- Design: Use a tool or manually create a 5x8 matrix for the smiley face.
- Binary Representation:
- Row 1: `00000`
- Row 2: `00000`
- Row 3: `01010`
- Row 4: `00000`
- Row 5: `01110`
- Row 6: `00000`
- Row 7: `00000`
- Row 8: `00000`

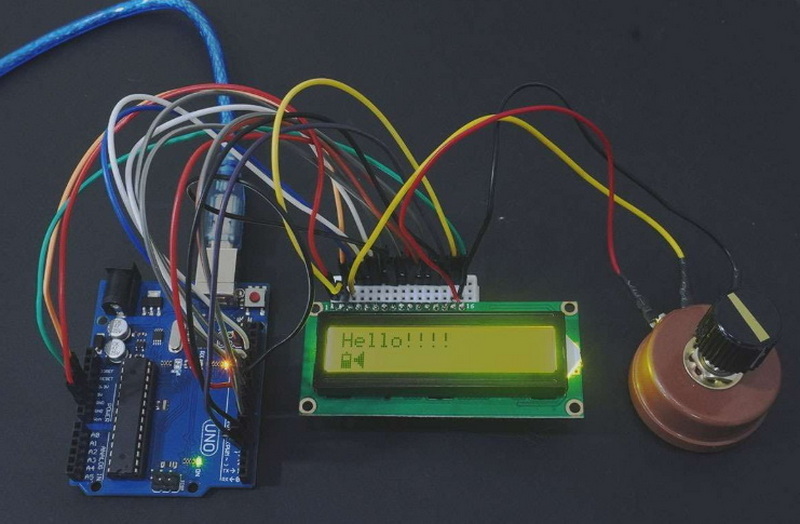

Custom characters can enhance the visual appeal and functionality of your LCD projects. They can be used to display logos, icons, or even simple animations by switching between different custom characters.
Imagine creating a simple weather display where you use custom characters to represent different weather conditions, such as a sun for sunny days or a cloud for rainy days. This can make your project more engaging and user-friendly.
In more complex projects, you might integrate LCD displays with sensors or other components to create interactive systems. For instance, you could use a temperature sensor to display the current temperature using custom characters for degrees Celsius or Fahrenheit.
While creating custom characters is straightforward, there are some limitations and considerations:
- Pixel Limitations: The 5x8 pixel matrix can limit the complexity of your designs. Simple shapes and symbols work best.
- Character Limit: You can only define up to eight custom characters at a time, which might limit your design options.
- Display Orientation: Ensure that your custom characters are designed with the display's orientation in mind, as rotating the display can affect how characters appear.
Creating custom characters on LCD displays is a straightforward process that can add a personal touch to your projects. By understanding how to design and upload these characters, you can unlock a wide range of creative possibilities for your LCD projects. Whether you're building a simple display or a complex interactive system, custom characters can enhance the user experience and make your project stand out.
You can create up to eight custom characters on a typical 16x2 LCD display using its CGRAM.
Each custom character on a character LCD is represented by a 5x8 pixel matrix.
Use the `createChar()` function in your Arduino code to upload custom characters to the LCD's CGRAM.
Yes, you can create and display custom characters with I2C LCD modules using similar methods, though the interface might differ slightly.
No, you can create simple animations by switching between different custom characters.
