In today's digital age, LED and LCD displays are ubiquitous, found in everything from smartphones to large-scale advertising boards. Whether you're a tech enthusiast, a professional in the display industry, or simply someone trying to troubleshoot a faulty screen, understanding how to check and test these displays is crucial. This guide will walk you through the process of checking LED and LCD displays, providing you with the knowledge and tools to diagnose and potentially fix common issues.

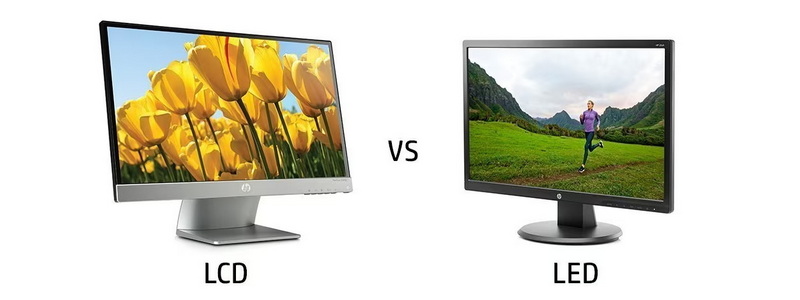

Before diving into the testing procedures, it's essential to understand the fundamental differences between LED and LCD displays:
- LCD (Liquid Crystal Display): These displays use liquid crystals to produce images. They require a backlight, which is typically made of CCFLs (Cold Cathode Fluorescent Lamps) or LEDs.
- LED (Light Emitting Diode) Display: These can refer to two types:
1. LED-backlit LCD displays, which use LEDs as the backlight source.
2. True LED displays, where each pixel is made up of individual LED lights.
The first step in checking any display is a thorough visual inspection:
1. Check for Physical Damage: Look for cracks, scratches, or any signs of impact on the screen surface.
2. Inspect the Bezel and Casing: Ensure there are no gaps or separations in the display's housing.
3. Examine Connections: Check all cable connections, ensuring they are secure and free from damage.
4. Look for Discoloration: Power on the display and look for any areas of discoloration or uneven brightness.
Once you've completed the visual inspection, it's time to test the power and signal:
1. Power Test:
- Ensure the display is receiving the correct voltage.
- Check if the power LED indicator is functioning correctly.
2. Signal Test:
- Connect the display to a known working source.
- Test with different input sources to rule out source-related issues.
To thoroughly check the display quality, perform these tests:
1. Color Test:
- Display full-screen colors (red, green, blue, white, black) to check for color accuracy and uniformity.
- Look for any dead pixels or color inconsistencies.
2. Pixel Test:
- Use pixel testing software or online tools to identify dead or stuck pixels.
- For LED displays, check for any non-functioning LEDs.
For LED displays, particularly large-scale ones, additional tests are necessary:
1. Module Testing:
- Check individual LED modules for brightness and color consistency.
- Ensure all modules are properly aligned and connected.
2. Brightness and Contrast Testing:
- Use a light meter to measure brightness levels across the display.
- Test contrast ratios in different lighting conditions.
3. Viewing Angle Test:
- Check the display from various angles to ensure visibility and color accuracy are maintained.
For LCD displays, consider these advanced testing methods:
1. Backlight Testing:
- Check for even illumination across the screen.
- Look for any flickering or dimming issues.
2. Response Time Testing:
- Use specialized software to measure pixel response times.
- Check for ghosting or blurring in fast-moving images.
3. Burn-in Test:
- Display static images for extended periods to check for image retention or burn-in.
For more accurate results, consider using professional testing equipment:
1. Signal Generators: These devices can produce various test patterns and signals to thoroughly check display performance.
2. Colorimeters and Spectroradiometers: These tools measure color accuracy and calibrate displays for optimal performance.
3. Thermal Imaging Cameras: Useful for identifying hotspots or potential failure points in LED displays.
Several software solutions can help in testing displays:
1. Built-in OS Tools: Both Windows and macOS have built-in display calibration tools.
2. Third-party Software: Programs like DisplayCAL or EIZO Monitor Test can provide comprehensive display tests.
3. Online Testing Tools: Websites like www.testufo.com offer various tests for refresh rate, motion blur, and more.
When checking displays, you might encounter some common issues. Here's how to address them:
1. No Display:
- Check power connections and ensure the device is turned on.
- Verify input source selection.
- Test with a different cable or input source.
2. Flickering or Unstable Image:
- Check cable connections for looseness or damage.
- Update graphics drivers if applicable.
- Adjust refresh rate settings.
3. Color Distortion:
- Recalibrate the display using built-in tools or professional calibration equipment.
- Check color settings in the display menu.
4. Dead Pixels:
- Use pixel refreshing software to attempt revival.
- If under warranty, contact the manufacturer for replacement options.
5. Uneven Brightness:
- For LED displays, check individual LED modules.
- For LCDs, the backlight may need replacement.
To ensure your display continues to perform optimally:
1. Regular Cleaning: Use a soft, lint-free cloth to clean the screen gently.
2. Avoid Static Images: Prevent burn-in by avoiding prolonged display of static images.
3. Proper Ventilation: Ensure adequate airflow around the display to prevent overheating.
4. Calibration: Regularly calibrate your display to maintain color accuracy and overall performance.
5. Software Updates: Keep firmware and drivers up to date for optimal functionality.
Checking LED and LCD displays involves a combination of visual inspection, hardware testing, and software-based diagnostics. By following the steps outlined in this guide, you can effectively assess the health and performance of your display. Remember that while many issues can be diagnosed and sometimes fixed at home, complex problems may require professional assistance.
Regular maintenance and proper usage can significantly extend the life of your display. Whether you're dealing with a small LCD monitor or a large LED video wall, the principles of testing and troubleshooting remain similar. With practice, you'll become more adept at identifying and resolving display issues, ensuring that your visual technology continues to perform at its best.
Professional users should calibrate their displays every 1-3 months, while casual users can do it every 6 months to a year. However, if you notice any color inconsistencies, it's best to calibrate immediately.
Sometimes. Certain software can attempt to revive dead pixels by rapidly cycling through colors. However, if this doesn't work, the pixel may be permanently dead and might require professional repair or display replacement.
Image retention or burn-in occurs when a static image is displayed for extended periods, causing that image to become temporarily or permanently "burned" into the screen. It's more common in OLED and plasma displays but can occur in LCDs as well.
You can use online tools like www.testufo.com or specialized software to test your display's refresh rate. These tools typically show moving patterns that help you visually confirm the actual refresh rate.
While high-quality LED displays strive for uniformity, slight variations can occur due to manufacturing tolerances. However, noticeable differences should be addressed, as they may indicate a problem with individual modules or calibration.
