Changing a mobile LCD display can seem daunting, but with the right tools and guidance, it's a task that can be accomplished by anyone willing to learn[1]. This guide will walk you through the entire process, from preparation to testing your new display.

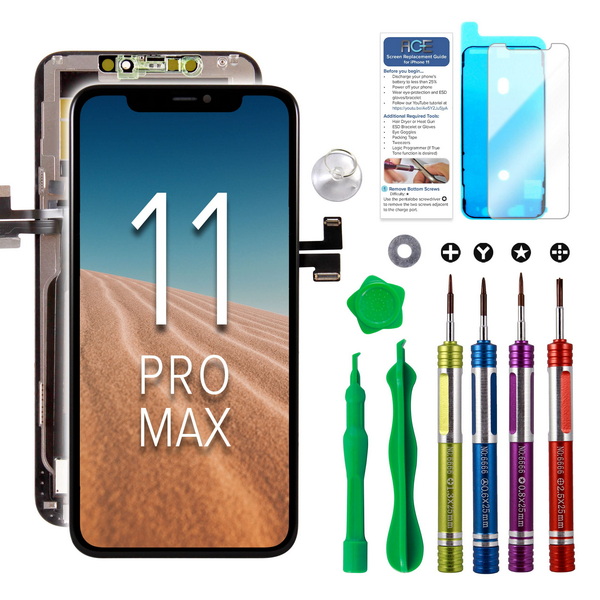

Before you start, gather the following tools and materials:
- Replacement LCD Display: Ensure it is compatible with your phone model[1].
- Screwdriver Set: A set of precision screwdrivers, including Phillips and flathead.
- Plastic Opening Tools: Tools like guitar picks or plastic spudgers to help pry open the phone[1].
- Tweezers: For handling small components.
- Adhesive: Double-sided tape or a suitable adhesive for securing the new screen.
- Heat Gun or Hair Dryer: To soften adhesive on the old screen[1].
- Microfiber Cloth: For cleaning surfaces[1].
- Isopropyl Alcohol: To clean any residue[1].
Before diving into the replacement process, it's essential to understand the structure of your mobile device. Most smartphones consist of several layers:
1. Front Glass: The outer layer that protects the display[3].
2. LCD Display: The actual screen that shows images and responds to touch[3].
3. Digitizer: The layer that detects touch input[3].
4. Back Cover: The rear part of the phone that houses the battery and internal components[1].
Knowing these components will help you understand what you're working with during the replacement process[3].
Always start by powering off your mobile device to prevent any electrical damage or short circuits during the repair process[1].
Depending on your phone model, you may need to remove screws or use a plastic opening tool to gently pry off the back cover. Be cautious not to damage any clips or connectors[1].
Locate the battery connector and gently disconnect it. This step is crucial for ensuring safety while working on your device[1].
1. Apply Heat: Use a heat gun or hair dryer around the edges of the screen to soften the adhesive[1]. This makes it easier to remove without breaking glass shards everywhere[4].

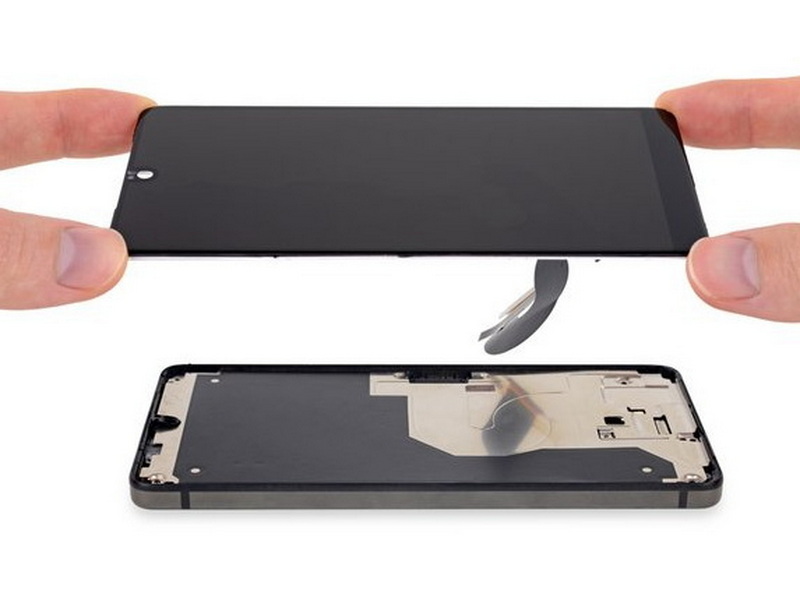

2. Pry Open the Screen: Carefully insert a plastic opening tool between the screen and the frame[1]. Gently slide it around to separate the adhesive without damaging internal components[1].
3. Disconnect Display Cables: Once lifted, locate and disconnect any cables connecting the LCD to the motherboard[1].
After removing the old display, clean any residual adhesive from the frame using isopropyl alcohol and a microfiber cloth[1]. This ensures a smooth surface for attaching the new display[1].
1. Align Connectors: Position the new LCD display in place, ensuring all connectors align correctly with their respective ports on the motherboard[1].
2. Secure Connections: Firmly connect all cables and ensure they are seated properly[1].
3. Adhere Screen: If using adhesive, apply it around the edges of the frame before pressing down on the new screen[1].
1. Reconnect Battery: Once everything is in place, reconnect the battery.
2. Replace Back Cover: Securely attach any screws and snap back any plastic covers[1].
Power on your device and test for functionality. Check for display clarity, touch sensitivity, and any dead pixels. If everything works correctly, congratulations! You've successfully replaced your mobile LCD display[1].
Replacing a mobile LCD display involves several critical steps that require attention to detail. Here's a more in-depth look at each stage:
1. Preparation and Tool Setup:
- Before starting, ensure your workspace is clean and well-lit.
- Gather all necessary tools and materials within easy reach[1].
- Double-check that the replacement screen is compatible with your device model[1].
2. Removing the Damaged Screen:
- Power off the phone to avoid electrical damage[1].
- Apply heat evenly around the screen edges using a heat gun or hair dryer to soften the adhesive[1].
- Use plastic pry tools to gently lift the screen, being careful not to damage internal components[1].
- Disconnect any display cables connected to the motherboard[1].
3. Installing the New Screen:
- Clean the frame to remove any old adhesive[1].
- Align the new screen and connect the cables securely[1].
- Test the screen functionality before fully reassembling the phone[1].
- Secure the screen with adhesive or screws, depending on the phone model[1].
4. Reassembling the Phone:
- Reconnect the battery and any other disconnected components[1].
- Carefully reattach the back cover, ensuring all clips and screws are properly secured[1].
5. Testing the Repaired Screen:
- Turn on the phone and check for smooth touch responsiveness[1].
- Verify clear visuals and proper brightness[1].
- Test all screen functions, including touch sensitivity and color accuracy[1].
While replacing an LCD display can be straightforward, there are common issues that may arise:
1. Screen Not Responding: If your new screen doesn't respond to touch, ensure all connectors are properly seated and check for damage on flex cables.
2. Display Flickering or Distorted Images: This could indicate a faulty replacement screen or improper connections; double-check all connections.
3. Cracked Glass After Installation: Handle all components carefully during installation; if glass cracks during installation, you may need to start over with a new display.
4. Battery Not Charging Properly After Reassembly: Ensure that all connections are secure, especially those related to power management.
To ensure a smooth and successful LCD replacement, consider these additional tips:
- Work in a Clean Environment: Dust and debris can interfere with the installation process.
- Take Your Time: Rushing can lead to mistakes and damage.
- Follow Instructions Carefully: Refer to detailed guides and videos for your specific phone model[1].
- Handle Cables Gently: Flex cables are delicate and can be easily torn.
- Test Before Final Assembly: Always test the screen before fully reassembling the phone[1].
One of the most critical factors in a successful LCD replacement is ensuring compatibility between the replacement screen and your phone model[1]. Using an incompatible screen can lead to various issues, including:
- Screen Malfunction: The screen may not display images correctly or respond to touch.
- Hardware Damage: Incorrect voltage or signal configurations can damage your phone's motherboard.
- Fit Issues: The screen may not physically fit into the phone frame.
Once you've successfully replaced your LCD display, consider these maintenance tips to prolong its life:
- Use a Screen Protector: A high-quality tempered glass protector can prevent scratches and cracks.
- Avoid Extreme Temperatures: Keep your device away from direct sunlight or extreme cold as this can affect performance.
- Regular Cleaning: Use a microfiber cloth regularly to clean fingerprints and smudges without scratching your screen.
- Handle with Care: Always handle your device gently; avoid dropping it or placing heavy objects on top of it.
Deciding whether to replace your LCD display yourself or hire a professional depends on your comfort level and technical skills[1]. Here's a comparison:
| Feature | DIY Repair | Professional Repair |
|---|---|---|
| Cost | Lower (parts only) | Higher (includes labor costs) |
| Time | Can take several hours | Typically faster |
| Skill Level | Requires patience and attention to detail | Requires technical expertise |
| Risk | Potential for damage if not done correctly | Lower risk due to professional experience |
| Warranty | Usually no warranty on parts or labor | May include a warranty on parts and labor |
| Personalized Repair | Complete control over the repair process to fit your preferences1 | Less control over specific parts used |
| Immediate Results | Immediate results; you don’t have to wait for professional service1 | May require waiting for an appointment or repair time |
| Satisfaction | Successfully repairing your phone can be a rewarding experience1 | Peace of mind knowing the repair is done by a professional |
Changing a mobile LCD display can save you money and extend the life of your device[1]. With patience and attention to detail, even beginners can perform this repair successfully[1]. Remember to take your time during each step, ensuring that you handle all components carefully to avoid damage[1]. By following this comprehensive guide, you can confidently tackle this project.
You will need a replacement LCD display, precision screwdrivers, plastic opening tools, tweezers, adhesive, a heat gun or hair dryer, microfiber cloth, and isopropyl alcohol[1].
Yes, many users successfully replace their screens at home by following detailed guides and videos available online[1].
Always check compatibility by confirming your phone model with specifications provided by retailers or manufacturers before purchasing a replacement screen[1].
If your new screen doesn't function properly, double-check all connections are secure and correctly aligned[1]. If issues persist, consider consulting a professional repair service.
Yes, applying gentle heat helps loosen adhesive but be careful not to overheat as this can damage internal components[1].
