Liquid Crystal Displays (LCDs) are incredibly useful components for displaying information in electronic projects. They are widely used in various applications, from simple calculators to sophisticated industrial control systems. Being able to program an LCD display opens up a world of possibilities for creating interactive and informative devices. In this article, you'll learn how to build a programmable LCD display using an Arduino microcontroller. This guide includes step-by-step instructions, hardware, software setup, and helpful tips to get you started.
An LCD is a type of display that uses liquid crystals to produce a visible image. Unlike LED displays, LCDs do not emit light directly. Instead, they rely on an external light source, such as a backlight, to illuminate the display. LCDs are energy-efficient, lightweight, and capable of displaying a wide range of characters and symbols, which makes them ideal for various electronic projects.
There are primarily two types of LCDs used with microcontrollers:
1. Character LCDs: These displays are designed to show alphanumeric characters and a limited set of symbols. A common example is the 16x2 LCD, which can display 16 characters per row across two rows. These are cost-effective and simple to use, making them perfect for beginners. Their standardized interface allows for easy integration with various microcontroller platforms.
2. Graphical LCDs: These are more advanced displays capable of showing custom images and graphics. They consist of a matrix of pixels that can be individually controlled to create complex visuals. These displays are suitable for projects requiring detailed images or custom fonts. However, they typically require more processing power and more complex programming.
In this tutorial, we will focus on character LCDs, specifically the 16x2 LCD, due to its simplicity and ease of use. It provides a good balance between functionality and ease of integration, making it ideal for learning the basics of LCD programming.
Before we begin, let's gather all the necessary components. Here's a list of what you'll need:
1. Arduino Uno: This is the microcontroller that will control the LCD. The Arduino Uno is a popular choice due to its simplicity, extensive documentation, and wide availability of libraries. It's suitable for a wide range of projects and offers a good starting point for beginners.
2. 16x2 LCD Display: This is the display screen that will show the information. Ensure that it is a character LCD with 16 columns and 2 rows. These are widely available and relatively inexpensive, making them a good choice for this tutorial.
3. I2C Module (Optional): This module simplifies the wiring by reducing the number of pins required to connect the LCD to the Arduino. It converts the parallel interface of the LCD to a serial I2C interface, requiring only two data pins (SDA and SCL) for communication.
4. Jumper Wires: These are used to connect the components together. Use male-to-male jumper wires for connecting components on the breadboard.
5. USB Cable: This connects the Arduino to your computer for programming. Use a standard USB Type-A to Type-B cable for connecting the Arduino Uno to your computer.
6. Breadboard: This provides a convenient way to prototype your circuit. Choose a breadboard with sufficient space to accommodate the Arduino, LCD, and other components.
7. 10k Potentiometer: This is used to adjust the contrast of the LCD screen. The potentiometer allows you to fine-tune the visibility of the characters on the LCD by adjusting the voltage applied to the contrast pin.
If you don't have an I2C module, you'll need to connect the LCD directly to the Arduino using multiple jumper wires. This method requires more connections but helps in understanding the fundamental principles of LCD interfacing. Here's how to do it:

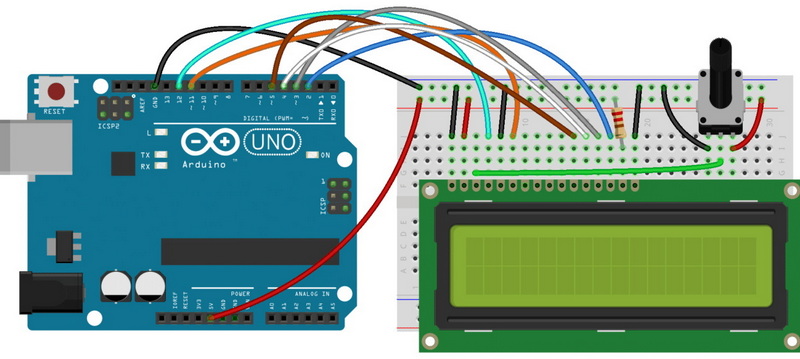

1. Connect the LCD to the Breadboard: Place the LCD on the breadboard for easy wiring. Position it so that you have easy access to all the pins.
2. Connect Power and Ground:
- Connect the LCD's VSS (Ground) pin to the Arduino's GND pin. This provides the common ground reference for the circuit.
- Connect the LCD's VDD (Power) pin to the Arduino's 5V pin. This supplies the necessary power to the LCD.
3. Connect Contrast Adjustment:
- Connect the middle pin of the 10k potentiometer to the LCD's VO (Contrast) pin. The potentiometer acts as a voltage divider, allowing you to adjust the voltage applied to the contrast pin.
- Connect one of the outer pins of the potentiometer to GND and the other to 5V. This completes the potentiometer circuit, allowing you to adjust the voltage.
4. Connect Register Select (RS) Pin: Connect the LCD's RS pin to digital pin 12 on the Arduino. The RS pin controls whether the data being sent to the LCD is interpreted as a command or data.
5. Connect Enable (EN) Pin: Connect the LCD's EN pin to digital pin 11 on the Arduino. The EN pin is used to enable the LCD and latch the data being sent to it.
6. Connect Data Pins:
- Connect the LCD's D4 pin to digital pin 5 on the Arduino.
- Connect the LCD's D5 pin to digital pin 4 on the Arduino.
- Connect the LCD's D6 pin to digital pin 3 on the Arduino.
- Connect the LCD's D7 pin to digital pin 2 on the Arduino. These data pins are used to send the actual data (characters) to the LCD.
Here's a summary of the connections:
- LCD VSS to Arduino GND
- LCD VDD to Arduino 5V
- LCD VO to Potentiometer Middle Pin
- Potentiometer Outer Pin to GND
- Potentiometer Outer Pin to 5V
- LCD RS to Arduino Pin 12
- LCD EN to Arduino Pin 11
- LCD D4 to Arduino Pin 5
- LCD D5 to Arduino Pin 4
- LCD D6 to Arduino Pin 3
- LCD D7 to Arduino Pin 2
Double-check all the connections to ensure that they are correct. Incorrect wiring can lead to malfunctioning or even damage to the components.
Using an I2C module simplifies the wiring process significantly. The I2C module connects to the LCD and then requires only four connections to the Arduino. This is especially useful when you have limited pins available on your Arduino or want to reduce the clutter of wires.
1. Attach the I2C Module to the LCD: Solder or securely connect the I2C module to the back of the 16x2 LCD. Ensure that all pins are properly aligned. Proper soldering is crucial for a reliable connection. Alternatively, you can use header pins for a solderless connection.
2. Connect Power and Ground:
- Connect the I2C module's GND pin to the Arduino's GND pin.
- Connect the I2C module's VCC pin to the Arduino's 5V pin.
3. Connect SDA and SCL:
- Connect the I2C module's SDA (Serial Data) pin to the Arduino's SDA (A4) pin.
- Connect the I2C module's SCL (Serial Clock) pin to the Arduino's SCL (A5) pin. These pins are used for I2C communication between the Arduino and the LCD.
Here's a summary of the connections:
- I2C GND to Arduino GND
- I2C VCC to Arduino 5V
- I2C SDA to Arduino A4
- I2C SCL to Arduino A5
Make sure the connections are secure and that there are no loose wires. A loose connection can cause intermittent issues and make troubleshooting difficult.
To program the Arduino, you'll need the Arduino IDE (Integrated Development Environment). Follow these steps to install it:
1. Download the Arduino IDE: Go to the official Arduino website and download the appropriate version for your operating system. Choose the version that is compatible with your operating system (Windows, macOS, or Linux).
2. Install the IDE: Follow the installation instructions provided on the website. The installation process may vary slightly depending on your operating system.
3. Launch the Arduino IDE: Once installed, open the Arduino IDE. The IDE provides a user-friendly interface for writing, compiling, and uploading code to the Arduino.
The code interacts with the LiquidCrystal library to control the LCD. Firstly, you must define which Arduino pins connect to the LCD's control and data pins, creating a `LiquidCrystal` object. In the `setup()` function, initialize the LCD, setting the dimensions to 16 columns and 2 rows using `lcd.begin(16, 2)`. Then, you can use the `lcd.print()` command to display text on the LCD.
With the I2C module, you include the `Wire.h` for I2C communication and the `LiquidCrystal_I2C.h` library. The LCD address (e.g., `0x27`) is specified, initializing the LCD with `lcd.init()`. Remember to turn on the backlight with `lcd.backlight()`. Use `lcd.print()` to show text on the LCD.
1. Connect Arduino to Computer: Use the USB cable to connect your Arduino to your computer. Ensure that the USB cable is properly connected to both the Arduino and your computer.
2. Select Board and Port: In the Arduino IDE, go to `Tools > Board` and select "Arduino Uno". Then, go to `Tools > Port` and select the port that your Arduino is connected to. The port number may vary depending on your operating system and the number of devices connected to your computer.
3. Upload the Code: Click the "Upload" button (the right arrow icon) to compile and upload the code to your Arduino. The Arduino IDE will compile the code, check for errors, and then upload the compiled code to the Arduino's flash memory.
4. View the Output: If everything is connected correctly, you should see "Hello, World!" displayed on the LCD screen. If the display is blank, adjust the potentiometer to change the contrast.
No Display:
- Check the power connections. Make sure the LCD and I2C module (if used) are properly connected to the 5V and GND pins on the Arduino. Verify the voltage using a multimeter.
- Adjust the contrast using the potentiometer if you are not using an I2C module. Rotate the potentiometer knob to find the optimal contrast setting.
- Verify that the backlight is on. If you are using an I2C module, ensure that the `lcd.backlight()` function is called in the `setup()` function. Some I2C modules have a jumper for controlling the backlight; ensure it's enabled.
- Check the soldering if you've soldered the I2C module. A poor solder joint could cause intermittent connectivity issues.
Incorrect Characters:
- Double-check the wiring. Ensure that all the data and control pins are connected to the correct Arduino pins. Use the wiring diagrams as a reference.
- Make sure you have included the correct library for your setup (`LiquidCrystal.h` or `LiquidCrystal_I2C.h`). Using the wrong library will result in compilation errors or unexpected behavior.
- Verify the LCD initialization in the code. Ensure you've set the correct number of columns and rows using `lcd.begin(16, 2)`.
I2C Address Issues:
- Use an I2C scanner sketch to determine the correct address of your LCD module. The I2C address can vary depending on the manufacturer.
- Ensure that the I2C module is securely connected to the LCD. Check for loose connections or damaged pins.
- Confirm the SDA and SCL pins are correctly connected to A4 and A5, respectively.
Display Flickering:
- Ensure stable power supply to the LCD and Arduino. Voltage fluctuations can cause flickering.
- Add a decoupling capacitor (e.g., 0.1uF) close to the power pins of the LCD to stabilize the voltage.
Once you have the basic "Hello, World!" example working, you can explore more advanced programming techniques to make your LCD display more interactive and useful.
You can display the values of variables on the LCD. This is useful for showing sensor readings, calculated values, or user inputs. To display a variable, you simply use the `lcd.print()` function with the variable name as the argument.
Before printing a variable, it's often useful to clear the LCD screen to remove any previous content. This can be done using the `lcd.clear()` function. Additionally, you can use the `lcd.setCursor(column, row)` function to position the cursor at a specific location on the LCD before printing the variable.
LCDs allow you to create custom characters, which can be useful for displaying symbols or icons not available in the standard character set. Each custom character is defined as an 8x5 pixel matrix. You can create up to eight custom characters.
To create a custom character, you first define an array of eight bytes, where each byte represents a row of pixels. A '1' in the byte represents a lit pixel, and a '0' represents an unlit pixel. Then, you use the `lcd.createChar(location, charmap)` function to store the custom character in the LCD's memory. The `location` argument specifies the memory location (0-7) where the character will be stored, and the `charmap` argument is the array of bytes that defines the character.
Once the custom character is created, you can display it on the LCD using the `lcd.write(byte(location))` function, where `location` is the memory location where the character is stored.
You can scroll text across the LCD screen, which is useful for displaying longer messages that don't fit on the screen at once. There are several ways to scroll text on the LCD. One way is to use the `lcd.scrollDisplayLeft()` and `lcd.scrollDisplayRight()` functions, which scroll the entire display content one position to the left or right, respectively.
Another way is to manually shift the characters in a string and print a portion of the string on the LCD. This involves using string manipulation functions like `substring()` to extract a portion of the string and then printing it on the LCD.
Create a menu system on the LCD to allow users to interact with your project. You can use buttons or other input devices to navigate through the menu options and select different functions. Use the `lcd.clear()` function to clear the screen before displaying each menu option. You can also use the `lcd.setCursor()` function to position the cursor at a specific location on the screen to highlight the selected menu option.
Programmable LCD displays can be used in a wide variety of real-world applications. Here are a few examples:
1. Home Automation: Display temperature, humidity, and other sensor data from home automation systems. Show real-time energy consumption, control lighting and appliances, and display security alerts.
2. Industrial Control: Show status information, process parameters, and error messages in industrial control systems. Monitor machine performance, display production metrics, and provide operator feedback.
3. Weather Stations: Display weather data such as temperature, humidity, wind speed, and direction. Show forecasts, alerts, and historical data.
4. Data Logging: Show real-time data being logged by a microcontroller, such as sensor readings or system performance metrics. Visualize data trends, display statistical summaries, and provide data export options.
5. Interactive Art Installations: Create dynamic and interactive art displays that respond to user input or environmental conditions. Control LEDs, motors, and other actuators, and create immersive and engaging experiences.
6. Gaming Consoles: Output scores, game status, and other information on the LCD.
7. Robotics: Show sensor readings, robot status, and debugging information.
- Use descriptive variable names: Use meaningful names for your variables and functions to make your code easier to understand. This will save you time and effort when debugging or modifying your code later.
- Comment your code: Add comments to explain what your code does. This will help you and others understand your code later. Comments should explain the purpose of each section of code, the meaning of variables, and the logic behind algorithms.
- Keep your code organized: Use indentation and whitespace to make your code more readable. Consistent indentation and whitespace make it easier to follow the structure of your code and identify errors.
- Test your code frequently: Test your code in small increments to make it easier to identify and fix errors. This is known as iterative development, and it helps you catch bugs early in the development process.
- Use version control: Use a version control system like Git to track changes to your code and collaborate with others. Version control allows you to revert to previous versions of your code, track changes, and collaborate with other developers.
- Optimize your code: Optimize your code for performance and memory usage. Efficient code runs faster and consumes less memory, which is especially important for embedded systems with limited resources.
- Use appropriate data types: Choose the appropriate data types for your variables to minimize memory usage and improve performance. For example, use `int` for integer values and `float` for floating-point values.
- Avoid blocking code: Avoid using blocking code that can prevent your program from responding to events. Use non-blocking techniques like interrupts and timers to handle asynchronous events.
In this article, we've covered how to build a programmable LCD display using an Arduino microcontroller. You've learned how to set up the hardware, write the code, and troubleshoot common issues. With this knowledge, you can start building your own interactive and informative devices. Programmable LCD displays are a versatile tool for a wide range of applications, from home automation to industrial control. By following the tips and best practices outlined in this article, you can create robust and maintainable code for your LCD projects. This skillset empowers you to create engaging user interfaces for your electronic projects, providing a clear and concise way to present information and interact with your devices.
The I2C (Inter-Integrated Circuit) module is a small electronic component that simplifies the connection between the LCD and the Arduino. Instead of using multiple pins for data and control signals, the I2C module uses only two pins (SDA and SCL) for communication. This reduces the complexity of the wiring and frees up valuable pins on the Arduino. If you're working on a project where pin availability is limited or you want to simplify the wiring, the I2C module is an excellent choice. It promotes cleaner and more manageable projects, making troubleshooting easier.
Each I2C device has a unique address that the microcontroller uses to communicate with it. The default address for many LCD modules is `0x27`, but it can vary. To find the correct address, you can use an I2C scanner sketch.
Yes, you can display custom characters on the LCD. The LCD has a limited amount of memory for storing custom characters, typically eight characters. To create a custom character, you need to define an 8x5 pixel matrix that represents the character.
Scrolling text on the LCD is useful for displaying longer messages that don't fit on the screen at once. To scroll text, you can use a combination of string manipulation and the `lcd.scrollDisplayLeft()` or `lcd.scrollDisplayRight()` functions.
Yes, you can use an LCD with other microcontrollers besides Arduino. The principles and techniques for interfacing with an LCD are generally the same across different microcontrollers. However, the specific code and libraries may vary depending on the microcontroller platform. For example, if you're using an ESP32, you would use the appropriate ESP32 libraries and adjust the pin definitions accordingly. Always refer to the documentation and examples for your specific microcontroller platform when working with an LCD.
