Liquid Crystal Displays (LCDs) are ubiquitous in modern technology, found in everything from smartphones and televisions to computer monitors and industrial equipment[1][6]. Their ability to produce clear, vibrant images with relatively low power consumption has made them the dominant display technology for decades[3]. Understanding how LCDs work involves delving into the properties of liquid crystals, polarized light, and the intricate engineering that brings these elements together to create the images we see[5].

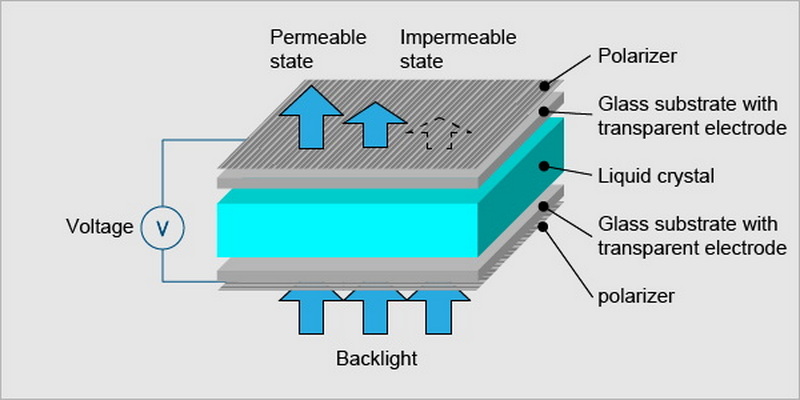

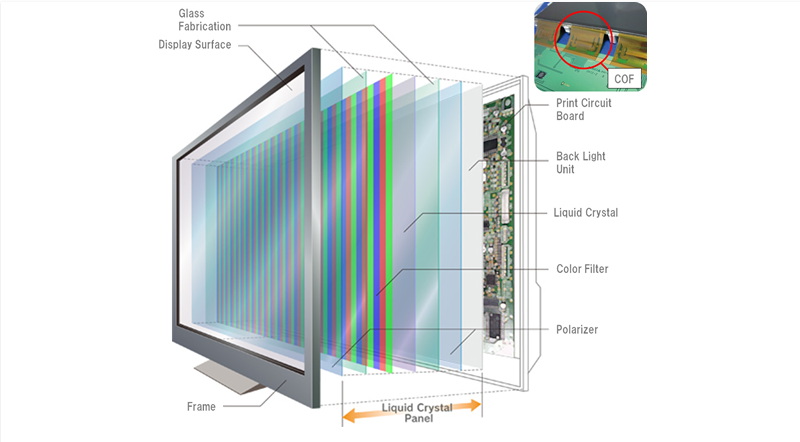

A typical LCD is composed of several key components that work in concert to produce an image[2][5]:
- Backlight: The light source for the display. This can be fluorescent lamps or, more commonly today, LED lights[5][6].
- Polarizing Filters: Two polarizing filters are arranged perpendicular to each other. The first filter polarizes the light entering the display[1]. The second filter blocks or allows the polarized light to pass through, depending on the alignment of the liquid crystals[1].
- Glass Plates with Transparent Electrodes: These plates sandwich the liquid crystal material. Transparent electrodes, often made of indium tin oxide (ITO), provide the electrical interface to control the orientation of the liquid crystals[4].
- Liquid Crystal Layer: This is the heart of the LCD. Liquid crystals are substances that exhibit properties between those of a conventional liquid and a solid crystal. They can be aligned by an electric field[5][6].
- Color Filters: These filters add color to the image. Each pixel is typically composed of three subpixels: red, green, and blue (RGB)[1][3].
- Protective Layer: A glass or plastic layer on top to protect the display[2].
Liquid crystals are the key to the operation of an LCD. These materials have the unique ability to align themselves in a specific direction when an electric field is applied[4][6]. There are several types of liquid crystal materials, each with its own properties:
- Nematic: These are the most common type of liquid crystals used in LCDs. They have a long-range orientational order, meaning the molecules tend to align in a specific direction[4].
- Smectic: These liquid crystals have a layered structure, providing both orientational and positional order[4].
- Cholesteric: Also known as chiral nematic, these liquid crystals have a helical structure[4].

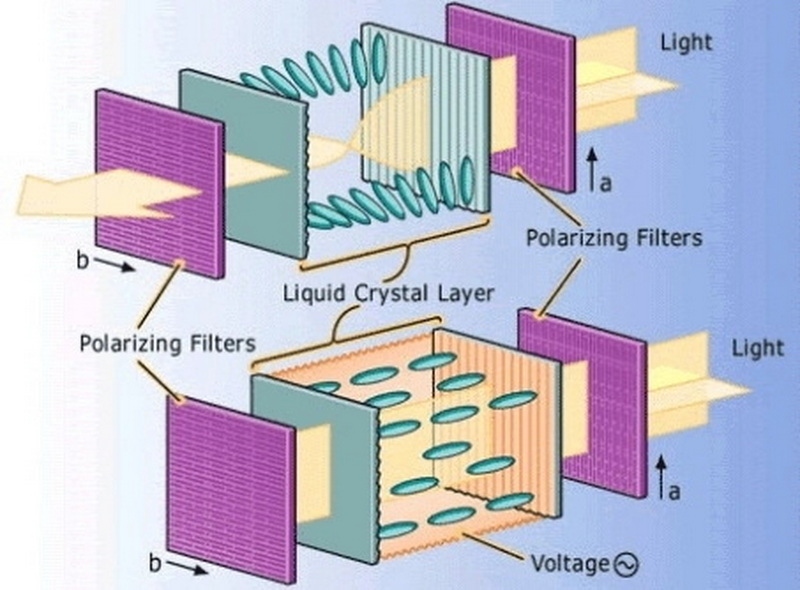

In an LCD, the liquid crystals are carefully aligned between the glass plates. When no electric field is applied, the crystals align in a way that allows light to pass through[4]. When an electric field is applied, the crystals twist or re-orient, blocking the light[1][4]. By controlling the electric field, the amount of light passing through each pixel can be precisely controlled.
Polarization is a fundamental property of light. Light waves are electromagnetic waves that vibrate in all directions perpendicular to their direction of travel. A polarizing filter only allows light waves vibrating in a specific direction to pass through[4].
In an LCD, the two polarizing filters are aligned perpendicular to each other[1]. This means that without the liquid crystals, no light would pass through the display, and the screen would appear dark[4]. The liquid crystals act as a light modulator, changing the polarization of the light so that it can pass through the second filter.
LCDs are made with either a passive matrix or an active matrix display grid[3].
- Passive Matrix LCD: Has a grid of conductors with pixels located at each intersection in the grid. A current is sent across two conductors on the grid to control the light for any pixel[3]. Passive matrix LCDs are less expensive to manufacture but have slower response times and lower contrast[3].
- Active Matrix LCD: Also known as a thin film transistor (TFT) display, has a transistor located at each pixel intersection, requiring less current to control the luminance of a pixel[3]. For this reason, the current in an active matrix display can be switched on and off more frequently, improving the screen refresh time[3]. Active matrix displays offer better image quality and faster response times[3].
LCDs create color images using a system of red, green, and blue (RGB) subpixels[1][3]. Each pixel on the screen is composed of these three subpixels, each with its own color filter[1][9]. By controlling the intensity of light passing through each subpixel, a wide range of colors can be produced[1]. For example, to create a red pixel, the red subpixel is turned on fully, while the green and blue subpixels are turned off[1]. To create white, all three subpixels are turned on fully[1].
The backlight provides the necessary illumination for the display to be visible[1]. There are several types of backlight technologies used in LCDs:
- Fluorescent Lamps: Older LCDs used cold cathode fluorescent lamps (CCFLs) as a backlight[5]. These were relatively inexpensive but had some drawbacks, such as higher power consumption and the need for an inverter[5].
- LED Backlights: Most modern LCDs use LED backlights[5][6]. LEDs offer several advantages over fluorescent lamps, including lower power consumption, longer lifespan, and better color accuracy[6]. LED backlights can be arranged in different ways, such as edge-lit or direct-lit, each with its own advantages and disadvantages[6].
LCDs have several advantages over other display technologies:
- Low Power Consumption: LCDs consume less power than other display technologies like CRTs and plasma displays[3].
- High Brightness and Contrast: LCDs can produce bright, high-contrast images[2].
- Thin and Lightweight: LCDs are relatively thin and lightweight, making them suitable for portable devices[6].
- High Resolution: LCDs can support high resolutions, resulting in sharp and detailed images[2].
However, LCDs also have some disadvantages:
- Limited Viewing Angle: The image quality of an LCD can degrade when viewed from an angle[7].
- Response Time: Older LCDs had slower response times, which could result in motion blur[3].
- Black Levels: LCDs can struggle to produce deep black levels, resulting in a lower contrast ratio[7].
- Backlight Issues: LCDs rely on a backlight, which can be prone to failure[5].
LCD technology has revolutionized the way we interact with visual information. From their humble beginnings to their current state of sophistication, LCDs have become an indispensable part of our daily lives. By understanding the fundamental principles behind how LCDs work, we can better appreciate the engineering marvel that makes these displays possible. As technology continues to evolve, LCDs will likely continue to play a significant role in the future of visual displays.
Liquid crystals are substances that exhibit properties between those of a conventional liquid and a solid crystal. They can be aligned by an electric field, which is the key to how LCDs work[5][6].
Polarizing filters only allow light waves vibrating in a specific direction to pass through. In an LCD, two polarizing filters are aligned perpendicular to each other. The liquid crystals change the polarization of the light so that it can pass through the second filter[1][4].
Active matrix LCDs (TFT) have a transistor at each pixel, providing better image quality and faster response times. Passive matrix LCDs have a grid of conductors and are less expensive but have slower response times and lower contrast[3].
LCDs create color images using a system of red, green, and blue (RGB) subpixels. By controlling the intensity of light passing through each subpixel, a wide range of colors can be produced[1][3].
LED backlights offer several advantages over fluorescent lamps, including lower power consumption, longer lifespan, and better color accuracy[6].
