An LCD I2C module is a liquid crystal display (LCD) that uses the I2C (Inter-Integrated Circuit) communication protocol. This protocol allows multiple devices to communicate over just two wires, significantly simplifying wiring and reducing the number of pins required on a microcontroller.

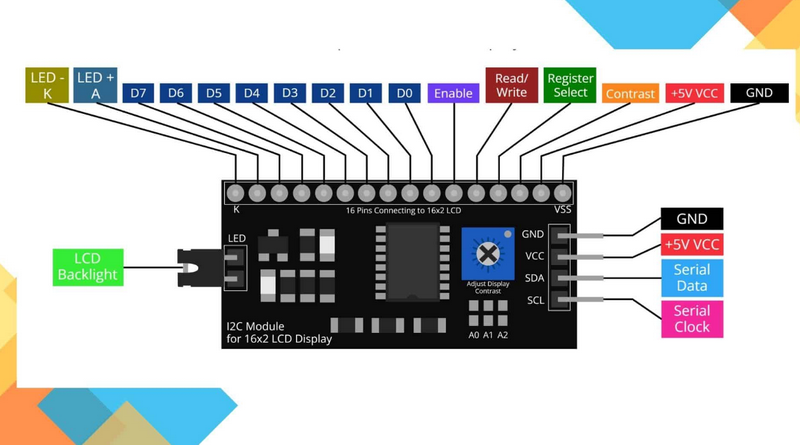

- Reduced Pin Usage: Traditional LCDs require multiple pins (typically 6 to 14) for data and control signals. In contrast, an I2C module typically only requires four connections: VCC, GND, SDA (data line), and SCL (clock line).
- Easy Integration: The I2C protocol allows for easy connection to various microcontrollers like Arduino, ESP32, and Raspberry Pi. Libraries such as `LiquidCrystal_I2C` simplify coding and initialization.

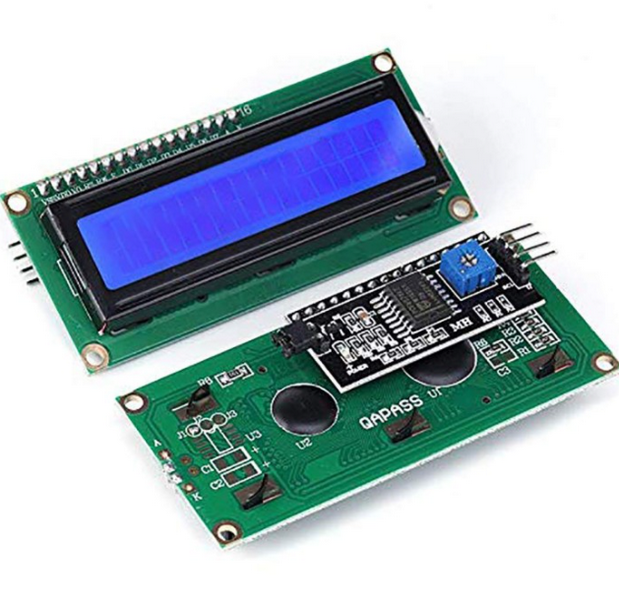

- Adjustable Contrast and Backlight: Most I2C LCD modules come with built-in potentiometers for contrast adjustment and backlight control, allowing users to customize visibility based on their environment.
- Multiple Device Support: You can connect multiple I2C devices on the same bus without conflict by assigning different addresses to each device.
One of the most significant advantages of using an LCD I2C module is the simplicity it brings to wiring. By utilizing only four wires instead of several, it reduces clutter and makes prototyping easier. This is particularly beneficial for beginners who may find traditional wiring daunting.
Microcontrollers often have a limited number of input/output pins. By using an I2C module, you free up valuable pins for other components in your project. This is especially important in complex projects where multiple sensors and actuators are used.
The availability of libraries like `LiquidCrystal_I2C` allows users to control the display with minimal code.
I2C modules often support various display types beyond simple text output. They can handle graphics, custom characters, and even images when paired with appropriate software tools. This versatility makes them suitable for a wide range of applications from simple readouts to more complex user interfaces.
LCD I2C modules are generally inexpensive compared to other display technologies like OLED or TFT screens. Their low cost combined with their functionality makes them an ideal choice for many DIY projects.
LCD I2C modules are widely used in various applications due to their versatility:
- Arduino Projects: Commonly used in Arduino projects to display sensor readings, system statuses, or menus.
- Home Automation: Used in smart home devices to provide user feedback or control options.
- Industrial Applications: Employed in machinery for monitoring processes or displaying operational data.
- Educational Tools: Ideal for teaching electronics concepts due to their simplicity and ease of use.
Setting up an LCD I2C module involves several straightforward steps:

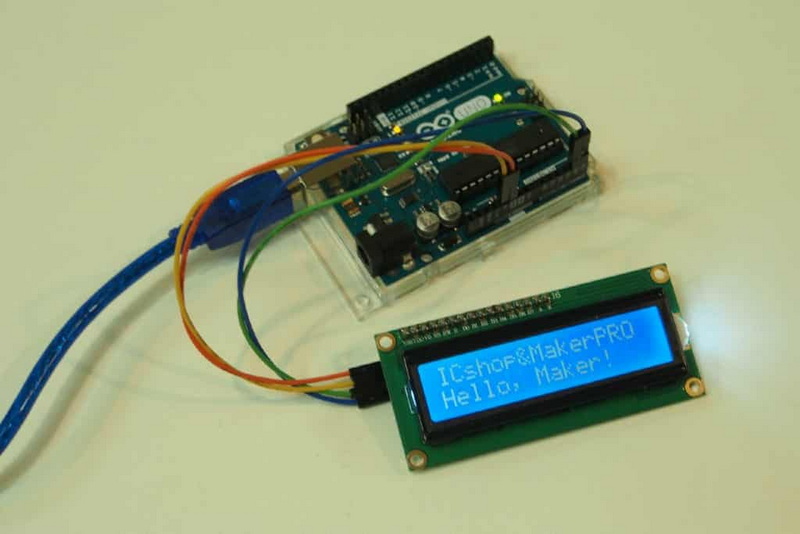

1. Wiring: Connect the module's VCC pin to the power supply (usually 5V), GND to ground, SDA to the data pin on your microcontroller (often A4 on Arduino Uno), and SCL to the clock pin (often A5 on Arduino Uno).
2. Library Installation: Ensure you have the `LiquidCrystal_I2C` library installed in your Arduino IDE.
3. Code Upload: Use example sketches provided in the library or write your own code to initialize the display and send data.
4. Adjust Contrast: If necessary, adjust the contrast using the onboard potentiometer until text becomes clearly visible.
The LCD I2C module offers numerous benefits that make it an excellent choice for displaying information in electronic projects. Its simplified wiring requirements, efficient use of microcontroller resources, ease of programming, enhanced capabilities, and cost-effectiveness make it particularly appealing for both beginners and experienced developers alike.
In summary:
- Reduced wiring complexity
- Efficient use of pins
- Easy programming with available libraries
- Versatile application across various fields
- Cost-effective solution for displays
As technology continues to evolve, LCD I2C modules remain a staple in many electronic projects due to their reliability and ease of use.
An I2C module is a communication interface that allows multiple devices to communicate over two wires (SDA and SCL). It simplifies connections between components like sensors and displays by reducing pin usage.
You can find the I2C address by using an I2C scanner sketch available online or through Arduino libraries that can detect connected devices on the bus.
Yes, multiple LCDs can be connected using one Arduino by assigning different addresses to each display within the same I2C bus.
Common sizes include 16x2 (16 characters per line across two lines) and 20x4 (20 characters per line across four lines). Other sizes are also available depending on project needs.
Most LCD I2C modules have a potentiometer on their back that allows users to adjust contrast by turning it clockwise or counterclockwise until desired visibility is achieved.
