The I2C LCD display module has become a popular choice among hobbyists and professionals alike for displaying information in various electronic projects. This article explores the numerous benefits of using an I2C LCD display module, its applications, setup instructions, and answers to frequently asked questions.
An I2C LCD display module is a liquid crystal display that utilizes the Inter-Integrated Circuit (I2C) communication protocol. This protocol allows for communication between multiple devices using just two wires, significantly simplifying connections in electronic projects.
- Reduced Wiring Complexity: Unlike traditional LCDs that require multiple pins for data and control signals, an I2C module typically requires only four connections: VCC, GND, SDA (data line), and SCL (clock line).
- Easy Integration: The I2C protocol facilitates straightforward connections with various microcontrollers like Arduino, ESP32, and Raspberry Pi. Libraries such as `LiquidCrystal_I2C` make coding simple and efficient.
- Adjustable Contrast and Backlight: Most I2C LCD modules come with built-in potentiometers for contrast adjustment and backlight control, allowing users to customize visibility based on their environment.
- Multiple Device Support: You can connect several I2C devices on the same bus without conflict by assigning different addresses to each device.
The advantages of incorporating an I2C LCD display module into your projects are manifold:
Using an I2C LCD display module reduces the number of wires needed for connections. This not only minimizes clutter but also makes it easier for beginners to prototype their ideas without getting overwhelmed by complex wiring.
Microcontrollers often have a limited number of input/output pins. By utilizing an I2C module, you free up valuable pins for other components in your project. This is particularly beneficial in complex projects where multiple sensors and actuators are involved.
The availability of libraries like `LiquidCrystal_I2C` allows users to control the display with minimal code. This ease of programming makes it accessible for those who may not have extensive coding experience.
I2C LCD modules can handle not just text output but also graphics and custom characters when paired with appropriate software tools. This versatility makes them suitable for a wide range of applications from simple readouts to more complex user interfaces.
Compared to other display technologies like OLED or TFT screens, I2C LCD modules are generally more affordable. Their low cost combined with their functionality makes them an ideal choice for many DIY projects.
I2C LCD modules are widely used across various fields due to their versatility:
- Arduino Projects: Commonly used in Arduino projects to display sensor readings, system statuses, or menus.
- Home Automation: Employed in smart home devices to provide user feedback or control options.
- Industrial Applications: Utilized in machinery for monitoring processes or displaying operational data.
- Educational Tools: Ideal for teaching electronics concepts due to their simplicity and ease of use.
Setting up an I2C LCD module involves several straightforward steps:
1. Wiring: Connect the module's VCC pin to the power supply (usually 5V), GND to ground, SDA to the data pin on your microcontroller (often A4 on Arduino Uno), and SCL to the clock pin (often A5 on Arduino Uno).
2. Library Installation: Ensure you have the `LiquidCrystal_I2C` library installed in your Arduino IDE. You can do this through the Library Manager by searching for `LiquidCrystal_I2C`.
3. Code Upload: Use example sketches provided in the library or write your own code to initialize the display and send data.
4. Adjust Contrast: If necessary, adjust the contrast using the onboard potentiometer until text becomes clearly visible.
The I2C LCD display module offers numerous benefits that make it an excellent choice for displaying information in electronic projects. Its simplified wiring requirements, efficient use of microcontroller resources, ease of programming, enhanced capabilities, and cost-effectiveness make it particularly appealing for both beginners and experienced developers alike. As technology continues to evolve, these modules remain a staple in many electronic projects due to their reliability and ease of use.
You can find the I2C address by using an I2C scanner sketch available online or through Arduino libraries that can detect connected devices on the bus.
Yes, multiple I2C LCDs can be connected using one Arduino by assigning different addresses to each display within the same I2C bus.

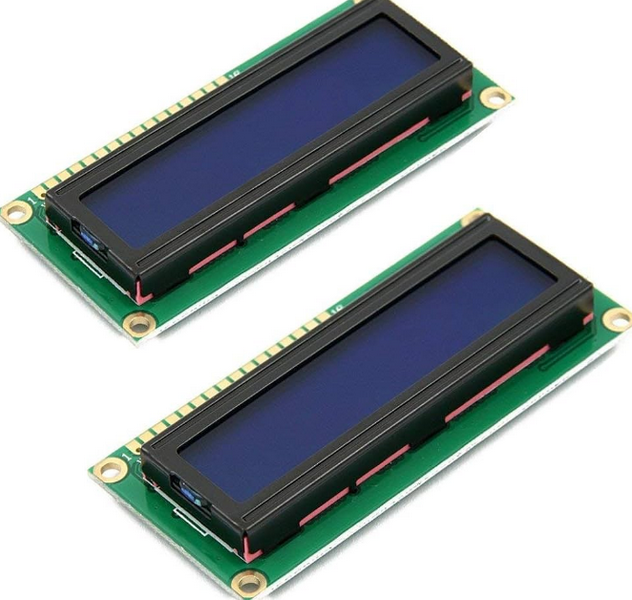

Common sizes include 16x2 (16 characters per line across two lines) and 20x4 (20 characters per line across four lines). Other sizes are also available depending on project needs.
Yes, many modules allow you to control the backlight either through a dedicated pin or via software commands depending on how they are wired.
Most I2C LCD modules operate at 5V; however, some versions may support 3.3V systems as well.
