The Qwiic OLED screen is a popular choice for makers and developers due to its compact size, crisp display, and ease of use with the Qwiic ecosystem. One common requirement when working with OLED displays is the ability to rotate the screen content to suit different mounting orientations or user preferences. This article provides an in-depth guide on how to code a Qwiic OLED screen to rotate, including practical examples, code snippets, visual demonstrations, and answers to frequently asked questions.

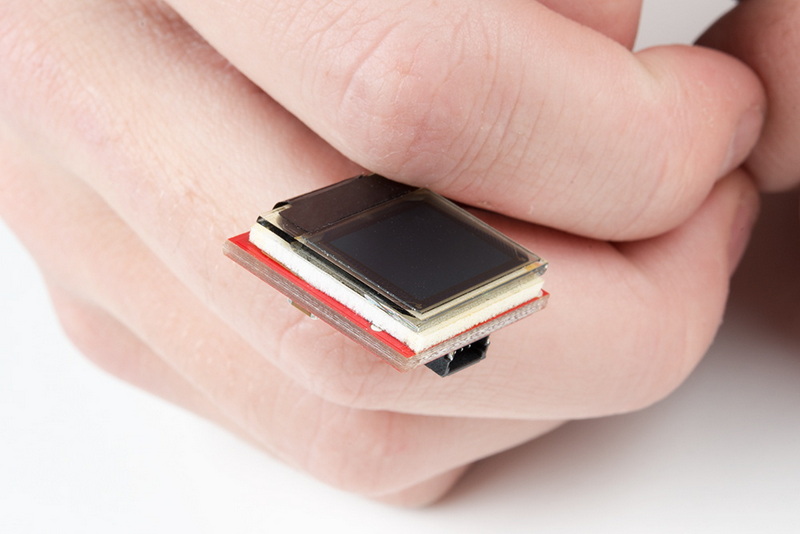

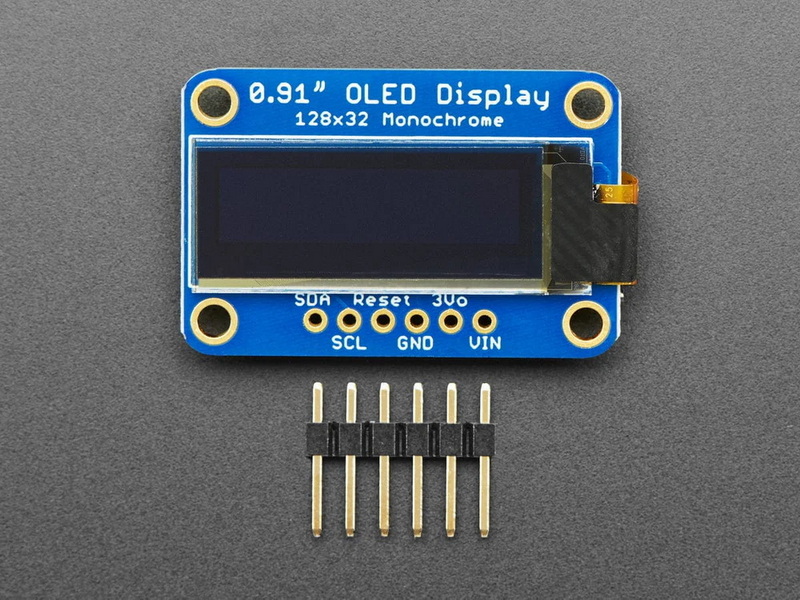

The Qwiic OLED screen, often based on the SSD1306 display controller, typically comes in sizes like 128x32 or 128x64 pixels. It communicates via I2C and is widely supported by libraries such as SparkFun's Qwiic OLED Arduino Library and Python libraries like luma.oled.
- Physical mounting orientation: Sometimes the display is mounted upside down or sideways, making the default orientation inconvenient.
- User interface design: Rotating the display can improve readability or aesthetics, especially in compact devices or wearables.
- Dynamic content presentation: Some projects require changing the display orientation programmatically to enhance user experience or adapt to device movement.
Rotation can be achieved by:
- Using built-in library functions to flip or rotate the display content.
- Manipulating the graphics buffer before sending it to the display.
- Physically rotating the display (less flexible and not programmable).
Understanding these methods is crucial for selecting the right approach based on your project's needs.
Before coding for rotation, ensure your OLED screen is properly connected and initialized.
- Connect the Qwiic OLED screen to your microcontroller via the Qwiic I2C connectors, which simplify wiring with plug-and-play connectors.
- Ensure your power supply matches the OLED screen's voltage requirements, typically 3.3V or 5V depending on your microcontroller and display model.
- Double-check the I2C address of your OLED screen, as some variants use different default addresses (commonly 0x3C or 0x3D).
Initialize the display using the appropriate library for your hardware. This step sets up the communication and prepares the screen for drawing.
The SparkFun library provides convenient functions to flip the display vertically or horizontally, which effectively rotates the screen by 180 degrees when combined.
cpp:
oled.flipVertical(true); // Flip display vertically
oled.flipHorizontal(true); // Flip display horizontally
oled.display(); // Refresh display to apply changes
This method is straightforward and requires minimal code changes. To revert the rotation, simply set the flip parameters to false.
If you use an OLED library based on Adafruit GFX, you can rotate the display by setting rotation values from 0 to 3, corresponding to 0°, 90°, 180°, and 270° rotations respectively.
cpp:
display.setRotation(2); // Rotate 180 degrees
display.display();
Note that this function may not be supported by all Qwiic OLED libraries, so verify compatibility before using.
For advanced users, another approach is to manipulate the graphics buffer directly. This involves creating a rotated copy of the pixel data before sending it to the display. While this method offers flexibility to rotate by arbitrary angles, it requires more processing power and complex code.
The SparkFun Micro OLED library also supports scrolling functions that can be combined with rotation to create dynamic effects.
cpp:
oled.scrollRight(0, 15); // Scroll screen right from row 0 to 15
oled.scrollStop(); // Stop scrolling
When the display is rotated, scrolling directions may need adjustment to maintain expected behavior.
Here is a simple Arduino sketch that demonstrates rotating the screen by flipping vertically and horizontally. The text "Hello, World!" is displayed first in the default orientation, then the screen is rotated 180 degrees.
Python developers working with Raspberry Pi can rotate the Qwiic OLED screen easily using the luma.oled library. When initializing the device, the `rotate` parameter can be set to rotate the display by 0, 90, 180, or 270 degrees.
Understanding how rotation affects the display orientation is essential for designing user interfaces. The four main rotation states correspond to multiples of 90 degrees:
Rotation Value | Degrees Rotated | Description | Effect on Display Orientation |
---|---|---|---|
0 | 0° | Default orientation | Text and graphics appear upright |
1 | 90° clockwise | Rotate right | Display content rotated to right |
2 | 180° | Upside down | Display content flipped upside down |
3 | 270° clockwise | Rotate left | Display content rotated to left |
Choosing the correct rotation depends on how the OLED screen is physically mounted and the desired user experience.
- Always refresh the display after rotation: After applying any flip or rotation commands, call the display update function to ensure changes appear.
- Clear the display buffer when changing orientation: This prevents ghosting or residual artifacts from previous content.
- Test rotation on your specific hardware: Different OLED models or library versions might behave slightly differently.
- Consider performance impacts: Rotation by buffer manipulation can be CPU-intensive on low-power microcontrollers.
- Combine rotation with scrolling carefully: Scrolling directions may need adjustment when the display is rotated to maintain intuitive behavior.
- Display content appears mirrored or inverted: Check if both vertical and horizontal flips are applied simultaneously; toggling one or both may fix orientation.
- Text or graphics are clipped after rotation: Ensure the drawing coordinates are adjusted to the new orientation and within display bounds.
- Rotation commands have no effect: Verify that the library you are using supports rotation or flipping functions.
- Flickering or ghosting after rotation: Clear the display buffer before redrawing content and update the display properly.
Rotating a Qwiic OLED screen is a fundamental skill for developers working with embedded displays. Whether you need to adjust for physical mounting constraints or enhance user interface design, rotation can be easily achieved using built-in library functions or by manipulating the graphics buffer. The SparkFun Qwiic OLED library offers straightforward flipping functions, while libraries like Adafruit GFX and luma.oled provide rotation options for Arduino and Python environments respectively. By understanding the rotation methods, best practices, and troubleshooting tips shared in this guide, you can confidently implement display rotation in your projects, creating flexible and visually appealing interfaces.
Use the SparkFun Micro OLED library's `flipVertical(true)` and `flipHorizontal(true)` functions together, then call `display()` to apply the rotation.
Yes, if your OLED library is based on Adafruit GFX, you can use the `setRotation()` function with values from 0 to 3 to rotate the display by 0°, 90°, 180°, or 270°.
Some library versions may require you to clear and redraw the display buffer after flipping. Make sure to call `clear()` and `display()` appropriately.
Yes, scrolling functions like `scrollRight()` or `scrollLeft()` can be combined with rotation for dynamic visual effects, but scrolling directions may need adjustment.
Use the `rotate` parameter when initializing the OLED device in the luma.oled library, for example, `rotate=2` will rotate the display by 180 degrees.
