The 16x2 LCD display is one of the most popular and versatile modules used in electronics projects, especially with microcontrollers like Arduino and Raspberry Pi. It is a simple alphanumeric display capable of showing 16 characters per line on 2 lines, making it ideal for displaying text, numbers, and simple symbols. This article will guide you through the process of turning on and using a 16x2 LCD display, covering pin configuration, wiring, initialization, troubleshooting, and practical tips. We will also include images and videos to help you visualize each step.
A 16x2 LCD (Liquid Crystal Display) consists of two rows, each capable of displaying 16 characters. Each character is formed by a 5x7 pixel matrix. These LCDs are widely used in embedded systems to provide user feedback or display sensor data.
- Displays 32 characters (16 per line, 2 lines)
- Uses liquid crystals controlled by an integrated controller (usually HD44780 compatible)
- Requires a 5V power supply
- Has a contrast adjustment pin
- Supports 4-bit or 8-bit data communication modes
- Backlight for better visibility
The LCD module typically has 16 pins, each serving a specific function:
| Pin Number | Name | Function |
|---|---|---|
| 1 | VSS | Ground (0V) |
| 2 | VCC | Power supply (5V) |
| 3 | VO | Contrast adjustment (connect to potentiometer) |
| 4 | RS | Register Select (0 = command, 1 = data) |
| 5 | RW | Read/Write (0 = write, 1 = read) |
| 6 | EN | Enable signal to latch data |
| 7-14 | D0-D7 | Data pins (used to send data/commands) |
| 15 | LED+ | Backlight LED positive (5V) |
| 16 | LED- | Backlight LED ground |
The RS pin selects whether the LCD interprets the incoming data as a command or display data. The RW pin is usually grounded because most applications only write to the LCD. The Enable (EN) pin is used to tell the LCD when to read the data lines.
- Connect Pin 1 (VSS) to Ground.
- Connect Pin 2 (VCC) to +5V power supply.
- Connect Pin 3 (VO) to the middle pin of a 10K potentiometer; connect the other ends of the potentiometer to +5V and Ground. This allows you to adjust the contrast.
- Connect Pin 4 (RS) to a microcontroller digital pin (e.g., Arduino pin 12).
- Connect Pin 5 (RW) to Ground (write mode).
- Connect Pin 6 (EN) to a microcontroller digital pin (e.g., Arduino pin 11).
- Connect Pins 7-10 (D0-D3) optionally if using 8-bit mode; for 4-bit mode, these are usually left unconnected.
- Connect Pins 11-14 (D4-D7) to microcontroller digital pins (e.g., Arduino pins 5, 4, 3, 2).
- Connect Pin 15 (LED+) to +5V (for backlight).
- Connect Pin 16 (LED-) to Ground.

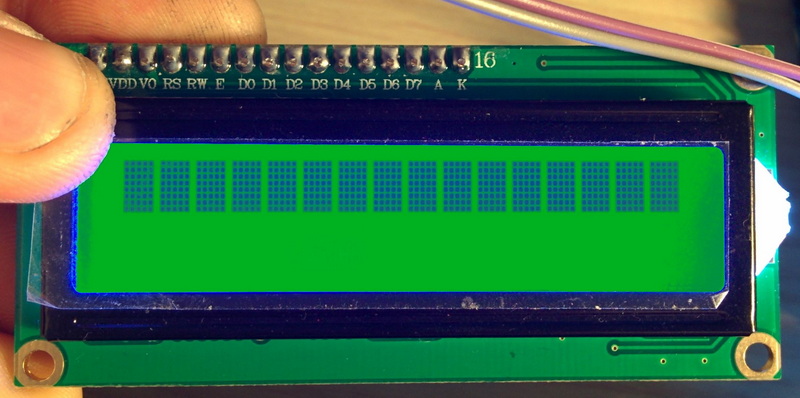

Once wired, power on the circuit. Adjust the potentiometer connected to VO until you see blocks or characters on the LCD screen. If the screen is blank, try turning the potentiometer slowly until the text appears.

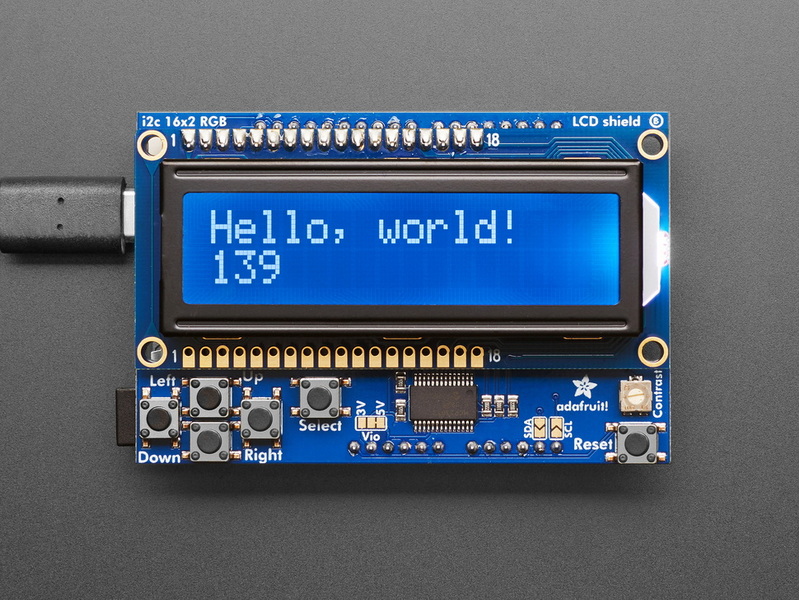

To turn on the LCD and display characters, you need to initialize it by sending specific commands. This is usually done via a microcontroller using libraries such as Arduino's LiquidCrystal library.
Important commands include:
| Command | Hex Code | Description |
|---|---|---|
| Clear Display | 0x01 | Clears the entire screen |
| Return Home | 0x02 | Moves cursor to home position |
| Display On/Off | 0x0C | Turns display on, cursor off |
| Cursor On/Off | 0x0E | Turns cursor on, blinking |
| Set Cursor Pos | 0x80 | Sets cursor to beginning of line 1 |
| Function Set | 0x38 | 2 lines, 5x7 matrix |
The initialization sequence typically involves sending the Function Set command, turning the display on, clearing the screen, and setting the entry mode.

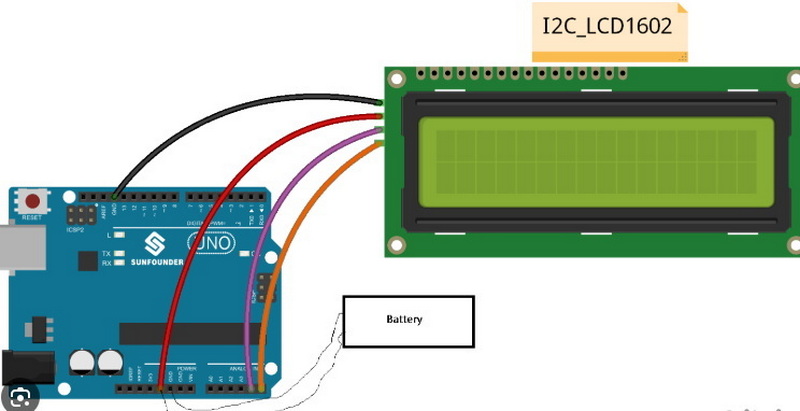

Although this article does not include code, the general steps to turn on and use a 16x2 LCD with Arduino are:
1. Include the LiquidCrystal library.
2. Define the pins connected to RS, EN, D4-D7.
3. Initialize the LCD with `lcd.begin(16, 2)`.
4. Use `lcd.print()` to display text.
5. Adjust contrast with the potentiometer.
A detailed tutorial with wiring and code examples is available in many online resources and videos.
- Check the contrast potentiometer connection to pin 3 (VO).
- Ensure proper grounding and power supply.
- Verify all wiring connections, especially RS, EN, and data pins.
- Sometimes the LCD controller is not receiving instructions; check the microcontroller code and wiring.
- Check connections to pins 15 (LED+) and 16 (LED-).
- Confirm power supply voltage.
- Some LCDs may require a resistor in series with the backlight.
- Contrast may be too high or low; adjust the potentiometer.
- Initialization commands not sent correctly.
- Wiring errors or loose connections.
- Some Arduino boards require a delay before initializing the LCD.
- Add a delay (e.g., 15-20ms) in the setup function before `lcd.begin()`.
- Check for hardware compatibility issues.
Turning on and using a 16x2 LCD display involves understanding its pin configuration, wiring it correctly, adjusting the contrast, and initializing it through software commands. With proper setup, this display can be a powerful tool for showing information in embedded projects. Troubleshooting common issues like blank screens or inconsistent backlight can often be resolved by checking connections and adjusting contrast. Utilizing available libraries and tutorials simplifies the process, making the 16x2 LCD an accessible component for beginners and experts alike.
Connect a 10K potentiometer to pin 3 (VO) of the LCD, with the other ends connected to +5V and Ground. Turning the potentiometer adjusts the voltage on VO, changing the contrast until the display is readable[1][2].
Yes, some tutorials show how to use a fixed resistor or set a fixed voltage on VO to avoid using a potentiometer, but this reduces flexibility in adjusting contrast[6].
4-bit mode uses only 4 data pins (D4-D7) to send data in two steps, saving microcontroller pins. 8-bit mode uses all 8 data pins (D0-D7) and sends data in one step. 4-bit mode is more common in microcontroller projects[1][7].
This usually indicates the LCD is not receiving proper initialization commands or the contrast is set incorrectly. Check wiring, especially pin 3 (VO), and ensure the microcontroller code initializes the LCD properly[4].
Connect pin 15 (LED+) to +5V and pin 16 (LED-) to Ground. Some LCDs may require a current-limiting resistor. Ensure your power source can supply enough current for the backlight[1][10].
